Hot sale Original IDT74FCT3244APYG IC Bus Driver FCT Series 2-Func 4-Bit True Output CMOS PDSO20 GREEN SSOP-20
Manufacturer Product Number
IDT74FCT3244APYG
Description
IDT74FCT3244APYG IC Bus Driver FCT Series 2-Func 4-Bit True Output CMOS PDSO20 GREEN SSOP-20
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

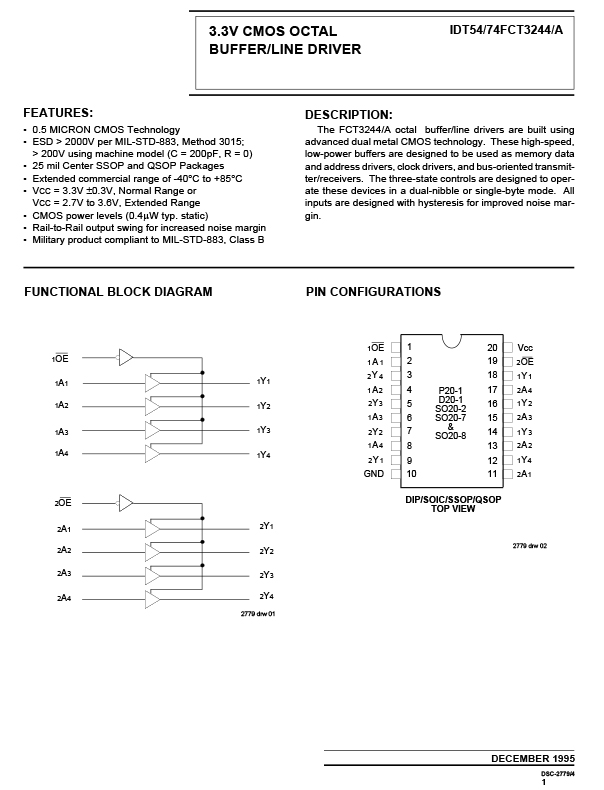

DESCRIPTION:
The FCT3244/A octal buffer/line drivers are built using advanced dual metal CMOS technology. These high-speed, low-power buffers are designed to be used as memory data and address drivers, clock drivers, and bus-oriented transmitter/receivers. The three-state controls are designed to operate these devices in a dual-nibble or single-byte mode. All inputs are designed with hysteresis for improved noise margin.
FEATURES:
• 0.5 MICRON CMOS Technology
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC= 3.3V ±0.3V, Normal Range
• VCC= 2.7V to 3.6V, Extended Range
• CMOS power levels (0.4μW typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in QSOP, SOIC, SSOP, and TSSOP packages
Product Description
| Type# | Description |
| ANSC PART# | ANSC- IDT74FCT3244APYG |
| Part Package Code | SSOP |
| Package Description | Ssop, Ssop20,.3 |
| Pin Count | 20 |
| Date Of Intro | 1988/1/1 |
| Additional Feature | Inputs Can Be Driven By 3.3v Or 5v Components |
| Control Type | Enable Low |
| Family | Fct |
| JESD-30 Code | R-PDSO-G20 |
| JESD-609 Code | e3 |
| Length | 7.2 Mm |
| Load Capacitance (CL) | 50 Pf |
| Logic IC Type | Bus Driver |
| Max I(ol) | 0.024 A |
| Moisture Sensitivity Level | 1 |
| Number of Bits | 4 |
| Number of Functions | 2 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Output Characteristics | 3-State |
| Output Polarity | TRUE |
| Package Body Material | Plastic/Epoxy |
| Package Code | SSOP |
| Package Equivalence Code | SSOP20,.3 |
| Package Shape | Rectangular |
| Package Style | Small Outline, Shrink Pitch |
| Peak Reflow Temperature (Cel) | 260 |
| Prop. Delay@Nom-Sup | 4.8 Ns |
| Propagation Delay (tpd) | 4.8 Ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2 Mm |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Supply Voltage-Min (Vsup) | 2.7 V |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Surface Mount | Yes |
| Technology | Cmos |
| Temperature Grade | Industrial |
| Terminal Finish | Matte Tin (Sn) - Annealed |
| Terminal Form | Gull Wing |
| Terminal Pitch | 0.65 Mm |
| Terminal Position | Dual |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 5.3 Mm |

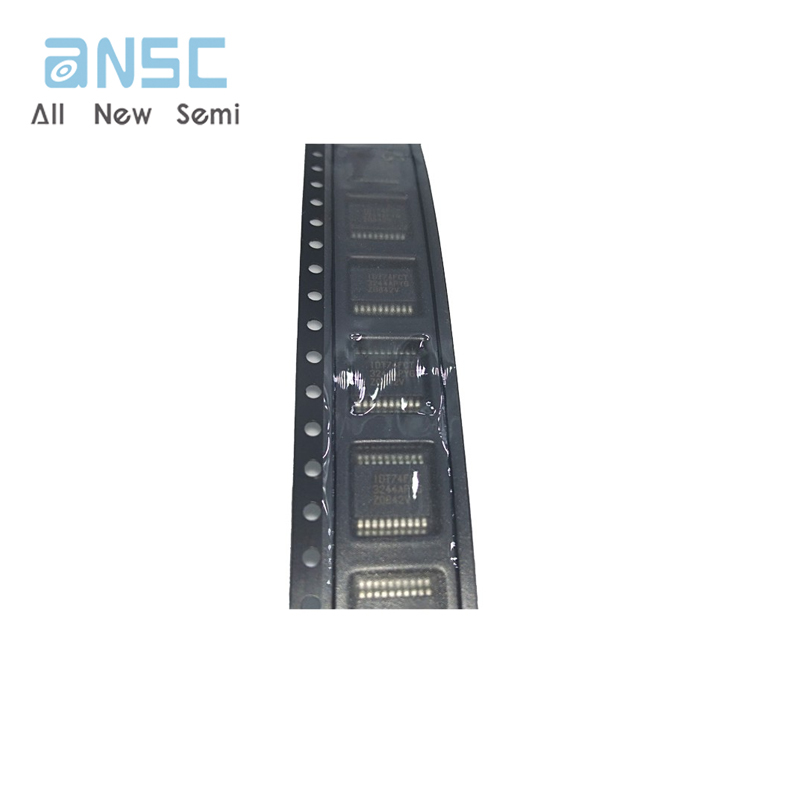

Actual image of the product

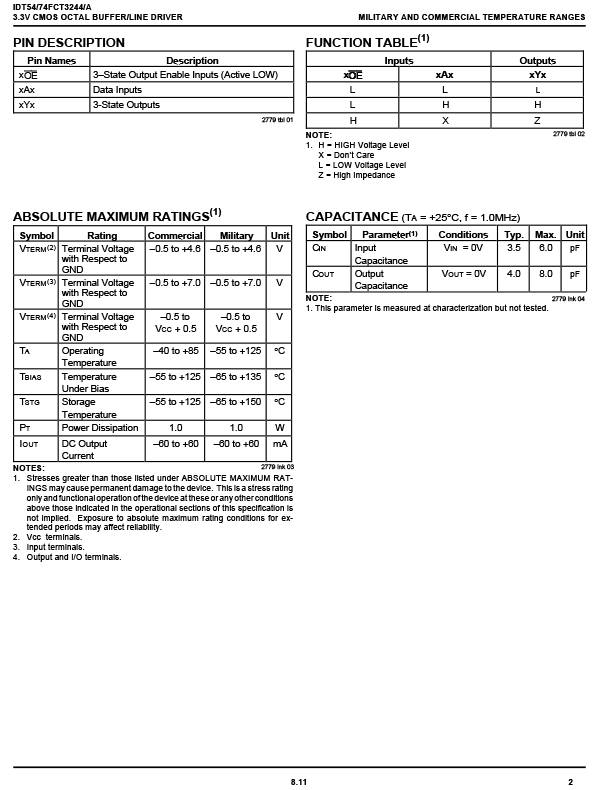

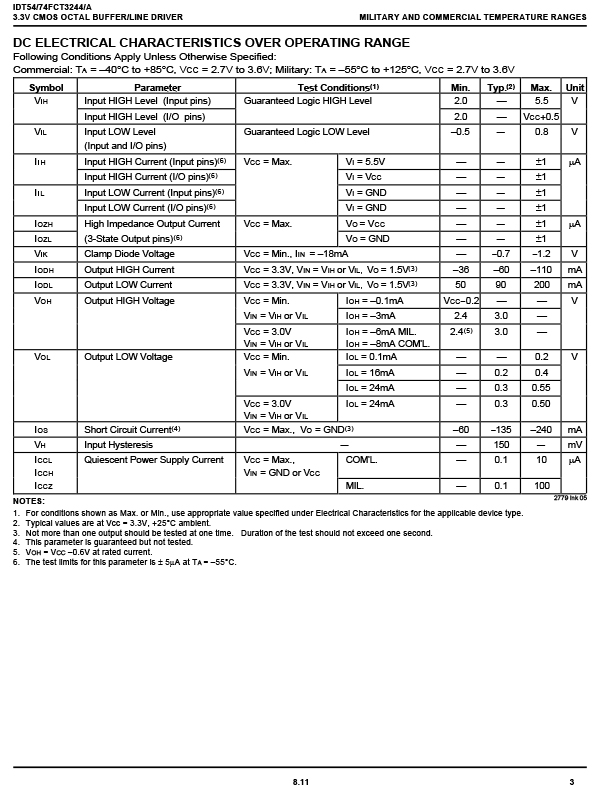

Product datasheet
For more information, please download
