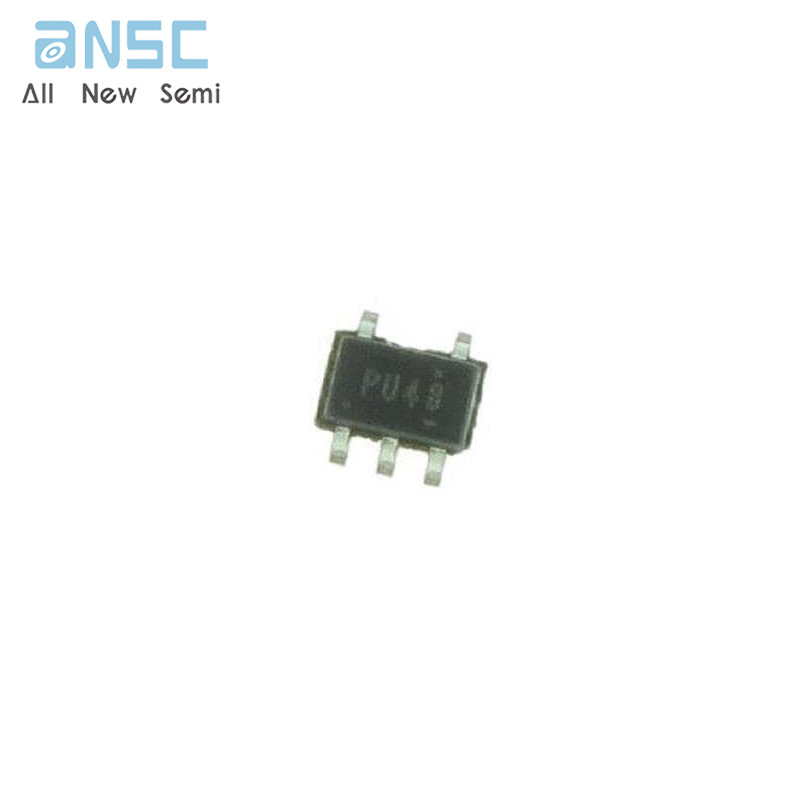

Hot-selling and scarce NC7SPU04P5X TinyLogic ULP Unbuffered Inverter SOT-353 spot stock
Manufacturer Product Number
NC7SPU04P5X
Description
NC7SPU04P5X TinyLogic ULP Unbuffered Inverter SOT-353 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The NC7SPU04 is a single unbuffered inverter from Fairchild’s Ultra Low Power (ULP) series of TinyLogic. Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the V CC operating range of 0.9V to 3.6V V CC.
The internal circuit is composed of a minimum of inverter stages, including the output buffer,to enable ultra low static and dynamic power.
The NC7SPU04, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve best in class speed operation while maintaining extremely low CMOS power dissipation.
Product Features
■ 0.9V to 3.6V V CC supply operation
■ 3.6V overvoltage tolerant I/O’s at V CC from 0.9V to 3.6V
■ t PD
4.0 ns typ for 3.0V to 3.6V V CC
5.0 ns typ for 2.3V to 2.7V V CC
6.0 ns typ for 1.65V to 1.95V V CC
7.0 ns typ for 1.40V to 1.60V V CC
11.0 ns typ for 1.10V to 1.30V V CC
27.0 ns typ for 0.90V V CC
■ Power-Off high impedance inputs and outputs
■ Static Drive (IOH/IOL)
±2.6 mA @ 3.00V V CC
±2.1 mA @ 2.30V V CC
±1.5 mA @ 1.65V V CC
±1.0 mA @ 1.40V V CC
±0.5 mA @ 1.10V V CC
±10 µA @ 0.9V V CC
■ Uses patented Quiet Series noise/EMI reduction circuitry
■ Ultra small MicroPak leadfree package
■ Ultra Low dynamic power
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NC7SPU04P5X |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 7SP |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Voltage - Supply | 0.9V ~ 3.6V |
| Current - Quiescent (Max) | 900 nA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Max Propagation Delay @ V, Max CL | 9.2ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Base Product Number | 7SPU04 |
