Hot-selling and scarce MM74HC123AM Dual Retriggerable Monostable Multivibrator SOP16 spot stock

Product Descriptions

The MM74HC123A high speed monostable multivibrators (one shots) utilize advanced silicon-gate CMOS technology. They feature speeds comparable to low power Schottky TTL circuitry while retaining the low power and high noise immunity characteristic of CMOS circuits.

Each multivibrator features both a negative, A, and a positive, B, transition triggered input, either of which can be used as an inhibit input. Also included is a clear input that when taken low resets the one shot. The MM74HC123A can be triggered on the positive transition of the clear while A is held LOW and B is held HIGH.

The MM74HC123A is retriggerable. That is it may be triggered repeatedly while their outputs are generating a pulse and the pulse will be extended.

Pulse width stability over a wide range of temperature and supply is achieved using linear CMOS techniques. The output pulse equation is simply: PW = (REXT) (CEXT); where PW is in seconds, R is in ohms, and C is in farads. All inputs are protected from damage due to static discharge by diodes to VCC and ground.

Product Features

■ Typical propagation delay: 25 ns

■ Wide power supply range: 2V–6V

■ Low quiescent current: 80 µA maximum (74HC Series)

■ Low input current: 1 µA maximum

■ Fanout of 10 LS-TTL loads

■ Simple pulse width formula T = RC

■ Wide pulse range: 400 ns to ∞ (typ)

■ Part to part variation: ±5% (typ)

■ Schmitt Trigger A & B inputs allow rise and fall times to be as slow as one second

Product Specification

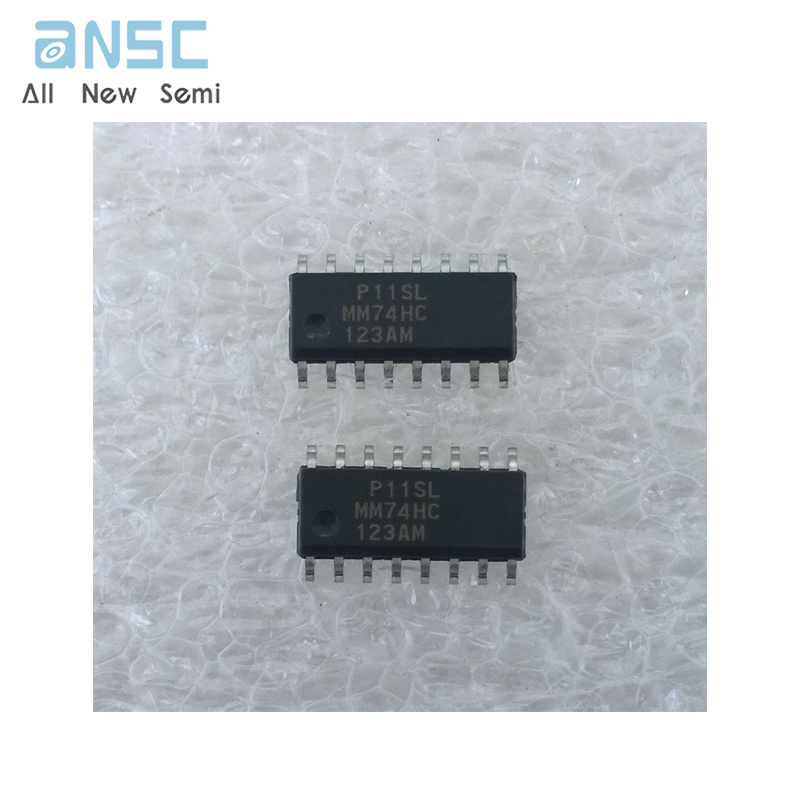

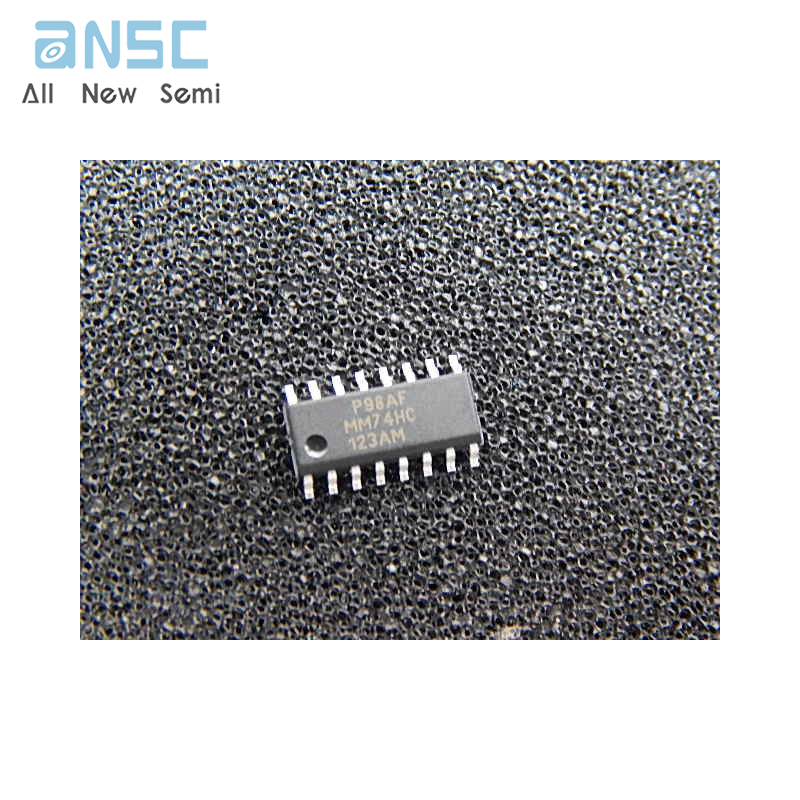

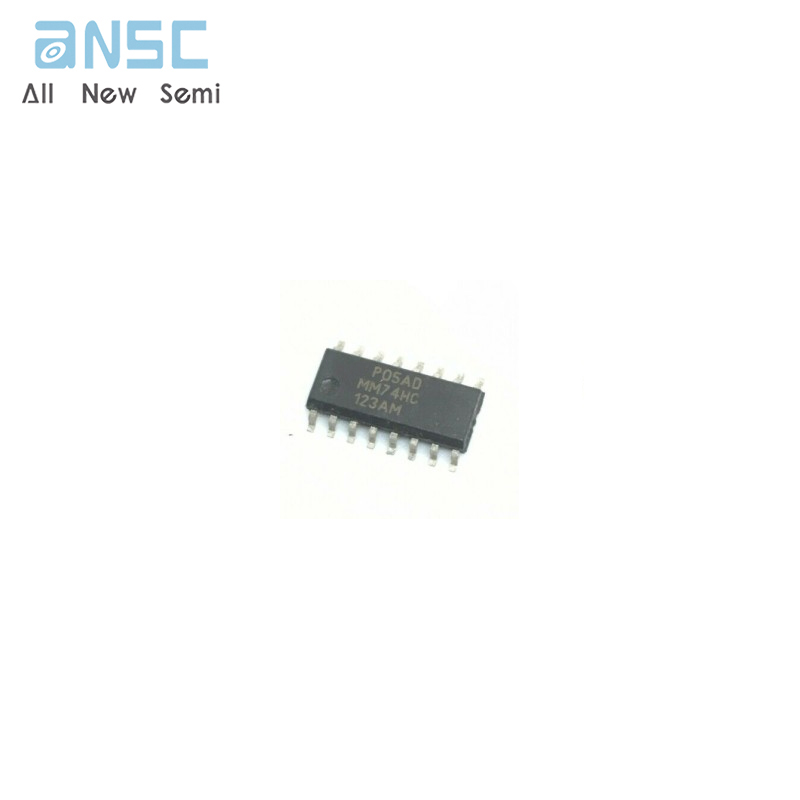

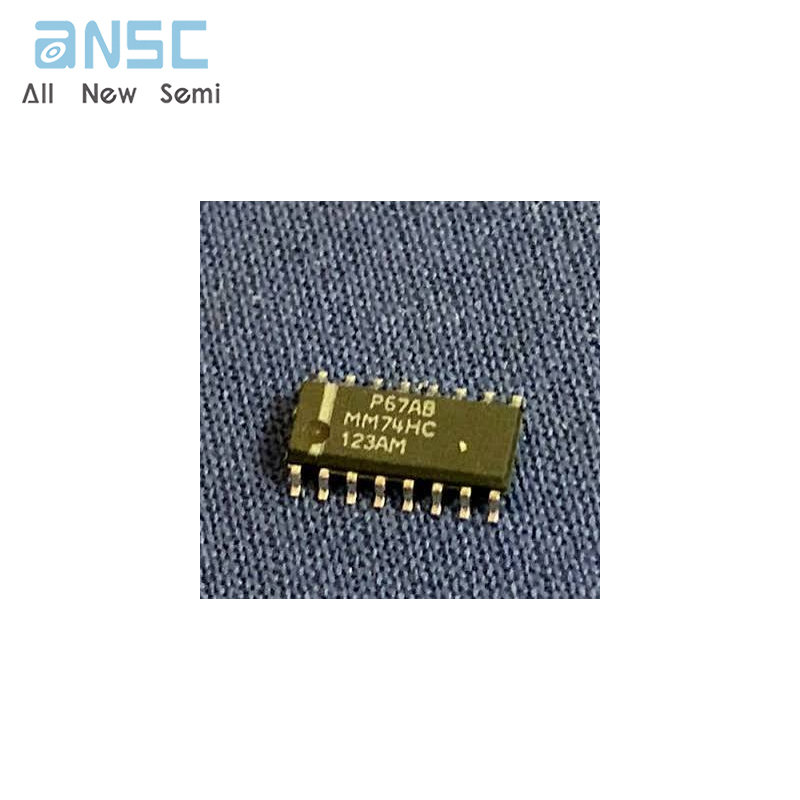

Product Photos

For more product information, please download the PDF
