Hot-selling and scarce SN74LV14AD Hex Schmitt-Trigger Inverters SOP14 spot stock
Manufacturer Product Number
SN74LV14AD
Description
SN74LV14AD Hex Schmitt-Trigger Inverters SOP14 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These hex Schmitt-trigger inverters are designed for 2 V to 5.5 V VCC operation.
The SN74LV14A devices contain six independent inverters. These devices perform the Boolean function Y = A.
Product Features
• VCC operation of 2 V to 5.5 V
• Max tpd of 10 ns at 5 V
• Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot)
> 2.3 V at VCC = 3.3 V, TA = 25°C
• Support Mixed-Mode Voltage Operation on All Ports
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 250 mA Per JESD 17
Product Applications
• Network Switches
• Wearable Health and Fitness Devices
• PDAs
• LCD TVs
• Power Infrastructure
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74LV14AD |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74LV |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 20 uA |
| Current - Output High, Low | 12mA, 12mA |
| Input Logic Level - Low | 0.75V ~ 1.5V |
| Input Logic Level - High | 1.75V ~ 3.5V |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF |
| Operating Temperature | -40℃ ~ 125℃ |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74LV14 |

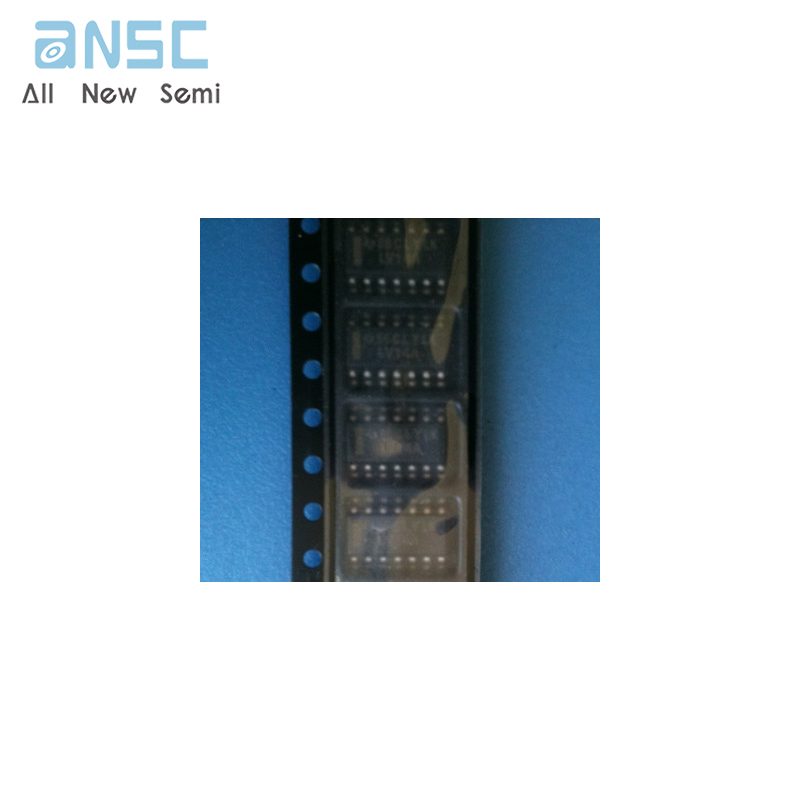

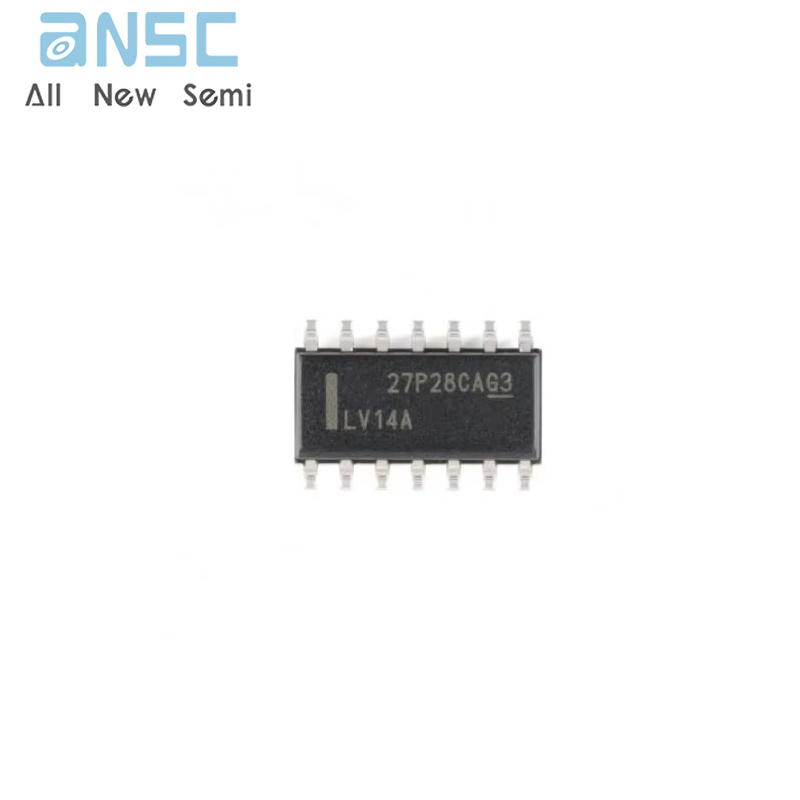

Product Photos
