Hot-selling and scarce 74AC244SC Octal Buffer/Line Driver with 3-STATE Outputs SOP20 spot stock
Manufacturer Product Number
74AC244SC
Description
74AC244SC Octal Buffer/Line Driver with 3-STATE Outputs SOP20 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AC/ACT244 is an octal buffer and line driver designed to be employed as a memory address driver, clock driver and bus−oriented transmitter/receiver which provides improved PC board density.
Product Features
• ICC and IOZ Reduced by 50
• 3−STATE Outputs Drive Bus Lines or Buffer Memory Address Registers
• Outputs Source/Sink 24 mA
• ACT244 has TTL−Compatible Inputs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74AC244SC |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, | |
| Transceivers | |
| Manufacturer | - |
| Series | 74AC |
| Packaging | Bulk |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | 74AC244 |

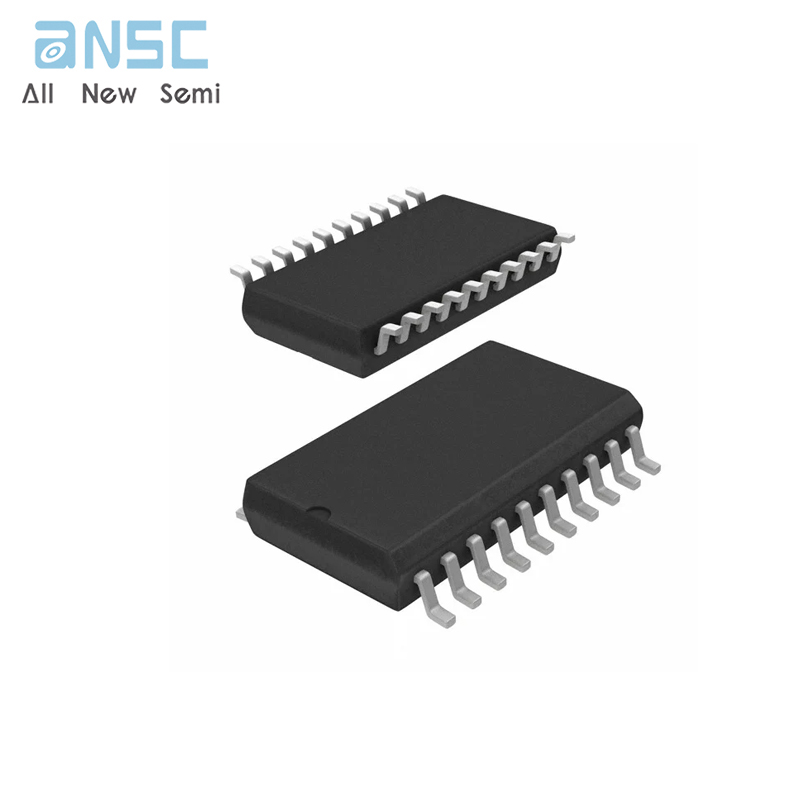

Product Photos
For more product information, please download the PDF
