Hot-selling and scarce 74LCX08MTC Low Voltage Quad 2-Input AND Gate with 5 V Tolerant Inputs TSSOP14 spot stock

Manufacturer Product Number
74LCX08MTC
Description

74LCX08MTC Low Voltage Quad 2-Input AND Gate with 5 V Tolerant Inputs TSSOP14 spot stock

Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Descriptions

The LCX08 contains four 2−input AND gates. The inputs tolerate voltages up to 5.5 V allowing the interface of 5 V systems to 3 V systems.

The 74LCX08 is fabricated with an advanced CMOS technology to achieve high Speed operation while Maintaining CMOS Low Power Dissipation.

Product Features

• 5 V Tolerant Inputs

• 1.65 V –5.5 V V CC Specifications Provided

• 5.5 ns tPD max.(VCC =3.3 V), 10 A ICC max.

• Power Down High Impedance Inputs and Outputs

• ±24 mA Output Drive (VCC =3.0 V)

• Implements Proprietary Noise/EMI Reduction Circuitry

• Latch−up Performance Exceeds JEDEC 78 Conditions

• ESD Performance:

♦  Human body model >2000 V

• Leadless DQFN Package

• These Devices are Pb−Free,Halide Free and are RoHS Compliant

Product Specification

Attribute Attribute value
ANSM-Part# ANSM-74LCX08MTC
Category Integrated Circuits (ICs)
Logic
Gates and Inverters
Mfr -
Series 74LCX
Packaging Tube
Part Status Obsolete
Logic Type AND Gate
Number of Circuits 4
Number of Inputs 2
Voltage - Supply 2V ~ 3.6V
Current - Quiescent (Max) 10 µA
Current - Output High, Low 24mA, 24mA
Input Logic Level - Low 0.7V ~ 0.8V
Input Logic Level - High 1.7V ~ 2V
Max Propagation Delay @ V, Max CL 5.5ns @ 3.3V, 50pF
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Supplier Device Package 14-TSSOP
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Base Product Number 74LCX08

Product Photos

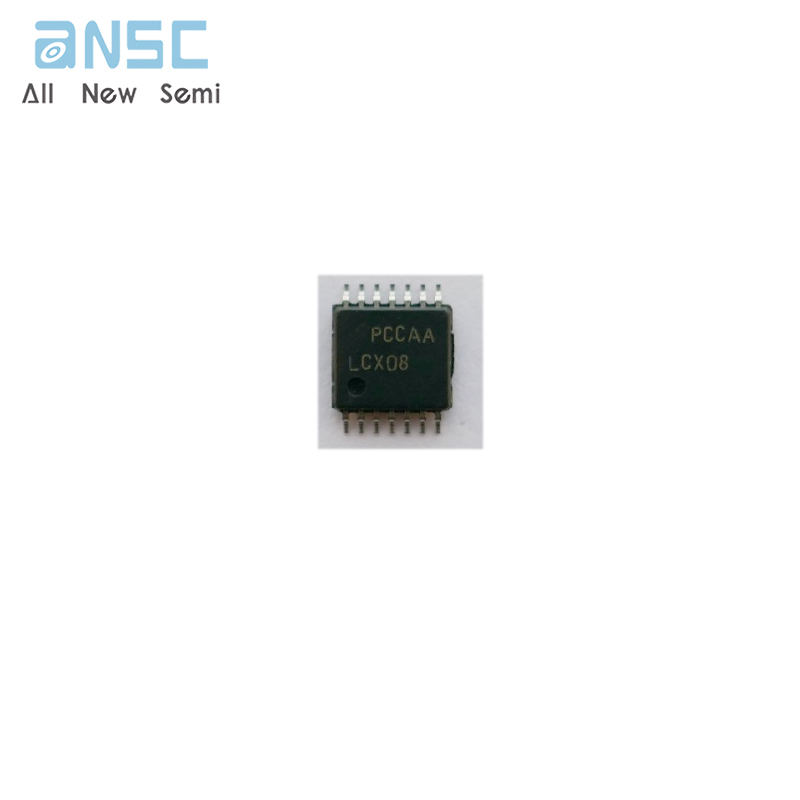

74LCX08MTC
