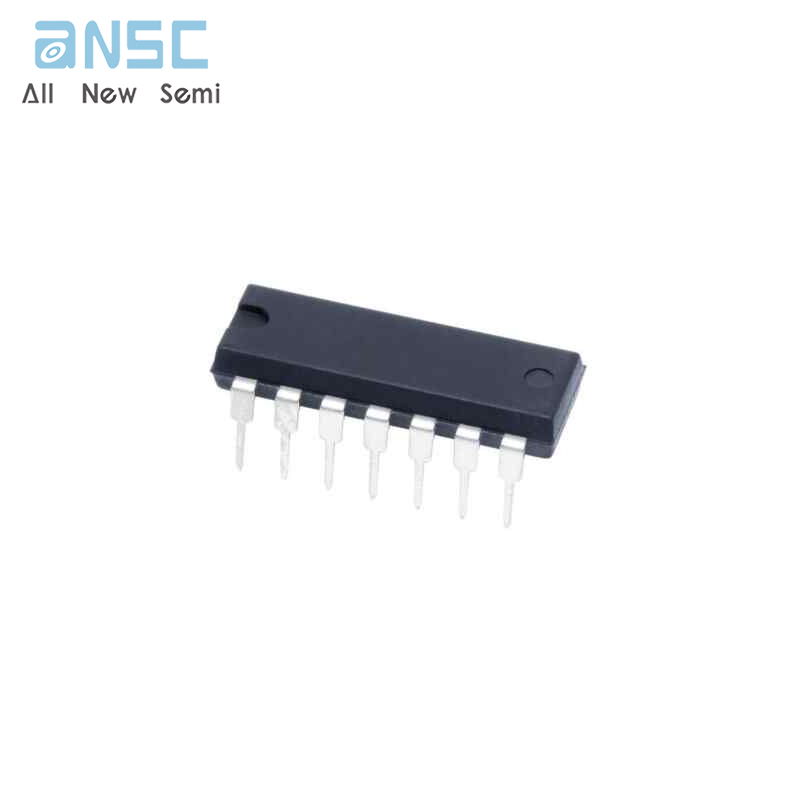

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
CD74ACT74E DUAL POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH CLEAR AND PRESET DIP14 spot stock
Manufacturer Product Number
CD74ACT74E
Description
CD74ACT74E DUAL POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOPS
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ’ACT74 dual positive-edge-triggered devices are D-type flip-flops.
A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs, regardless of the levels of the other inputs. When PRE and CLR are inactive (high), data at the data (D) input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not related directly to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs.
Product Features
Inputs Are TTL-Voltage Compatible
Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption
Balanced Propagation Delays
±24-mA Output Drive Current
– Fanout to 15 F Devices
SCR-Latchup-Resistant CMOS Process and Circuit Design
Exceeds 2-kV ESD Protection Per MIL-STD-883, Method 3015
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD74ACT74E |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | - |
| Series | 74ACT |
| Packaging | Tube |
| Part Status | Obsolete |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 85 MHz |
| Max Propagation Delay @ V, Max CL | 9.5ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 4 uA |
| Input Capacitance | 10 pF |
| Operating Temperature | -55℃ ~ 125℃ (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | 74ACT74 |
Product Photos
For more product information, please download the PDF
