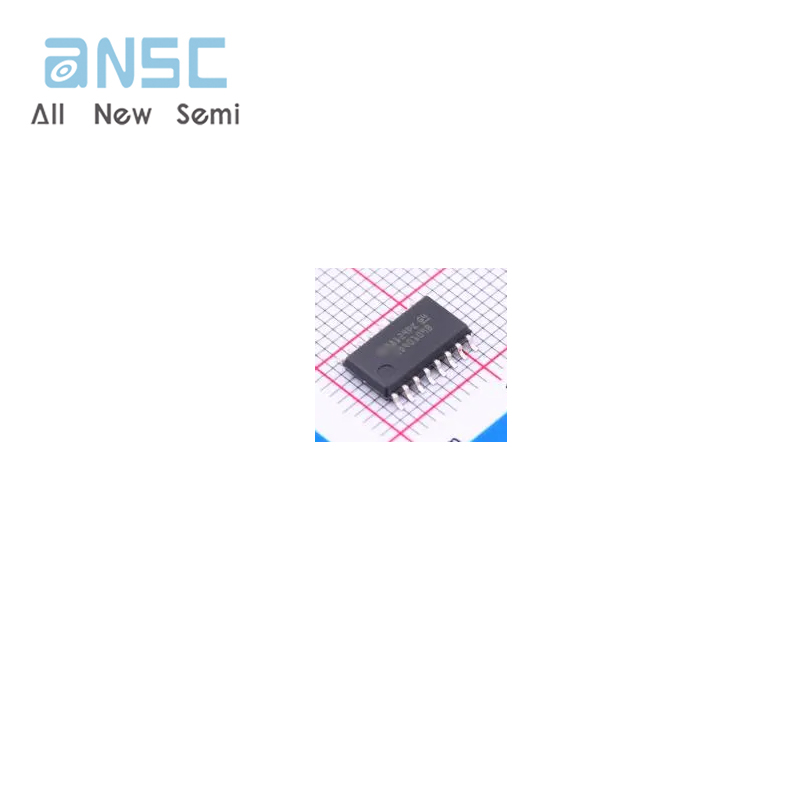

Hot sale Original CD40109BNSR IC TRANSLTR UNIDIRECTIONAL 16SO Voltage Level Translator Unidirectional 4 Circuit 1 Channel 16-SO
Manufacturer Product Number
CD40109BNSR
Description
Original CD40109BNSR IC TRANSLTR UNIDIRECTIONAL 16SO Voltage Level Translator Unidirectional 4 Circuit 1 Channel 16-SO
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
The CD40109BNSR is a low-to-high voltage translator, part of the 4000B series, designed to provide a reliable and efficient solution for level shifting and translation applications. This unidirectional, single-channel translator is built with a 16-pin SOIC package and is suitable for surface-mount applications.
Product Features
Low-to-High Voltage Translation: The CD40109BNSR can translate a low-level input signal to a high-level output signal, making it an ideal component for applications where signal levels need to be adjusted.
High-Speed Operation: With a data rate of 10 Mbps, this translator can handle high-speed signals with ease.
Tri-State Output: The output of the translator is tri-state, allowing it to be used in applications where the output needs to be controlled.
Low Power Consumption: The translator has a quiescent current of 20μA, making it energy-efficient and suitable for battery-powered devices.
Wide Operating Temperature Range: The CD40109BNSR operates within a temperature range of -55°C to 125°C, ensuring reliable performance in various environments.
Product Applications
Primary Applications:
Level shifting and translation in digital circuits
Signal conditioning in industrial control systems
Data transmission and reception in telecommunications
Secondary Applications:
Audio and video signal processing
Medical device applications
Automotive electronics
Product Description
| Type | Description |
| ANSC PART# | ANSC- CD40109BNSR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Translators, Level Shifters | |
| Manufacturer | / |
| Series | 4000B |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Translator Type | Voltage Level |
| Channel Type | Unidirectional |
| Number of Circuits | 4 |
| Channels per Circuit | 1 |
| Voltage - VCCA | 3 V ~ 18 V |
| Voltage - VCCB | 3 V ~ 18 V |
| Input Signal | - |
| Output Signal | - |
| Output Type | Tri-State, Non-Inverted |
| Data Rate | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SO |
| Base Product Number | CD40109 |
