Hot sale Original SN74HC00N Logic IC GATE NAND 4CH 2-INP 14DIP NAND Gate IC 4 Channel 14-PDIP

Description

The SN74HC00N is a 14-pin DIP (Dual In-Line Package) logic gate integrated circuit, part of the 74HC family. This active, lead-free, and RoHS3 compliant component is designed to operate within a wide range of supply voltages, from 2V to 6V, and temperatures from -40°C to 85°C.

Product Features

Logic Function: The SN74HC00N is a NAND gate, featuring a logic function that produces an output that is the logical AND of the two input signals.

Supply Voltage: The component operates on a single 5V supply voltage, with a maximum supply voltage of 6V and a minimum supply voltage of 2V.

Propagation Delay: The propagation delay of the SN74HC00N is 15ns, making it suitable for high-speed digital applications.

Output Current: The component can handle an output current of up to 5.2mA.

Quiescent Current: The quiescent current of the SN74HC00N is 2μA, making it energy-efficient.

Product Applications

Primary Applications: The SN74HC00N is commonly used in digital logic circuits, such as computer systems, telecommunications equipment, and industrial control systems.

Secondary Applications: It can also be used in other applications where a NAND gate is required, such as in digital signal processing, data acquisition systems, and medical devices.

Product Description

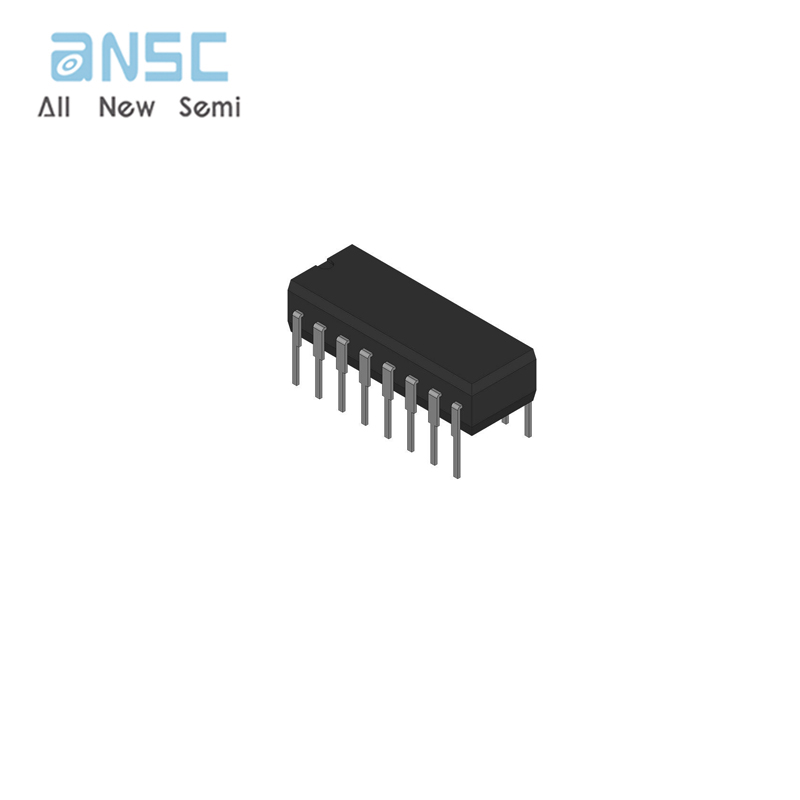

Actual image of the product
