Hot-selling and scarce SN74HCT00N Quadruple 2-Input Positive-Nand Gates DIP14 spot stock
Manufacturer Product Number
SN74HCT00N
Description
SN74HCT00N Quadruple 2-Input Positive-Nand Gates DIP14 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These devices contain four independent 2-input NAND gates. They perform the Boolean function Y= A • B in positive logic.
Product Features
• Operating voltage range of 4.5V to 5.5V
• Outputs can drive up to 10 LSTTL loads
• Low power consumption, 20-μA max ICC
• Typical tpd = 10ns
• ±4-mA output drive at 5V
• Low input current of 1μA max
• Inputs are TTL-voltage compatible
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74HCT00N |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74HCT |
| Packaging | Tube |
| Part Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 UA |
| Current - Output High, Low | 4mA, 4mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 18ns @ 5.5V, 50pF |
| Operating Temperature | -40℃ ~ 85℃ |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | 74HCT00 |

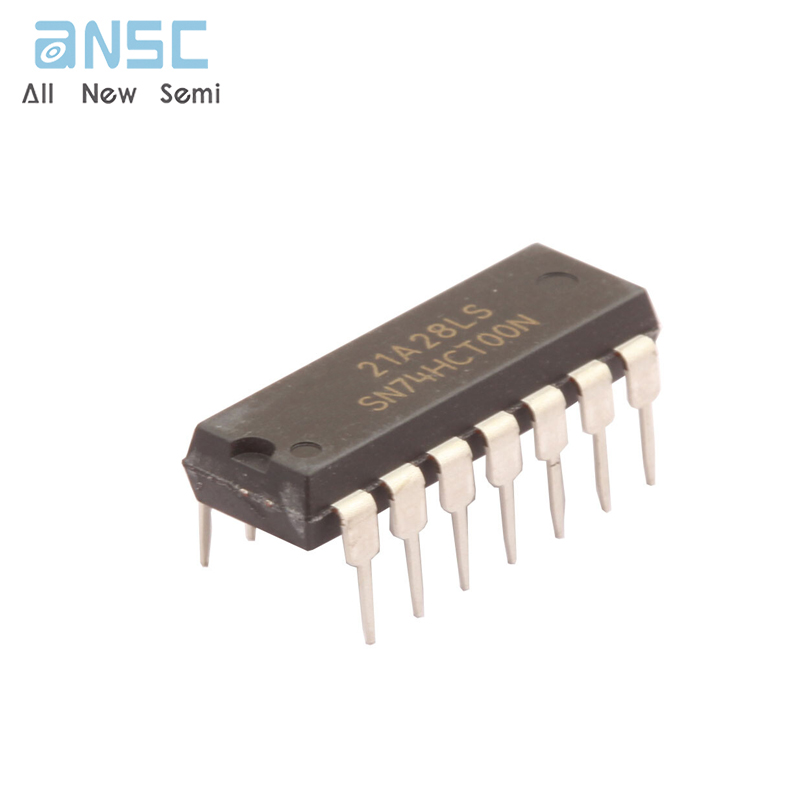

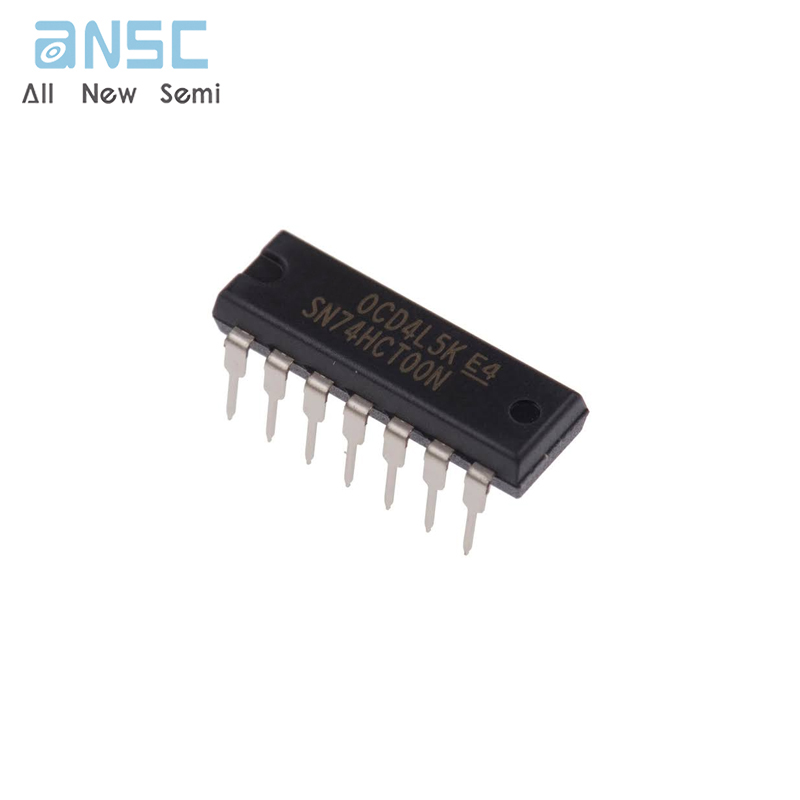

Product Photos
For more product information, please download the PDF
