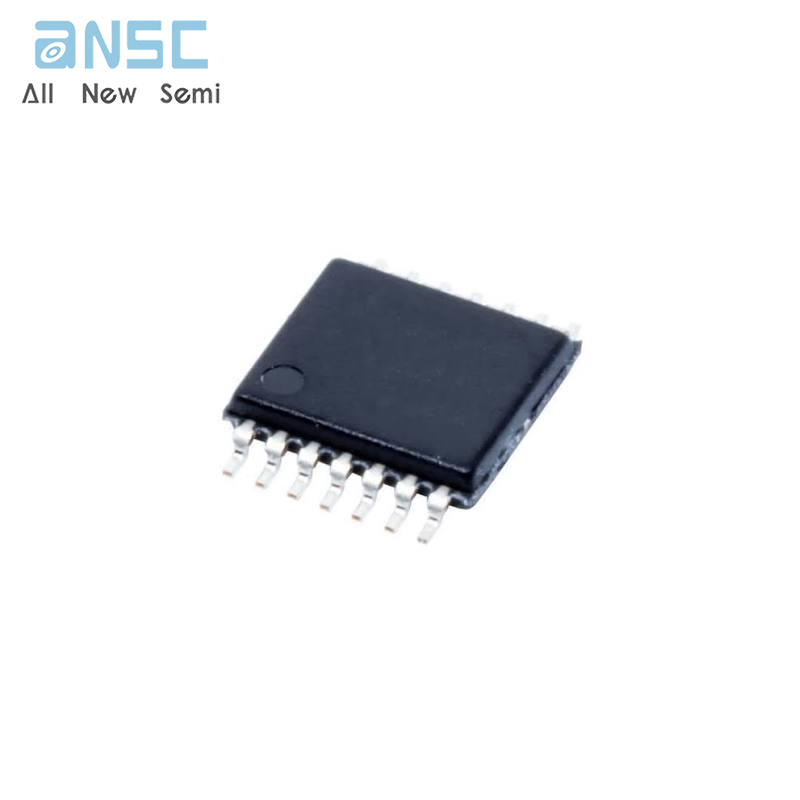

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce SN74ALVC08PWR QUADRUPLE 2-INPUT POSITIVE-AND GATE TSSOP14 spot stock
Manufacturer Product Number
SN74ALVC08PWR
Description
SN74ALVC08PWR QUADRUPLE 2-INPUT POSITIVE-AND GATE TSSOP14 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This quadruple 2-input positive-AND gate is designed for 1.65-V to 3.6-V VCC operation.
The device performs the Boolean function Y = A · Bor Y = A + B in positive logic.
Product Features
• Operates From 1.65 V to 3.6 V
• Max tpd of 2.9 ns at 3.3 V
• ±24-mA Output Drive at 3.3 V
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74ALVC08PWR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74ALVC |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Input Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 2.9ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | 74ALVC08 |
Product Photos
For more product information, please download the PDF
