Hot-selling and scarce NC7S08M5X TinyLogic HS 2-Input AND Gate SOT23-5 spot stock
Manufacturer Product Number
NC7S08M5X
Description

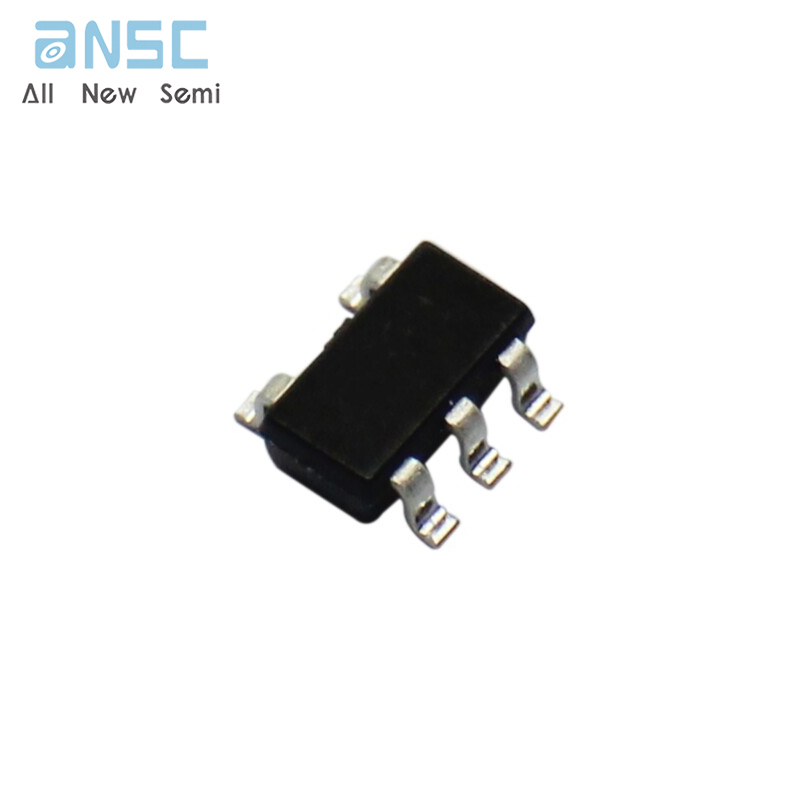

NC7S08M5X TinyLogic HS 2-Input AND Gate SOT23-5 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The NC7S08 is a single 2−Input high performance CMOS AND Gate. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation over a broad V CC range. ESD protection diodes inherently guard both inputs and output with respect to the V CC and GND rails. Three stages of gain between inputs and outputs assures high noise immunity and reduced sensitivity to input edge rate.
Product Features
• Space Saving SOT23−5,SC−74A and SC−88A 5−Lead Package
• Ultra Small MicroPak™ Leadless Package
• High Speed:tPD =3.5 ns Typ
• Low Quiescent Power:ICC < 1 A
• Balanced Output Drive:2 mA IOL,−2 mA IOH
• Broad V CC Operating Range:2 V –6 V
• Balanced Propagation Delays
• Specified for 3 V Operation
• These Devices are Pb−Free,Halogen Free/BFR Free and are RoHS Compliant
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NC7S08M5X |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 7S |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Input Logic Level - Low | 0.5V |
| Input Logic Level - High | 1.5V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | 7S08 |
