74ACT245PC Octal Bidirectional Transceiver with 3-STATE Inputs/Outputs DIP20 spot stock
Manufacturer Product Number
74ACT245PC
Description
74ACT245PC Octal Bidirectional Transceiver
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AC/ACT245 contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus-oriented applications. Current sinking capability is 24mA at both the A and B ports. The Transmit/Receive (T/R) input determines the direction of data flow through the bidirectional transceiver. Transmit (active-HIGH) enables data from A ports to B ports; Receive (activeLOW) enables data from B ports to A ports. The Output Enable input, when HIGH, disables both A and B ports by placing them in a HIGH Z condition.
Product Features
■ ICC and IOZ reduced by 50%
■ Non-inverting buffers
■ Bidirectional data path
■ A and B outputs source/sink 24mA
■ ACT245 has TTL-compatible inputs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74ACT245PC |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers | |
| Transceivers | |
| Manufacturer | - |
| Series | 74ACT |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| Base Product Number | 74ACT245 |

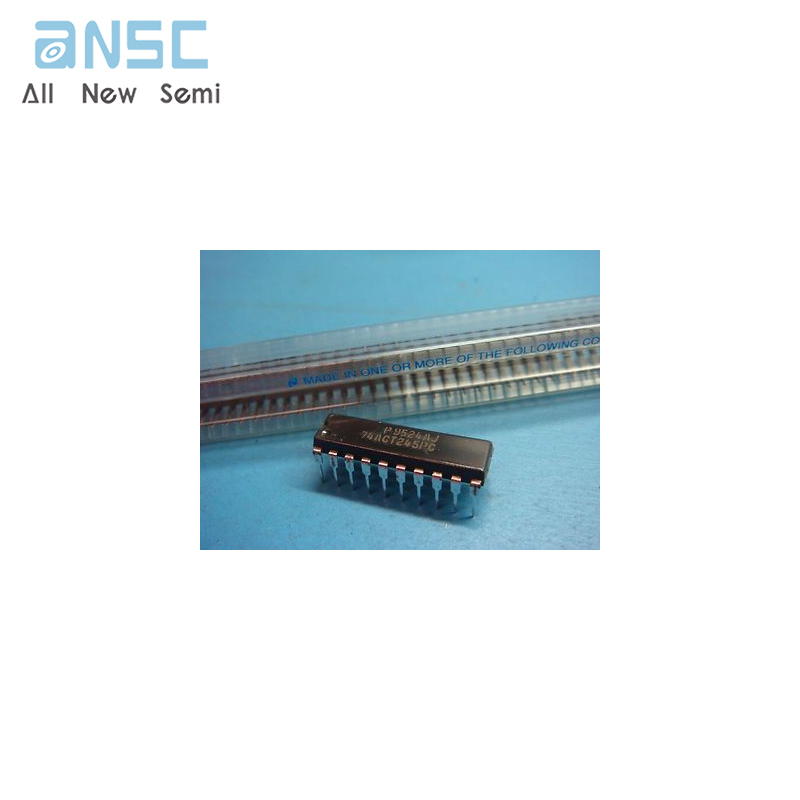

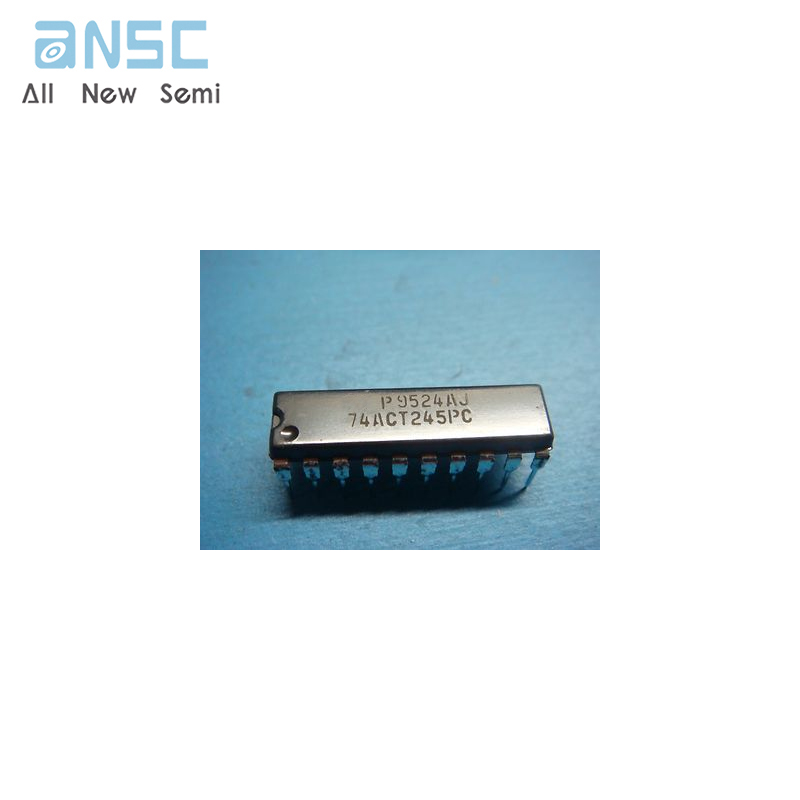

Product Photos
