Hot sale Original MM74HC04MTC Logic Gates and Inverters IC INVERTER 6CH 1-INP14-TSSOP 16ns 6V 50pF Inverter 2 uA Surface Mount

Manufacturer Product Number
MM74HC04MTC
Description

Original MM74HC04MTC Logic Gates and Inverters IC INVERTER 6CH 1-INP14-TSSOP 16ns 6V 50pF Inverter 2 uA Surface Mount

Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

General Description
The MM74HC04 inverters utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits.
The MM74HC04 is a triple buffered inverter. It has high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Features
■ Typical propagation delay: 8 ns
■ Fan out of 10 LS-TTL loads
■ Quiescent power consumption: 10 µW maximum at room temperature
■ Low input current: 1 µA maximum


Product Description

Type Description
ANSC PART# ANSC - MM74HC04MTC
Category Integrated Circuits (ICs)
Logic
Gates and Inverters
Mfr Original
Series 74HC
Packaging Tube
Part Status Obsolete
Logic Type Inverter
Number of Circuits 6
Number of Inputs 1
Features -
Voltage - Supply 2V ~ 6V
Current - Quiescent (Max) 2 µA
Current - Output High, Low 5.2mA, 5.2mA
Input Logic Level - Low 0.5V ~ 1.8V
Input Logic Level - High 1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL 16ns @ 6V, 50pF
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Supplier Device Package 14-TSSOP
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Base Product Number 74HC04

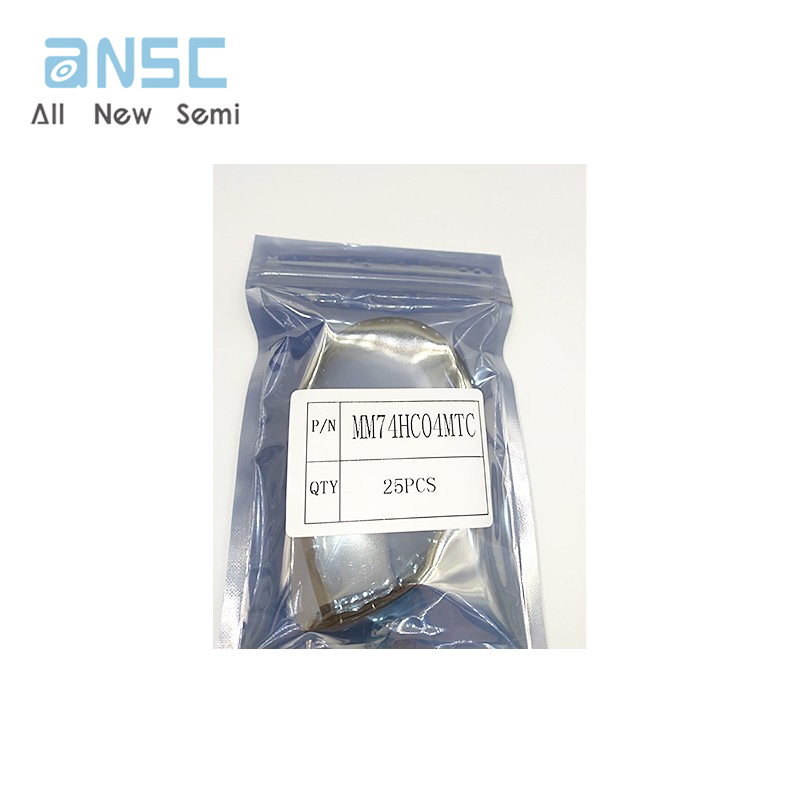

Actual image of the product

MM74HC04MTC

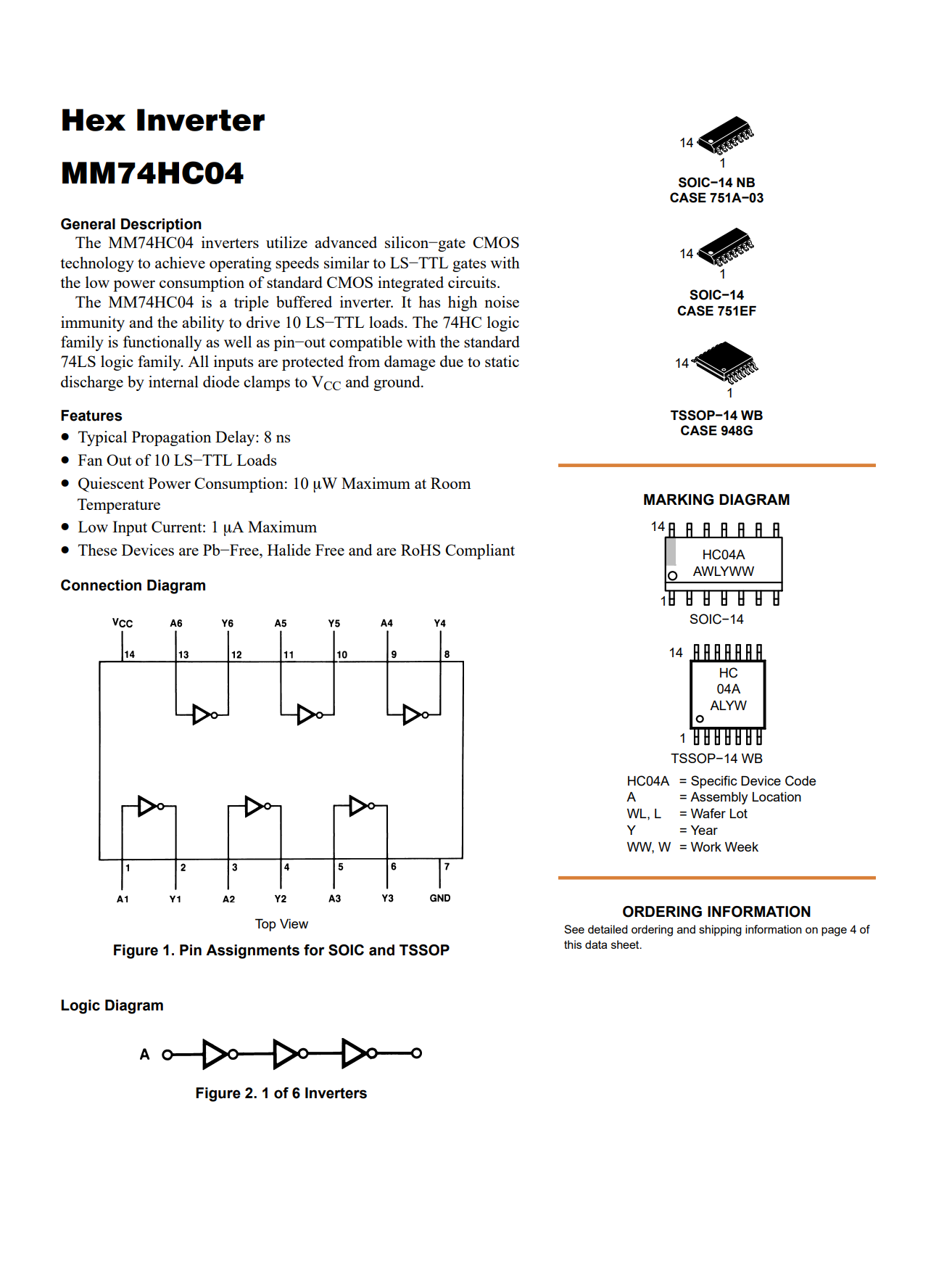

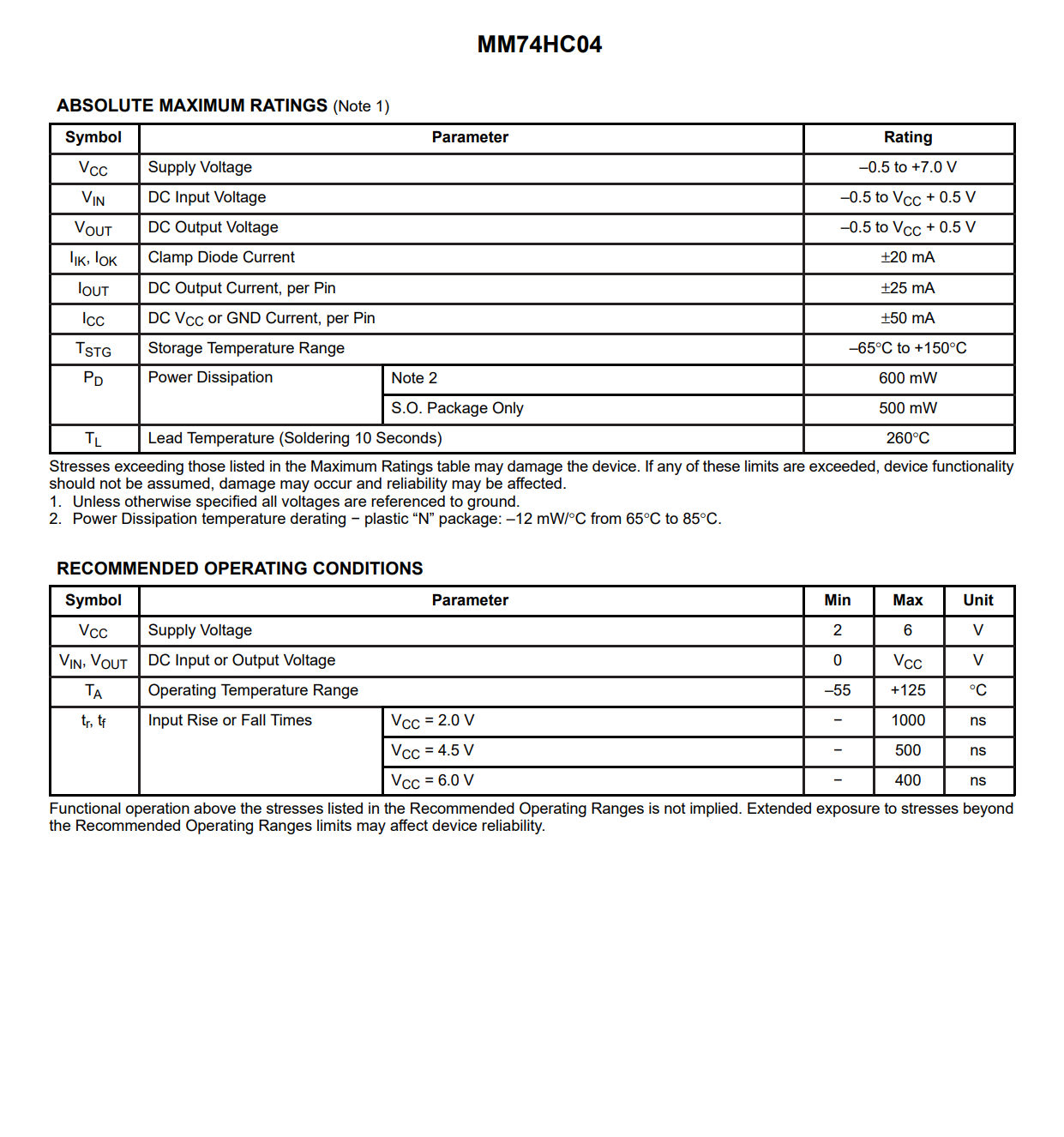

Product datasheet

For more information, please download
