Hot sale Original DAC08CSZ IC ADC 8 Bits 1 D/A Converters Current - Unbuffered Digital to Analog Converters (DAC) External

Product Description

The DAC08 series of 8-bit monolithic digital-to-analog converters provide very high speed performance coupled with low cost and outstanding applications flexibility.

Advanced circuit design achieves 85 ns settling times with very low glitch energy and at low power consumption. Monotonic multiplying performance is attained over a wide 20 to 1 reference current range. Matching to within 1 LSB between reference and full-scale currents eliminates the need for full-scale trimming in most applications.

Product Features

    Fast settling output current: 85 ns

    Full-scale current prematched to ±1 LSB

    Direct interface to TTL, CMOS, ECL, HTL, PMOS

    Nonlinearity to 0.1% maximum over temperature range

    High output impedance and compliance: −10 V to +18 V

    Complementary current outputs

    Wide range multiplying capability: 1 MHz bandwidth

    Low FS current drift: ±10 ppm/°C

    Wide power supply range: ±4.5 V to ±18 V

    Low power consumption: 33 mW at ±5 V

    Low cost

Product Description

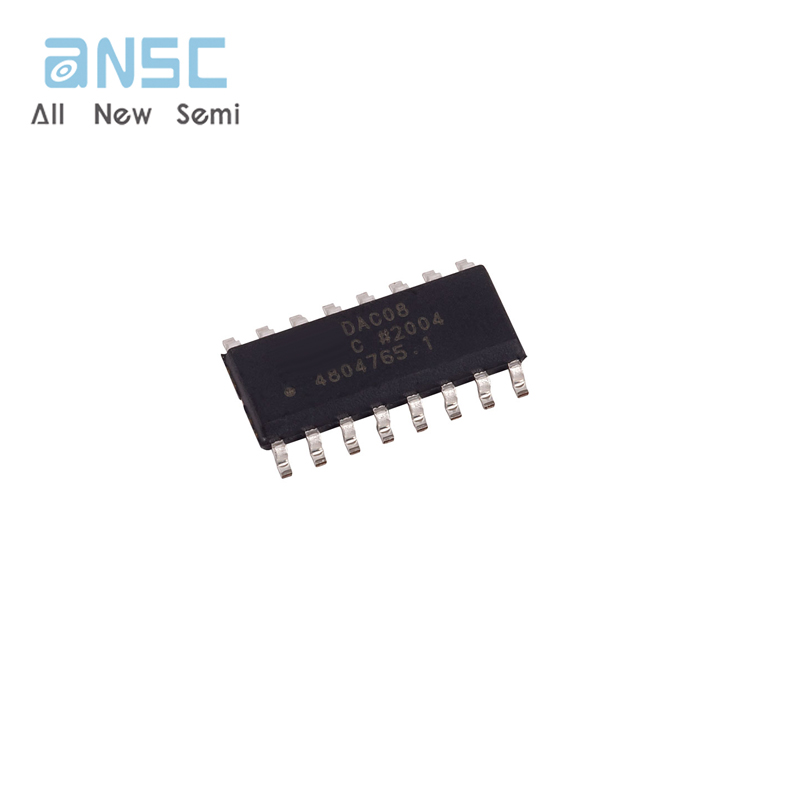

Actual image of the product

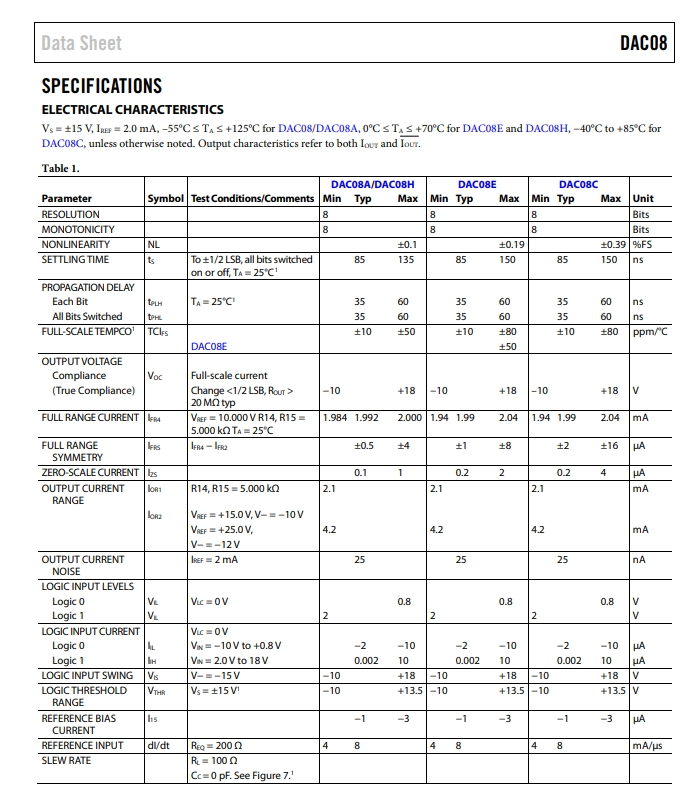

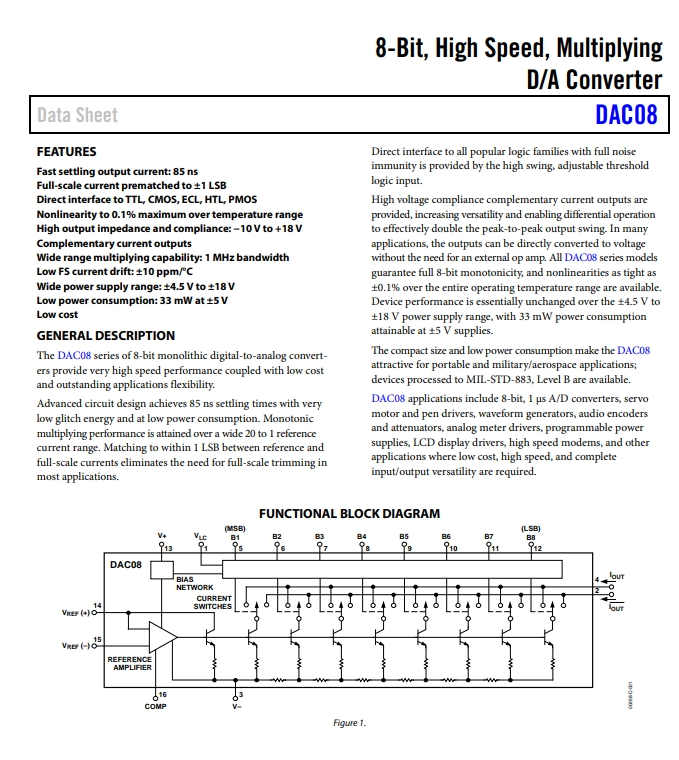

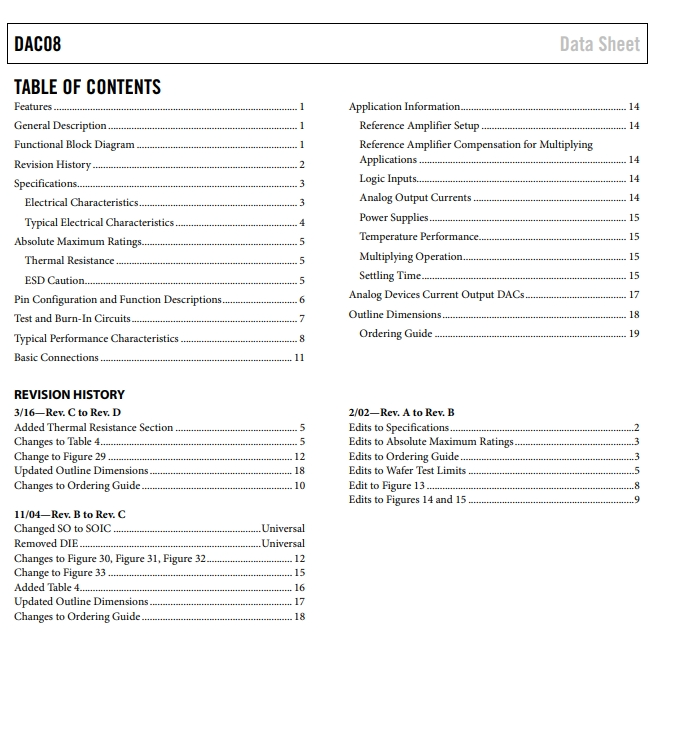

Product datasheet

For more information, please download
