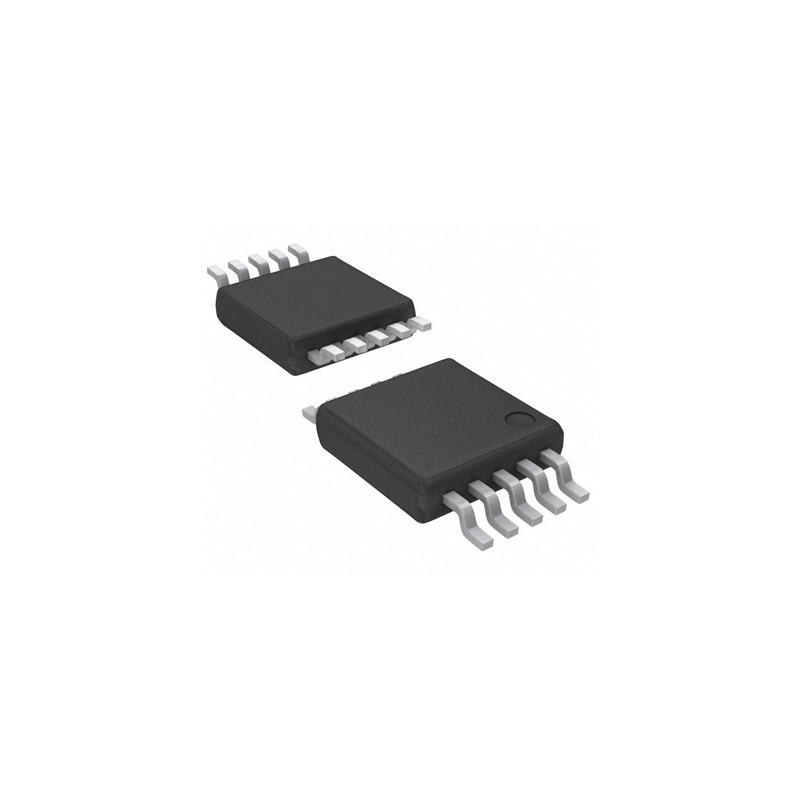

Quad Voltage Monitor in MAX Package Electronic components BOM Integrated circuit IC MAX6338CUB

Product Descriptions

The MAX6338 quad voltage monitor is capable of monitoring up to four supplies without any external components. A variety of factory-trimmed threshold voltages and supply tolerances are available to optimize the MAX6338 for specific applications. The selection includes input options for monitoring +5.0V, +3.3V, +3.0V, +2.5V, +1.8V, and -5.0V voltages. An additional high-input impedance comparator option can be used as an adjustable voltage monitor, general-purpose comparator, or digital level translator.

Each of the monitored voltages is available with trip thresholds to support power-supply tolerances of either 5 PERCENT or 10 PERCENT below the nominal voltage. An internal bandgap reference ensures accurate trip thresholds across the extended (-40°C to +85°C) operating temperature range.

The MAX6338 consumes 25µA (typ) supply current and operates with supply voltages from +2.5V to +5.5V. An internal undervoltage lockout circuit forces all four digital outputs low when VCC drops below the minimum operating voltage. The four digital outputs all have weak internal pull-ups to VCC, allowing wire-ORed connection. Each input threshold voltage has an independent output. The MAX6338 is available in a 10-pin µMAX® package.

Product Features

♦ Monitors Four Voltages (Factory Programmed or User Adjustable)

+5.0V, +3.3V, +3.0V, +2.5V, +1.8V, -5.0V (nominal) or User-Adjustable Settings

♦ Low 25µA Supply Current

♦ Four Independent, Open-Drain, Active-Low Outputs

♦ +2.5V to +5.5V Supply Voltage Range

♦ Guaranteed from -40°C to +85°C

♦ No External Components Required

♦ Small 10-Pin µMAX Package

Product Applications

Telecommunications

High-End Printers

Desktop and Notebook Computers

Data Storage Equipment

Networking Equipment

Industrial Equipment

Set-Top Boxes
