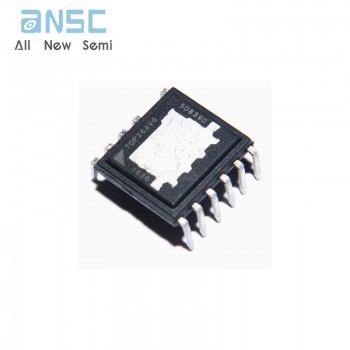

Original TOP264VG Integrated Off-Line Switcher with EcoSmart Technology for Highly Efficient Power Supplies eDIP-12

Product Descriptions

TOPSwitch™-JX cost effectively incorporates a 725 V power MOSFET, high-voltage switched current source, multi-mode PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device.

Product Features

EcoSmart – Energy Efficient

• Ideal for applications from 10 W to 245 W

• Energy efficient over entire load range

• No-load consumption below 100 mW at 265 VAC

• Up to 750 mW standby output power for 1 W input at 230 VAC

High Design Flexibility for Low System Cost

• Multi-mode PWM control maximizes efficiency at all loads

• 132 kHz operation reduces transformer and power supply size

• 66 kHz option for highest efficiency requirements

• Accurate programmable current limit

• Optimized line feed-forward for line ripple rejection

• Frequency jittering reduces EMI filter cost

• Fully integrated soft-start for minimum start-up stress

• 725 V rated MOSFET

• Simplifies meeting design derating requirements

Extensive Protection Features

• Auto-restart limits power delivery to <3% during overload faults

• Output short-circuit protection (SCP)

• Output over-current protection (OCP)

• Output overload protection (OPP)

• Output overvoltage protection (OVP)

• User programmable for hysteretic/latching shutdown

• Simple fast AC reset

• Primary or secondary sensed

• Line undervoltage (UV) detection prevents turn-off glitches

• Line overvoltage (OV) shutdown extends line surge withstand

• Accurate thermal shutdown with large hysteresis (OTP)

Advanced Package Options

• eDIP™-12 package:

• 43 W / 117 W universal input power output capability with PCB / metal heat sink

• Low profile horizontal orientation for ultra-slim designs

• Heat transfer to both PCB and heat sink

• Optional external heat sink provides thermal impedance equivalent to a TO-220

• eSIP™-7C package:

• 177 W universal input output power capability

• Vertical orientation for minimum PCB footprint

• Simple heat sink mounting using clip provides thermal impedance equivalent to a TO-220

• eSOP™-12 package:

• 66 W universal input output power capability

• Low profile surface mounted for ultra-slim designs

• Heat transfer to PCB via exposed pad and SOURCE pins

• Supports wave or reflow soldering

• Extended creepage to DRAIN pin

• Heat sink is connected to SOURCE for low EMI

Product Applications

• Notebook or laptop adapter

• Generic adapter

• Printer

• LCD monitor

• Set-top box

• PC or LCD TV standby

• Audio amplifier

Specifications
