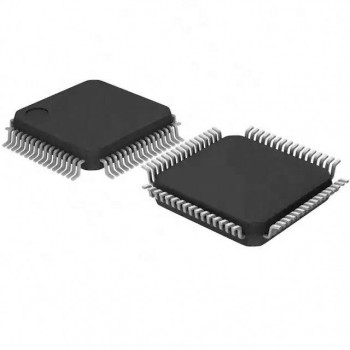

Hot selling LXT6155LE B5 155 Mbps SDH/SONET/ATM Transceiver IC TQFP-64

Product Descriptions

The LXT6155 is a high speed fully integrated transceiver designed for 155 Mbps SDH/SONET/ ATM transmission system applications. The LXT6155 provides a LVPECL interface for fiber optics modules, and a CMI interface for coax cable drive. These circuits are implemented using Level One’s proven low power 3.3V CMOS analog and digital circuits.

The transmitter incorporates a parallel-to-serial converter, a frequency multiplier PLL, CMI line encoders, and line interfaces for both coax cable and optical fiber. The receiver incorporates an adaptive equalizer, a clock recovery PLL, Loss of Signal (LOS) detector, CMI and NRZ decoders, a serial-to-parallel converter, and an SDH/SONET frame byte detector/aligner. At the system interface, the LXT6155 offers both parallel 8-bit and serial differential interfaces. The LXT6155 also operates in either Hardware stand-alone mode or Software mode. Software mode is controlled by a serial microprocessor (µP) to program formats and operating/test modes.

Product Features

 Complies with:

—Bellcore SONET GR-253

—ITU-T G.703/813/958 STM1

 Two line interface formats:

—Fiber LVPECL NRZ

—Coax CMI

 Transmit synthesizer PLL

 Receive clock recovery PLL

 Adaptive CMI equalizer

 Analog circuitry for transformer drive

 Programmable LOS function

 CMI encoder and decoder

 Serial/Parallel and Parallel/Serial conversion

 Byte alignment for SDH/SONET frames

 Two modes of operation:

—Microprocessor controlled; software mode

—Stand-alone; hardware mode

 No external crystal required. A 19.44 MHz crystal is optional

 Low power consumption (less than 760 mW typical)

 Operates from a single 3.3 V supply

​ 64 pin LQFP package
