Hot selling SAB-C515A-LMAA 8-bit CMOS Microcontroller Chip

Product Descriptions

• Full upward compatibility with SAB 80C515A/83C515A-5

• Up to 24 MHz external operating frequency

– 500 ns instruction cycle at 24 MHz operation

• 32K byte on-chip ROM (with optional ROM protection)

– alternatively up to 64K byte external program memory

• Up to 64K byte external data memory

• 256 byte on-chip RAM

• 1K byte on-chip RAM (XRAM)

• Six 8-bit parallel I/O ports

• One input port for analog/digital input

• Full duplex serial interface (USART)

– 4 operating modes, fixed or variable baud rates

• Three 16-bit timer/counters

– Timer 0 / 1 (C501 compatible)

– Timer 2 for 16-bit reload, compare, or capture functions

Product Features

• 10-bit A/D converter

– 8 multiplexed analog inputs

– Built-in self calibration

• 16-bit watchdog timer

• Power saving modes

– Slow down mode

– Idle mode (can be combined with slow down mode)

– Software power down mode with wake-up capability through INT0 pin

– Hardware power down mode

• 12 interrupt sources (7 external, 5 internal) selectable at 4 priority levels

• ALE switch-off capability

• On-chip emulation support logic (Enhanced Hooks Technology TM)

• P-MQFP-80-1 package

• Temperature Ranges:

SAB-C515A TA = 0 to 70 °C

SAF-C515A TA = – 40 to 85 °C

SAH-C515A TA = – 40 to 85 °C

​SAK-C515 TA = – 40 to 110 °C (max. operating frequency: 18 MHz)

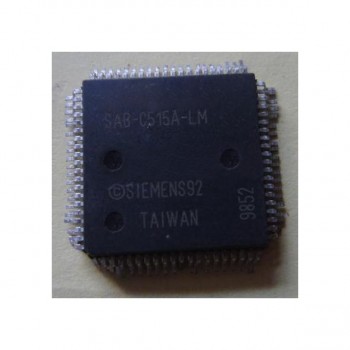

Actual product photos
