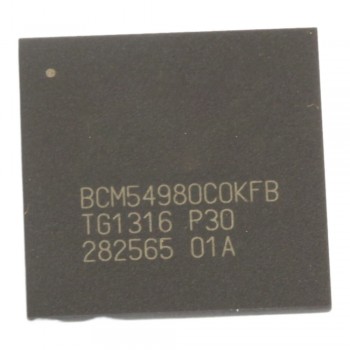

BCM54980C0KFB OCTAL-PORT 10/100/1000BASE-T GIGABIT ETHERNET TRANSCEIVER Chip

Product Features

• Eight 10BASE-T/100BASE-TX/1000BASE-T Gigabit Ethernet (GbE) transceivers in a single fully integrated 90-nm CMOS chip

• Reverse MDI capability

• Low power: 500 mW per port

• SGMII and SerDes MAC interface options

• Internal 100Ω twisted-pair termination resistors

• Supports 10/100/1000BASE-T and 100BASE-FX on copper interface

• Enhanced LED driver modes

• Fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards

• Line-side loopback

• Low EMI emissions

• Hardware-accelerated CableChecker™ diagnostics

• Robust cable-sourced electrostatic discharge (CESD) tolerance

• Support for jumbo packets

• IEEE 1149.1 (JTAG) and 1149.6 (AC-JTAG) boundary scan

• Ethernet@Wirespeed™ and Super-Isolate mode support

Product BENEFITS

• Energy efficient, low-cost, and low-power octal-port integration enables single-row, high-port density switches

• Ability to reverse MDI, easing board design and simplifying layout in high port density switch designs

• Low-cost solution for unmanaged switch applications

• Lowers system BOM cost and simplifies system design

• Internal 100Ω twisted-pair termination resistors eliminate need for external resistors, saving eight resistors per port

• Provides compatibility with IEEE standard devices operating at 10 Mbps, 100 Mbps, and 1000 Mbps at half-duplex and fullduplex

• Eases system-level debug

• Enables use of low-cost magnetics, even in high-density (48+) designs

• CableChecker characterizes cable plant condition and immediately indicates cabling issues

- CableChecker detection of cable plant impairments

- Prevents erroneous equipment return due to bad cable plants

- Prevents manufacturing fallout due to bad cable plants

• Operates with larger packets for wider range of packetprotocol support and improved efficiency

• Ease of manufacturing with JTAG support, simplified power supply, and multiple MAC interfaces
