You can contact me for the best price SP3232EEN Drivers And Interface Line Driver or Receiver PLASTIC SOIC-16 Hot sale Original
Manufacturer Product Number
SP3232EEN
Description
SP3232EEN Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16, PLASTIC, SOIC-16
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

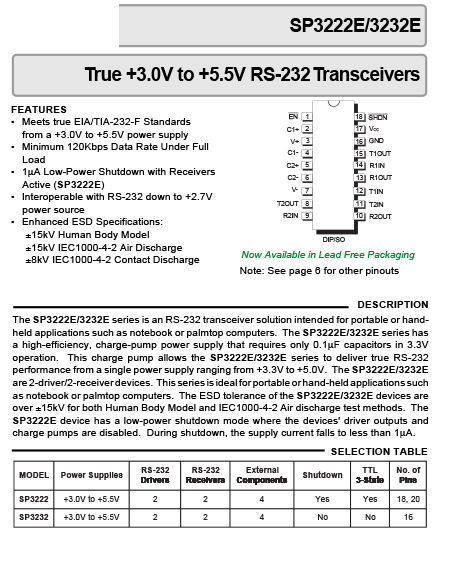

DESCRIPTION The SP3222/3232E series is an RS-232 transceiver solution intended for portable or hand held applications such as notebook or palmtop computers. The SP3222/3232E series has a high-efficiency, charge-pump power supply that requires only 0.1µF capacitors in 3.3V operation. This charge pump allows the SP3222/3232E series to deliver true RS-232 performance from a single power supply ranging from +3.3V to +5.0V. ■ Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply ■ Minimum 120Kbps Data Rate Under Full Load ■ 1µA Low-Power Shutdown with Receivers Active (SP3222) ■Interoperable with RS-232 down to +2.7V power source ■ Enhanced ESD Specifications: ±15kV Human Body Model ±15kV IEC1000-4-2 Air Discharge ±8kV IEC1000-4-2 Contact Discharge |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- SP3232EEN |
| Ihs Manufacturer | Original |
| Package Description | SOP, SOP16,.25 |
| Reach Compliance Code | Unknown |
| Samacsys Manufacturer | SIP |
| Differential Output | NO |
| Driver Number of Bits | 2 |
| Input Characteristics | SCHMITT TRIGGER |
| Interface IC Type | LINE TRANSCEIVER |
| Interface Standard | EIA-232; EIA-232-D; EIA-232-F; V.24; V.28; EIA-562; TIA-232; TIA-232-F; TIA-562 |
| Length | 9.901 mm |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 2 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Out Swing-Min | 10 V |
| Output Low Current-Max | 0.0016 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP16,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 240 |
| Qualification Status | Not Qualified |
| Receive Delay-Max | |
| Receiver Number of Bits | 2 |
| Seated Height-Max | 1.748 mm |
| Supply Current-Max | 1 mA |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 3 V |
| Supply Voltage-Nom | 3.3 V |
| Surface Mount | YES |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Width | 3.895 mm |

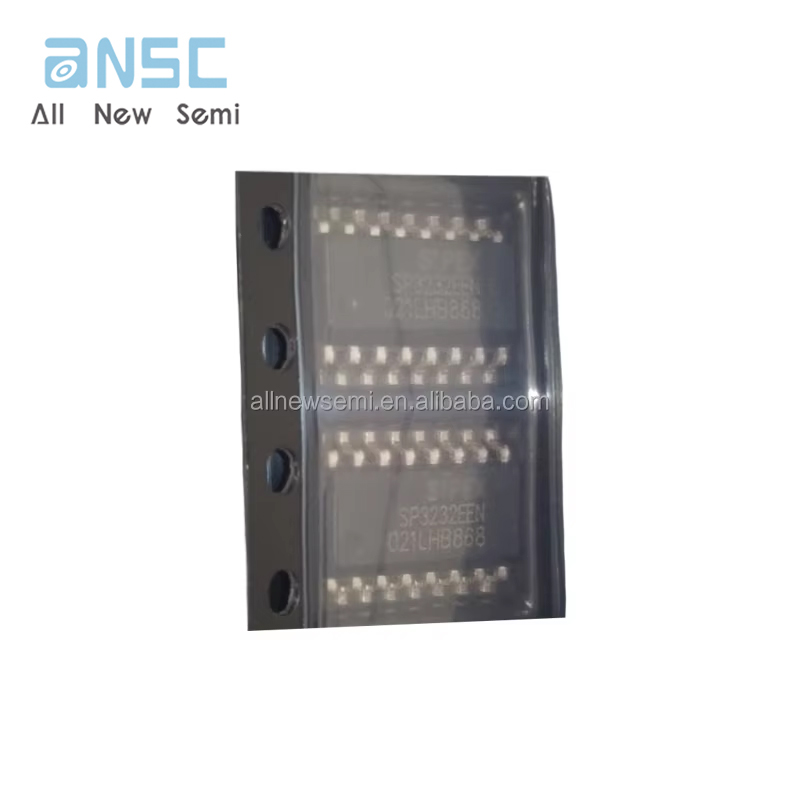

Actual image of the product

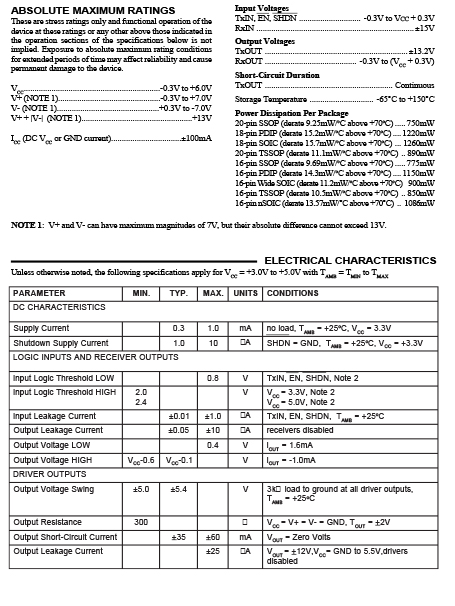

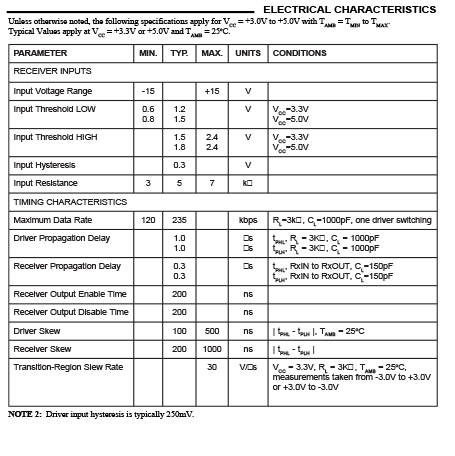

Product datasheet
For more information, please download
