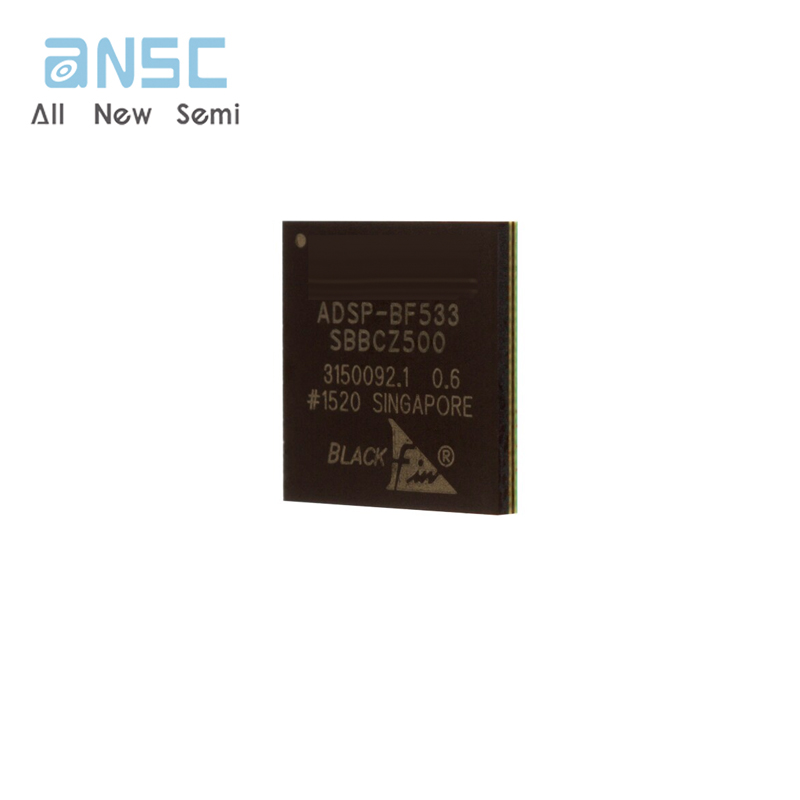

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original ADSP-BF533SBBCZ500 IC DSP CTLR 16B 500MHZ 160CSBGA Fixed Point Digital Signal Processor
Manufacturer Product Number
ADSP-BF533SBBCZ500
Description
ADSP-BF533SBBCZ500 IC DSP CTLR 16B 500MHZ 160CSBGA Fixed Point Digital Signal Processor (DSP) 500MHz 160-CSPBGA (12x12)
Package Condition
tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| ADSP-BF533SBBCZ500 Description The ADSP-BF531/ADSP-BF532/ADSP-BF533 processors are members of the Blackfin family of products, incorporating the Intel Micro Signal Architecture (MSA). Black fin processors combine a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC like microprocessor instruction set, and single instruction, multiple data (SIMD) multimedia capabilities into a single instruction set architecture. ADSP-BF533SBBCZ500 Features Up to 600 MHz high performance Blackfin processor Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, 40-bit shifter RISC-like register and instruction model for ease of programming and compiler-friendly support Advanced debug, trace, and performance monitoring 0.85 V to 1.30 V core VDD with on-chip voltage regulation 1.8 V, 2.5 V, and 3.3 V compliant I/O 160-ball CSP_BGA, 169-ball PBGA, and 176-lead LQFP packages MEMORY Up to 148K bytes of on-chip memory: 16K bytes of instruction SRAM/Cache Up to 64K bytes of instruction SRAM Up to32K bytes of data SRAM/Cache Up to32K bytes of data SRAM 4K bytes of scratchpad SRAM Memory management unit providing memory protection External memory controller with glueless support for SDRAM, SRAM, flash, and ROM Flexible memory booting options from SPI® and external memory PERIPHERALS Parallel peripheral interface PPI/GPIO, supporting ITU-R 656 video data formats Two dual-channel, full duplex synchronous serial ports, supporting eight stereo I2S channels Four memory-to-memory DMAs Eight peripheral DMAs SPI-compatible port Three 32-bit timer/counters with PWM support Real-time clock and watchdog timer 32-bit core timer Up to 16 general-purpose I/O pins (GPIO) UART with support for IrDA® Event handler Debug/JTAG interface On-chip PLL capable of 0.5 to 64 frequency multiplication |
Product Description
| Type | Description |
| PART# | ADSP-BF533SBBCZ500 |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| DSP (Digital Signal Processors) | |
| Manufacturer | Original |
| Series | Blackfin® |
| Packaging | Tray |
| Part Status | Active |
| Type | Fixed Point |
| Interface | SPI, SSP, UART |
| Clock Rate | 500MHz |
| Non-Volatile Memory | ROM (1kB) |
| On-Chip RAM | 148kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.20V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 160-LFBGA, CSPBGA |
| Supplier Device Package | 160-CSPBGA (12x12) |
| Base Product Number | ADSP-BF533 |
Actual image of the product
