Image shown is a representation only.

Exact specifications should be obtained from the product data sheet.

You can contact me for the best price Original TMC2226-SA-T IC TSSOP-28 Motor Drivers HTSSOP28 Hot sale Original

Manufacturer
Original
Manufacturer Product Number
TMC2226-SA-T
Description

Original TMC2226-SA-T IC TSSOP-28 Motor Drivers HTSSOP28 Hot sale Original

Package Condition
Original
Datasheet
TMC2226-SA-T
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Product characteristics
It is suitable for two-phase stepper motors with coil currents up to 2.8A (peak) and 2A RMS
STEP/DIR interface with 8, 16, 32, or 64 microstep pin settings
256 microsteps are achieved with MicroPlyer interpolation
StealthChop2 silent motor operation
SpreadCycle highly dynamic motor control chopper
StallGuard4 load and stall detection for StealthChop mode
CoolStep current control for energy savings of up to 75%
Low RDSon, low heat generation, 170mΩ at the low end, 170mΩ at the high end (typical, at 25°C)
Voltage range 4.75... 29V DC
Low-power standby mode to meet standby energy consumption regulations
Optional internal sense resistor (no external sense resistor required)
Passive braking, freewheeling and automatic power-off functions
Single-bus UART and OTP with advanced configuration options
Integrated pulse generator for independent motion control
Comprehensive protection and diagnostic capabilities
Thermally optimized HTSSOP package for easy optical inspection
Applications:
Compatible with design upgrades
3D printer
Printers, point-of-sale systems
Office and home automation
Textile and sewing machines
CCTV, security system
ATM, cash circulation machine
HVAC
Battery-powered devices

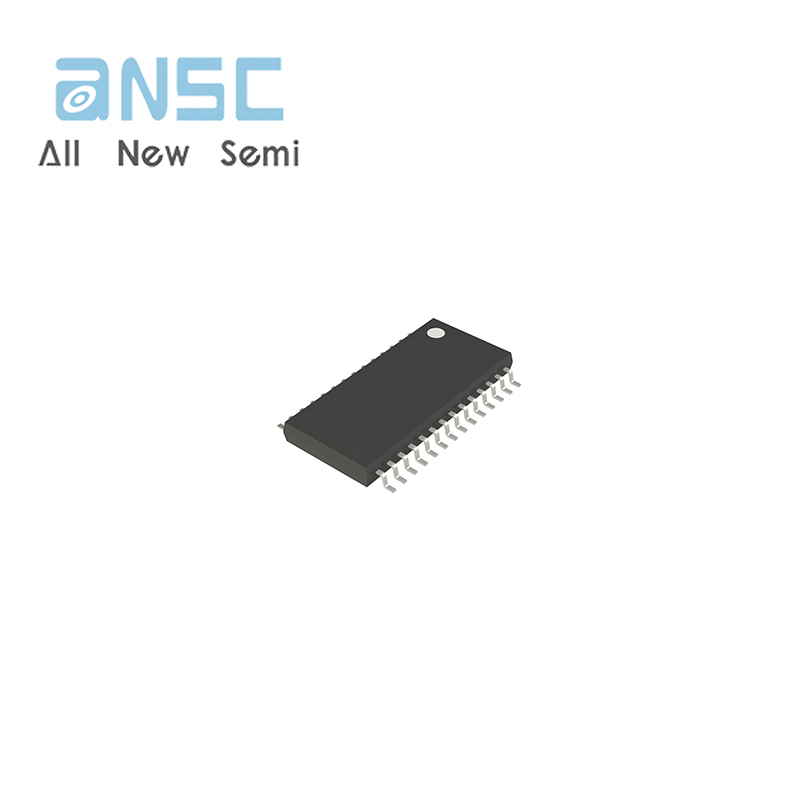

Actual image of the product
