Product Descriptions

Increasing speed

The standard and integrated universal serial controllers Z16C30, Z16C35, and Z16C32 offer faster performance. Features include:

• Dual full-duplex channels (Z16C30)

• Single full-duplex channel (Z16C32)

• Accommodates two baud rate generators and one digital phase-locked loop (on each channel)

• 2 DMA control signals per channel (Z80C30/Z85C30 only)

Offering a fully integrated solution

The standard serial and integrated communications controllers, Z85C30 and Z16C35, allow you to easily implement a fully integrated solution for many networking applications. The chips’ features include:

• Dual full-duplex channels

• Ability to accommodate a crystal oscillator, baud rate generator, and digital phase-locked loop on each channel

• Processing speeds up to 4 Mbps

• Multi-protocol format (async, monosync, bisync, SDLC/HDLC, SDLC/HDLC loop)

• Encodes in the following modes: NRZ, NRZI, FM0, FM1, and Manchester

• CRC-16 or CRC-CCITT error detection

• 1-byte transmit FIF0/3-byte receive FIF0

• 2 transmit and 2 receive DMA channels (16C35 only)

Product Features

• Processing speeds up to 10 Mbps (Z16C30)

• Processing speeds up to 20 Mbps (Z16C32)

• Multi-protocol format (async, monosync, slaved monosync, bisync, isochronous, nine-bit, SDLC/HDLC, SDLC/HDLC loop)

• Encodes in the following modes:

NRZ, NRZI-Mark,NRZI-Space, Bi-Phase-Mark (FM1), Bi-Phase-Space (FM0), Bi-Phase-Level (Manchester), Differential Bi-Phase-Level

• CRC-32, CRC-16, and CRC-CCITT

• 32-byte transmit FIF0/32-byte receive FIF0

• 2 DMA control signals per channel (16C30 only)

• Transmit and receive DMA controllers with single buffer, pipelined, array, and linked-list modes (16C32 only)

Specifications

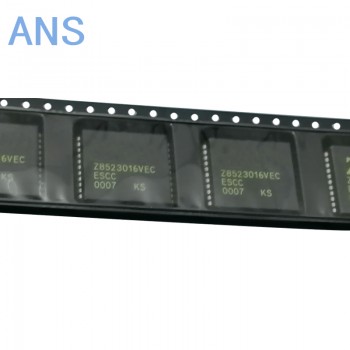

Actual product photos
