Hot selling 8.5 inch wheel hub motor, one to two drive set, outdoor patrol car, outdoor robot

Manufacturer Product Number
MT8501
Description

8.5 inch wheel hub motor one to two drive

Package Condition
original

Specifications

MT8501 8.5 inch hub brushless motor
Rated voltage 36V, other voltages can also work normally
Rated power 350W
Rated torque 12N.m
Rated speed 500rpm/min

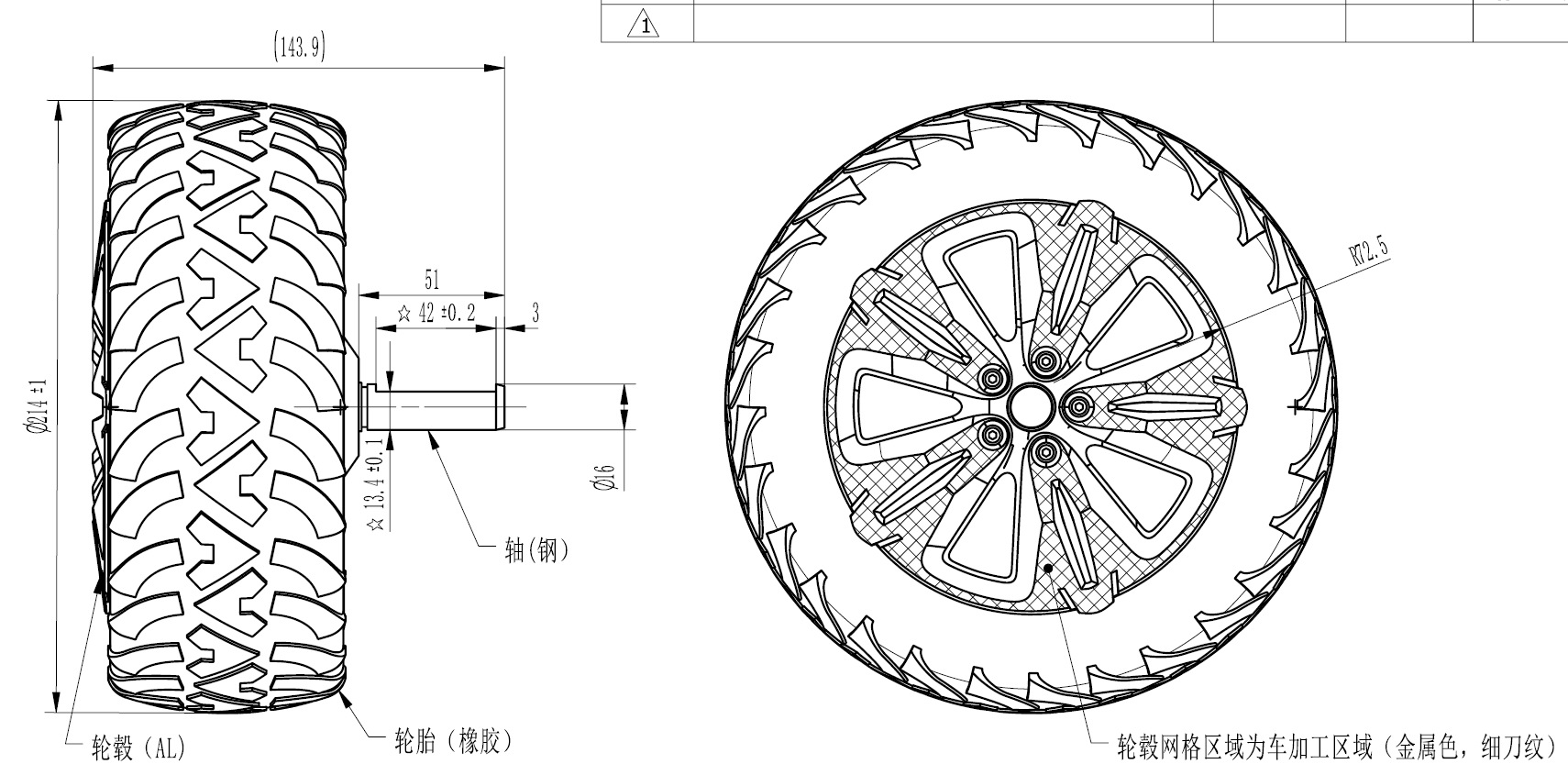

Standard diameter 214mm
Output method yellow green blue three-phase wire bullet head, Hall SM-5P wire

MT8501

Name Specification Remarks
Product model MDR800
Rated power 480W*2@24V，720W*2@36V，960W*2@48V
Rated power DC15-60V
Limiting current 20A*2
Communication interface 1 RS232 interface, fixed baud rate of 115200, 8bitbyte, stop bit: 1 Only one communication interface can be used at the same time, and only one communication protocol (serial port, 422, CAN) is included in the factory
1 TTL (UART) interface with a baud rate of 115200
1 RS422 interface (4-wire RS485)
1 RS422 interface (4-wire RS485)
Control mode FOC
Position feedback interface three-phase Hall interface
A/B/Z phase encoder interface
Switch There is an emergency stop switch interface, which can be achieved by short circuiting two wires by pressing the button
Indicator light 1 power on indicator, 1 data receiving indicator, and 1 emergency stop indicator

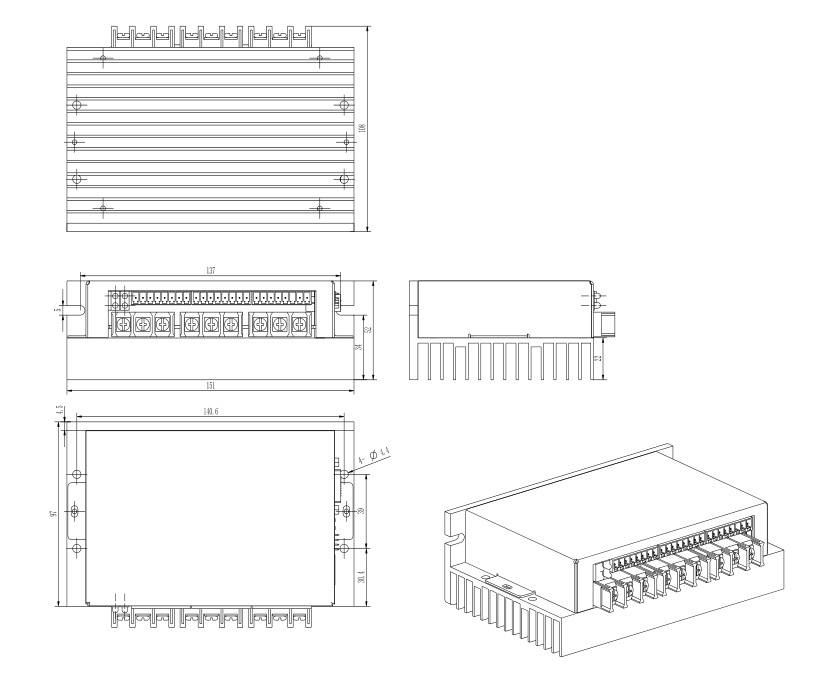

Product size 151mm in length, 97mm in width, and 52mm in height

驱动器尺寸图片

Payment&Transportation

详情8.1

Official Certificate&Certificate

详情页3.1

Multiple product supply

详情5.1

Company office environment

详情6.1

Warehouse Real Shot


Standard packaging

详情9
