Hot sale Original 19-213SURC/S530-A3/TR8 LED Optoelectronics Visible LED Single Color LED Water Clear, 1.2mm SMD 2PIN
Manufacturer Product Number
19-213SURC/S530-A3/TR8
Description
Original 19-213SURC/S530-A3/TR8 LED Optoelectronics Visible LED Single Color LED Water Clear, 1.2mm SMD 2PIN
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The 19-213SURC/S530-A3/TR8 is a high-quality, surface mountable single-color LED designed for various indication applications. This rectangular-shaped LED features a peak wavelength of 632nm and a dominant wavelength of 624nm, making it suitable for a wide range of lighting needs. With its compact dimensions (1.60mm x 0.80mm) and clear lens, this LED is ideal for applications where space is limited. Features Peak Wavelength: 632nm Dominant Wavelength: 624nm Forward Voltage (Typ): 2V Viewing Angle: 120° Size / Dimension: 1.60mm x 0.80mm Shape: Rectangular RoHS Status: ROHS3 Compliant Reverse Voltage-Max: 5V Radiation Hardening: No Pbfree Code: Yes Part Status: Active Packing Method: Tape and Reel 7" Packaging: Tape & Reel (TR) Package / Case: 0603 (1608 Metric) Optoelectronic Device Type: Single Color LED Operating Temperature (Min.): -40°C Operating Temperature (Max.): 85°C Number of Terminations: 2 Number of Pins: 2 Number of LEDs: 1 Number of Functions: 1 Mounting Type: Surface Mount Millicandela Rating: 54mcd Luminous Intensity: 54 mcd Lens Transparency: Clear Lens Style: Rectangle with Flat Top Lens Size: 1.20mm x 0.80mm Lens Color: Colorless Lead Free: Lead Free Height: 600μm Forward Current: 20mA ApplicationsPrimary Applications: General indication lighting in consumer electronics. Automotive dashboard lighting. Medical device indicators. Secondary Applications: Industrial control panel indicators. Home appliances status lights. IoT device status indicators. Alternative Parts |
Product Description
| Type | Description |
| ANSC PART# | ANSC - 19-213SURC/S530-A3/TR8 |
| Category | Optoelectronics |
| LED Indication - Discrete | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Color | Red |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 54mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm |
| Wavelength - Peak | 632nm |
| Features | - |
| Grade | - |
| Qualification | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 603 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.70mm |
| Base Product Number | 19-213SURC/S530 |
Product Photos

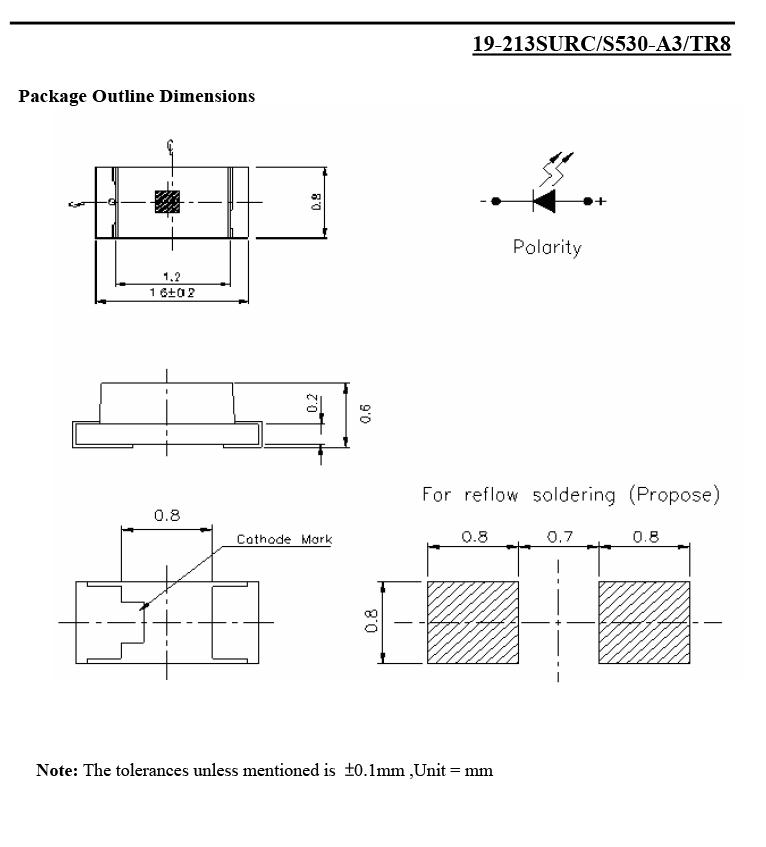

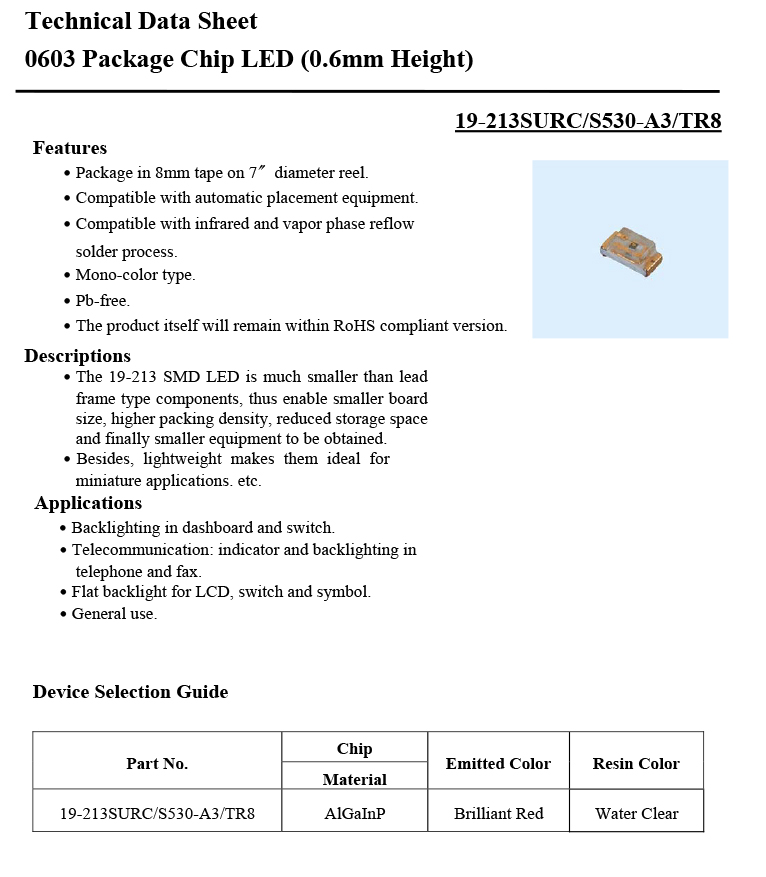

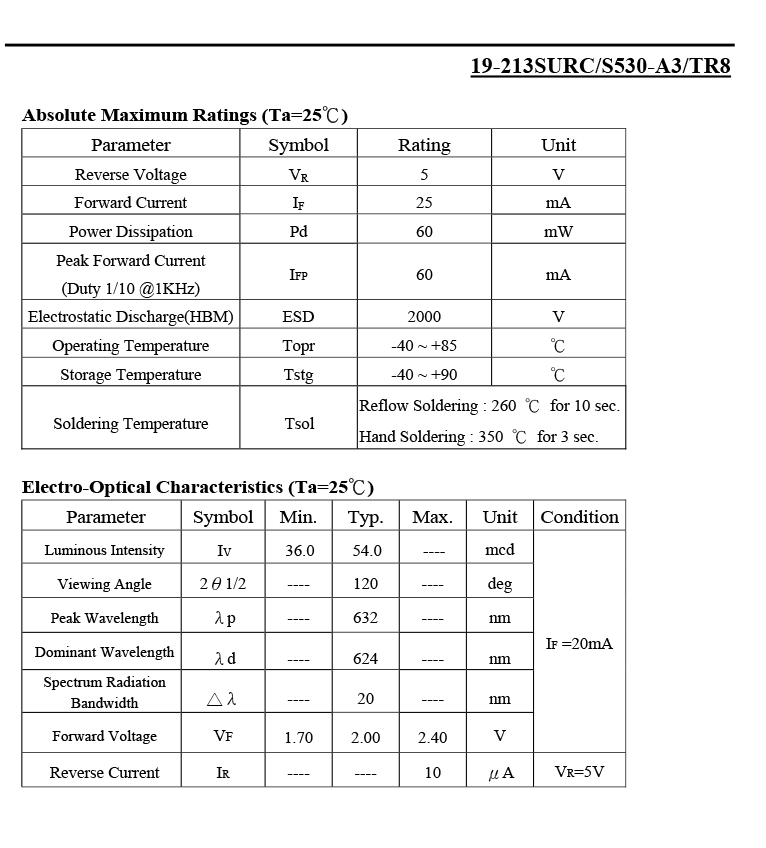

Product datasheet
For more information, please download
