Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale original AA4040CGCK LED GREEN CLEAR SMD R/A Green 570nm LED Indication - Discrete 2.1V 2-SMD, Boomerang
Manufacturer Product Number
AA4040CGCK
Description
AA4040CGCK Green 570nm LED Indication - Discrete 2.1V 2-SMD, Boomerang
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: AA4040CGCK Green Single Color LED 1. Description The AA4040CGCK is a high-quality, green single color LED designed for various optoelectronic applications. This 2-SMD, boomerang-shaped LED features a peak wavelength of 574nm and a dominant wavelength of 570nm, making it ideal for indicating and signaling purposes. With its silver (Ag) terminal finish and surface mount right-angle mounting type, this LED is easy to integrate into modern electronic devices. 2. Features Wavelength and Dominant Wavelength: The AA4040CGCK emits light at a peak wavelength of 574nm and a dominant wavelength of 570nm, ensuring clear visibility in various lighting conditions. Voltage and Power Rating: This LED operates at a forward voltage (Vf) of 2.1V (typical) and has a power rating of 75mW, providing reliable performance. Viewing Angle and Terminal Pitch: With a viewing angle of 90° and a terminal pitch of 2.5mm, this LED offers broad visibility and easy connection. RoHS Compliance and Lead-Free: The AA4040CGCK is ROHS3 compliant and lead-free, ensuring environmental safety. Moisture Sensitivity Level (MSL): It has an MSL rating of 4 (72 hours), indicating moderate sensitivity to moisture during storage. 3. Applications Primary Applications: Indication and Signaling: The green color makes it suitable for indicating power status, alarms, or other critical signals in various electronic devices. Display and Illumination: It can be used in displays where green illumination is required. Secondary Applications: Automotive Lighting: Due to its high visibility under different lighting conditions, it can be used in automotive dashboards or warning lights. Medical Devices: Its clear visibility makes it suitable for medical equipment displays or indicators. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - AA4040CGCK |
| Category | Optoelectronics |
| LED Indication - Discrete | |
| Mfr | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Color | Green |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 70mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 570nm |
| Wavelength - Peak | 574nm |
| Features | - |
| Package / Case | 2-SMD, Boomerang |
| Supplier Device Package | SMD |
| Size / Dimension | 4.00mm L x 3.60mm W |
| Height (Max) | 4.00mm |
| Base Product Number | AA4040 |

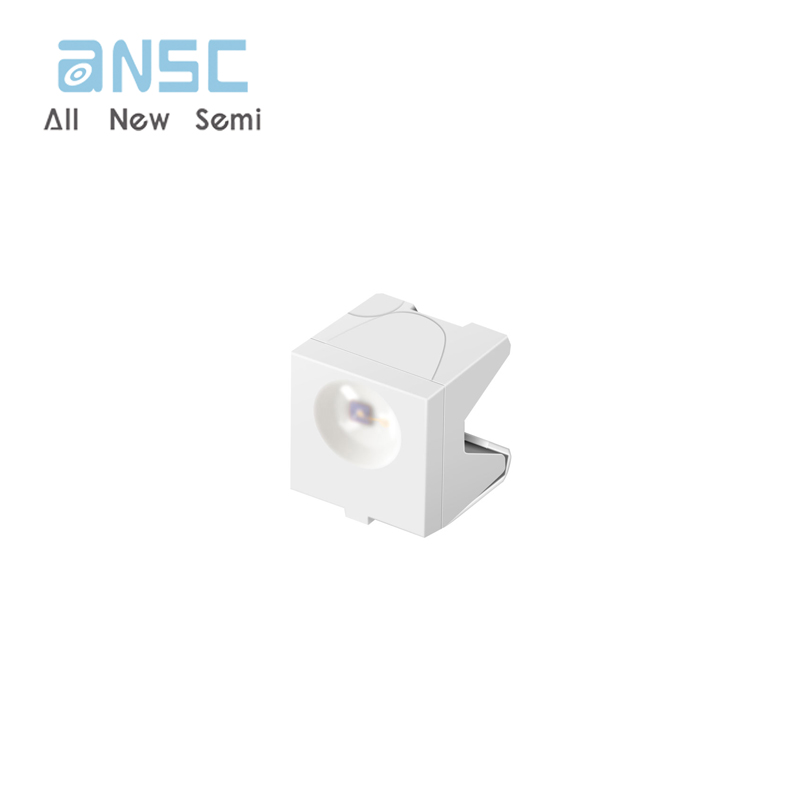

Actual image of the product

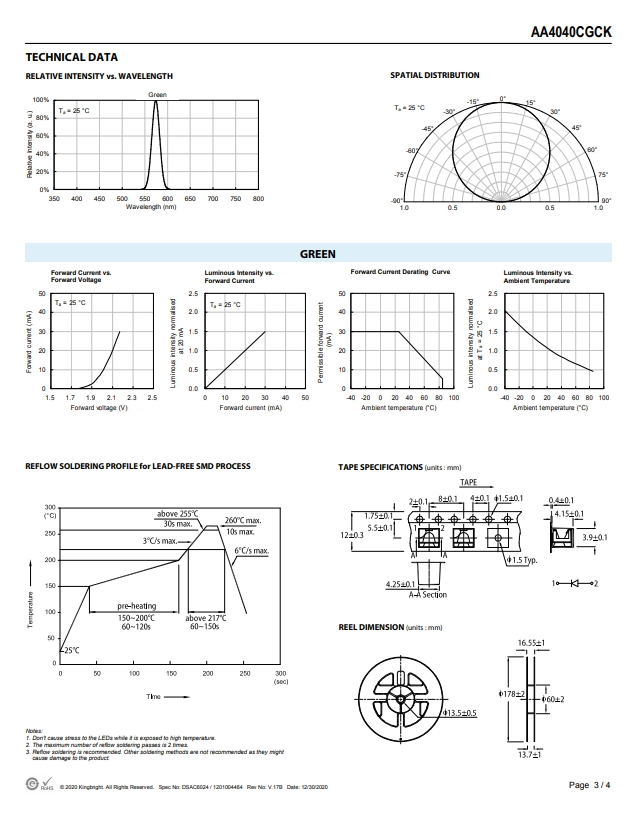

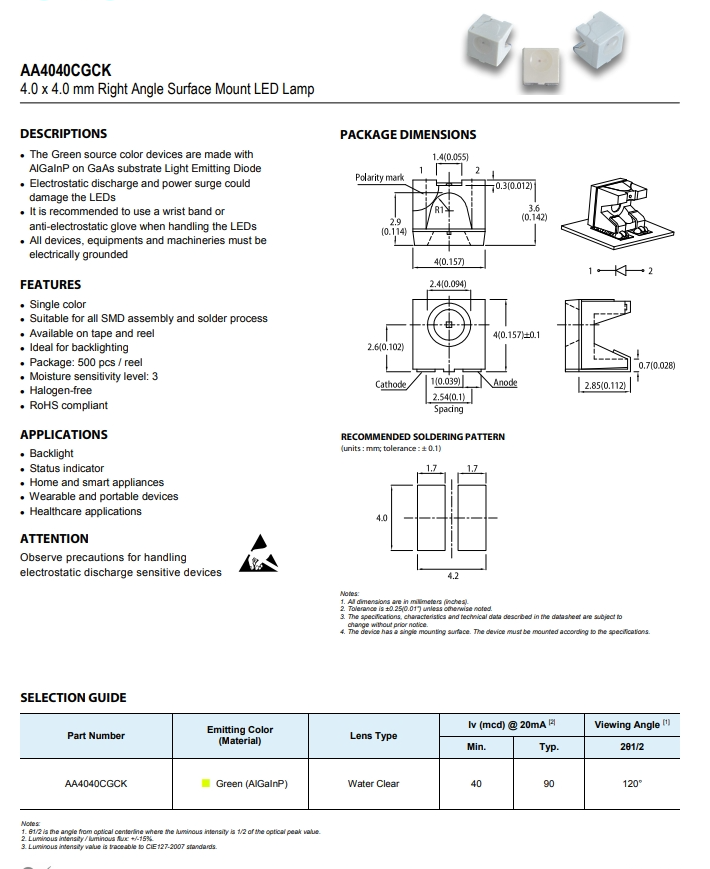

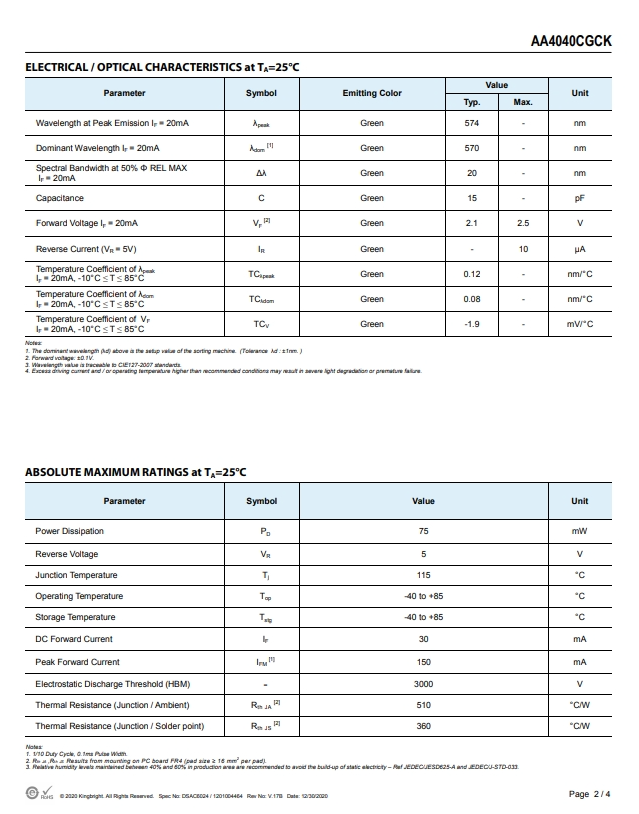

Product datasheet
For more information, please download
