Hot-selling and scarce HSMC-A100-R00J1 Red 626nm LED Indication - Discrete 1.9V 2-PLCC spot stock
Manufacturer Product Number
HSMC-A100-R00J1
Description
HSMC-A100-R00J1 Red 626nm LED Indication - Discrete 1.9V 2-PLCC spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This family of SMT LEDs ispackaged in the industry standardPLCC-2 package . These SMTLEDs have high reliabilityperformance and are designed towork under a wide range ofenvironmental conditions . Thishigh reliability feature makesthem ideally suited to be usedunder harsh interior automotiveas well as interior signsapplication conditions .
To facilitate easy pick & placeassembly, the LEDs are packed inEIA-compliant tape and reel .Every reel will be shipped insingle intensity and color bin,except red color, to provide closeuniformity .
These LEDs are compatible withIR solder reflow process . Due tothe high reliability feature ofthese products, they can also bemounted using through-the-wavesoldering process .
The super wide viewing angle at120˚ makes these LEDs ideallysuited for panel, push button, orgeneral backlighting inautomotive interior, officeequipment, industrial equipment,and home appliances . The flat topemitting surface makes it easy forthese LEDs to mate with lightpipes .With the built-in reflectorpushing up the intensity of thelight output, these LEDs are alsosuitable to be used as LED pixelsin interior electronic signs .
Product Features
• Industry standard PLCC-2 package
• High reliability LED package
• High brightness using AlInGaP and InGaN dice technologies
• Available in full selection of colors
• Super wide viewing angle at 120˚
• Available in 8 mm carrier tape on 7 inch reel (2000 pieces)
• Compatible with both IR and TTW soldering process
Product Applications
• Interior automotive
–Instrument panel backlighting
–Central console backlighting
–Cabin backlighting
• Electronic signs and signals
–Interior full color sign
–Variable message sign
• Office automation, home appliances, industrial equipment
–Front panel backlighting
–Push button backlighting
–Display backlighting
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-HSMC-A100-R00J1 |
| Category | Optoelectronics |
| LED Indication - Discrete | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Color | Red |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 140mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.20mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 626nm |
| Wavelength - Peak | 635nm |
| Package / Case | 2-PLCC |
| Supplier Device Package | 2-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
| Base Product Number | HSMC-A100 |

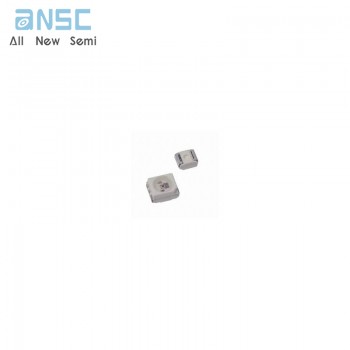

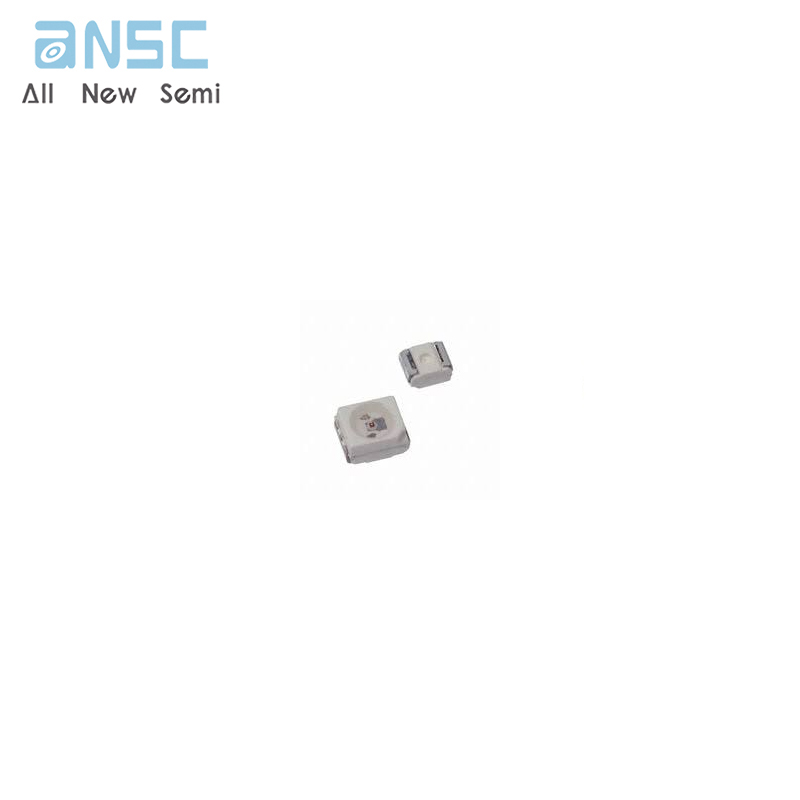

Product Photos
