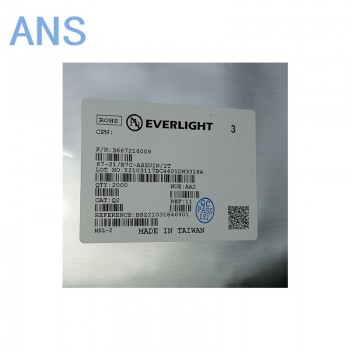

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot selling One stop supply of electronic components 67-21/B7C-AS2U1N/2T Blue 471nm LED Indication - Discrete 3.2V 2-PLCC
Manufacturer Product Number
67-21/B7C-AS2U1N/2T
Description
LED Uni-Color Blue 468nm 2-Pin PLCC T/R
Package Condition
REEL
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The 67-21 series is available in soft orange, green, blue and yellow. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
Product Features
• P-LCC-2 package.
• White package.
• Optical indicator.
• Colorless clear window.
• Wide viewing angle.
• Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
• Computable with automatic placement equipment.
• Available on tape and reel (8mm Tape).
• Pb-free
• The product itself will remain within RoHS compliant version
Product Applications
• Automotive: backlighting in dashboard and switch.
• Telecommunication: indicator and backlighting in telephone and fax.
• Flat backlight for LCD, switch and symbol.
• Light pipe application.
• General use.
Specifications
|
Attribute
|
Attribute value
|
|
ANSM-Part#
|
ANSM-67-21/B7C-AS2U1N/2T
|
|
Category
|
Optoelectronics
|
|
LED Indication - Discrete
|
|
|
Mfr
|
-
|
|
Series
|
-
|
|
Package
|
Tape & Reel (TR)
|
|
Product Status
|
Active
|
|
Color
|
Blue
|
|
Configuration
|
Standard
|
|
Lens Color
|
Colorless
|
|
Lens Transparency
|
Clear
|
|
Millicandela Rating
|
395mcd
|
|
Lens Style
|
Round with Flat Top
|
|
Lens Size
|
2.40mm Dia
|
|
Voltage - Forward (Vf) (Typ)
|
3.2V
|
|
Current - Test
|
20mA
|
|
Viewing Angle
|
120°
|
|
Mounting Type
|
Surface Mount
|
|
Wavelength - Dominant
|
471nm
|
|
Wavelength - Peak
|
468nm
|
|
Features
|
-
|
|
Package / Case
|
2-PLCC
|
|
Supplier Device Package
|
2-PLCC
|
|
Size / Dimension
|
3.20mm L x 2.80mm W
|
|
Height (Max)
|
2.10mm
|
