Hot-selling and scarce 74HC244D Octal buffer/line driver 3-state SOP20 spot stock
Manufacturer Product Number
74HC244D
Description
74HC244D Octal buffer/line driver; 3-state SOP20 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The 74HC/HCT244 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.
The 74HC/HCT244 are octal non-inverting buffer/line drivers with 3-state outputs. The 3-state outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE causes the outputs to assume a high impedance OFF-state. The “244” is identical to the “240” but has non-inverting outputs.
Product Features
• Output capability: bus driver
• ICC category: MSI
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74HC244D |
| Category | Integrated Circuits (ICs) |
| Logic, Buffers, Drivers | |
| Receivers, Transceivers | |
| Manufacturer | - |
| Series | 74HC |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Obsolete |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Output Type | 3-State |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | 74HC244 |

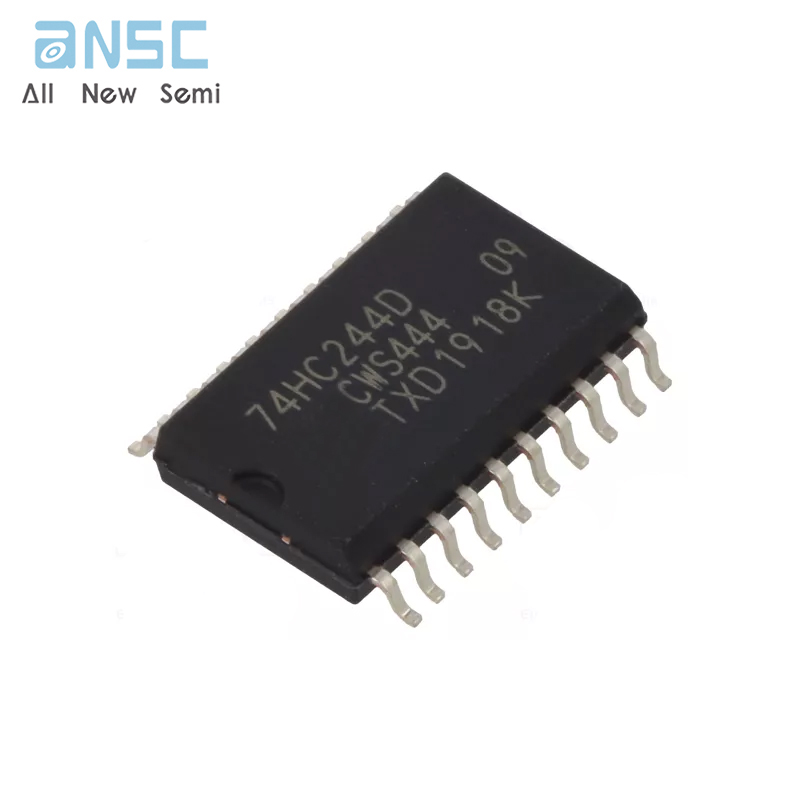

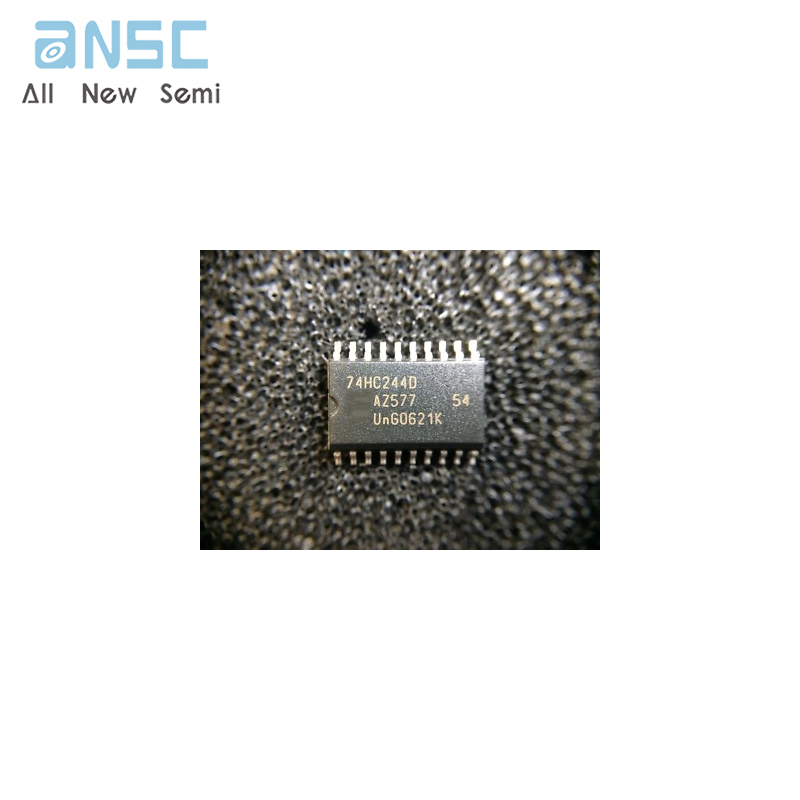

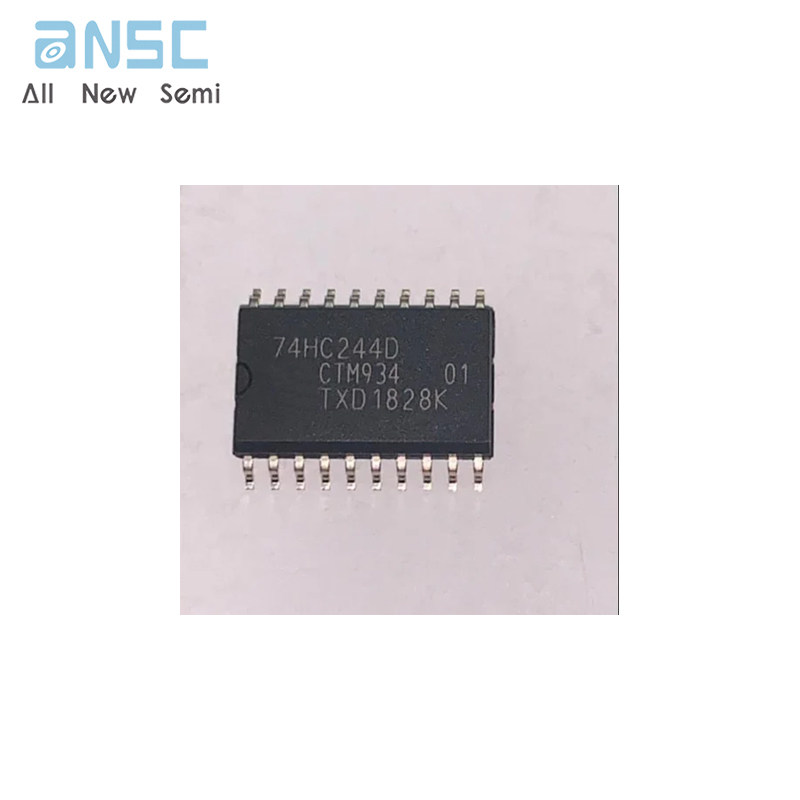

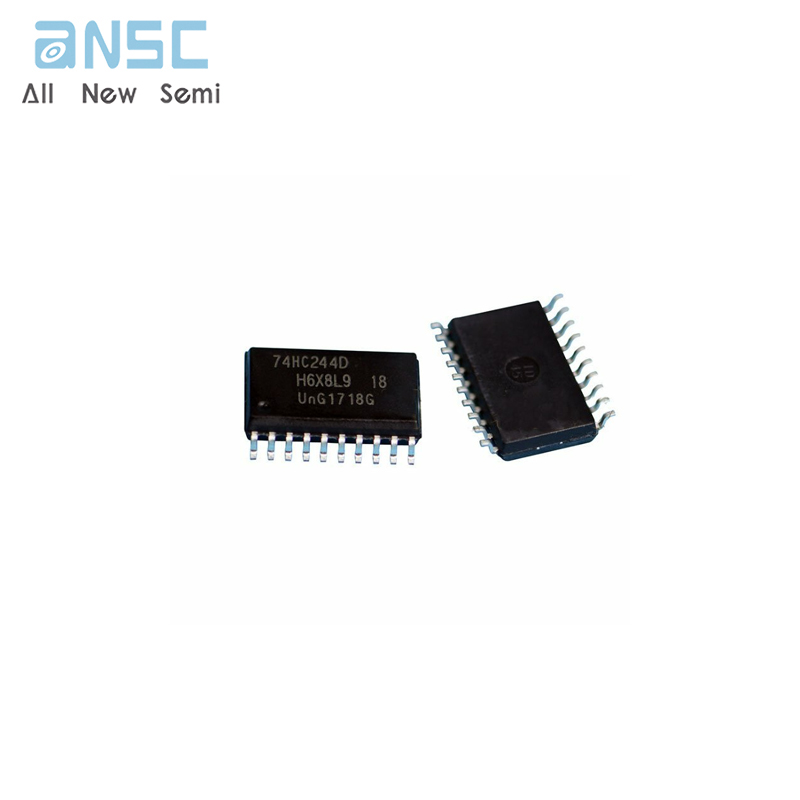

Product Photos
For more product information, please download the PDF
