Hot-selling and scarce MTFC2GMDEA-0M WT NAND Memory IC 16Gbit BGA
Manufacturer Product Number
MTFC2GMDEA-0M WT
Description
MTFC2GMDEA-0M WT NAND Memory IC 16Gbit BGA
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• MultiMediaCard (MMC) controller and NAND Flash
• 153- or 169-ball WFBGA/VFBGA/LFBGA (RoHS 6/6- compliant)
• VCC: 2.7–3.6V
• VCCQ (dual voltage): 1.65–1.95V; 2.7–3.6V
• Temperature ranges
– Operating temperature: –25˚C to +85˚C
– Storage temperature: –40˚C to +85˚C
• Typical current consumption
– Standby current: 110µA for 2GB, 120µA for 4GB, 8GB, 16GB; 140µA for 32G; 160µA for 64GB
– Active current (RMS): 70mA (2GB); 80mA (4GB, 8GB, 16GB, 32GB, 64GB)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MTFC2GMDEA-0M WT |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | - |
| Series | e•MMC™ |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NAND |
| Memory Size | 16Gbit |
| Memory Organization | 2G x 8 |
| Memory Interface | MMC |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 153-WFBGA |
| Supplier Device Package | 153-WFBGA (11.5x13) |
| Base Product Number | MTFC2G |

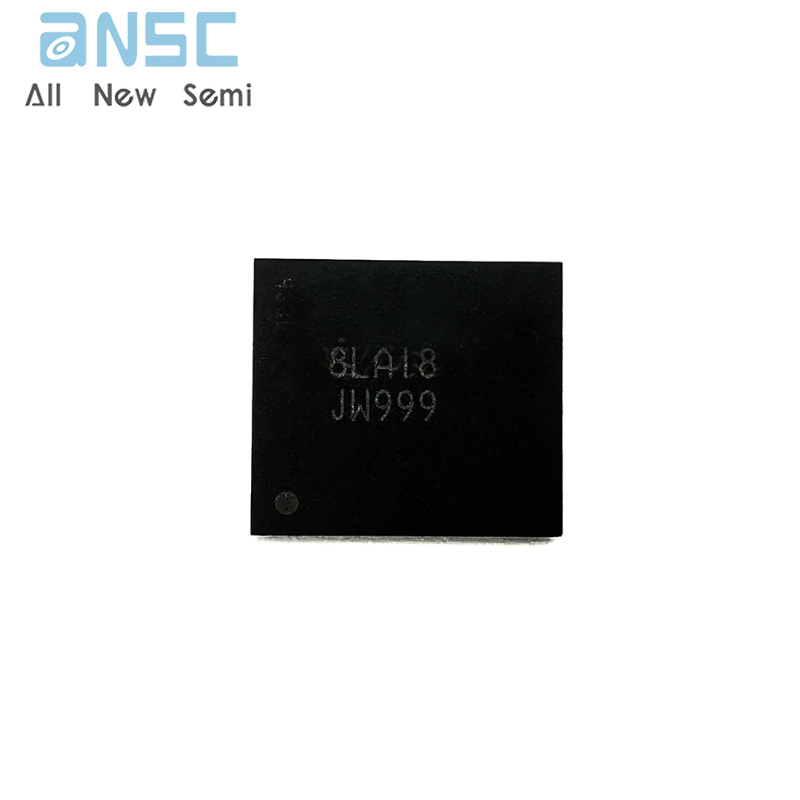

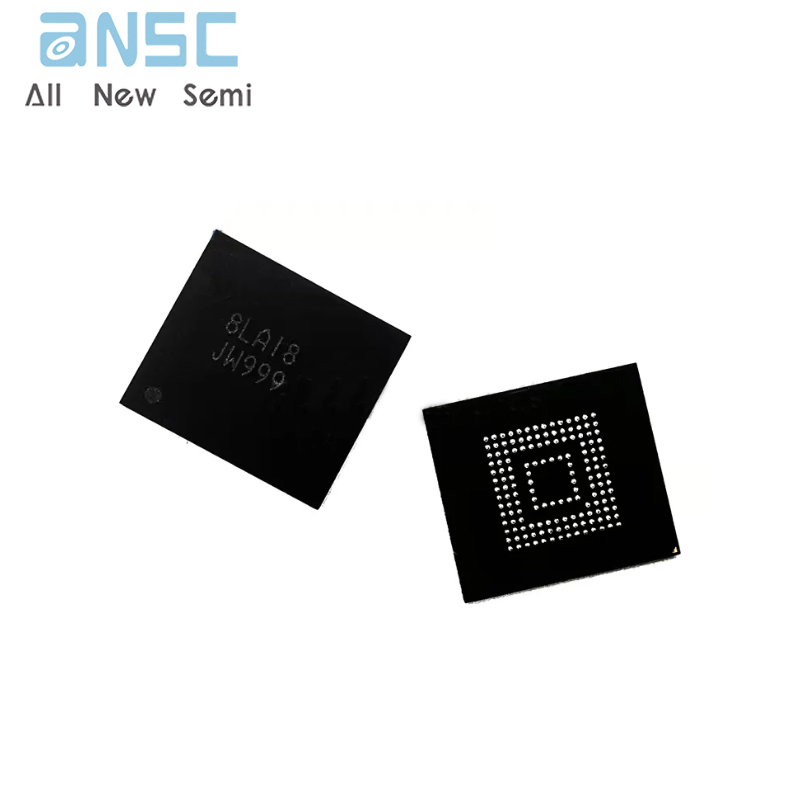

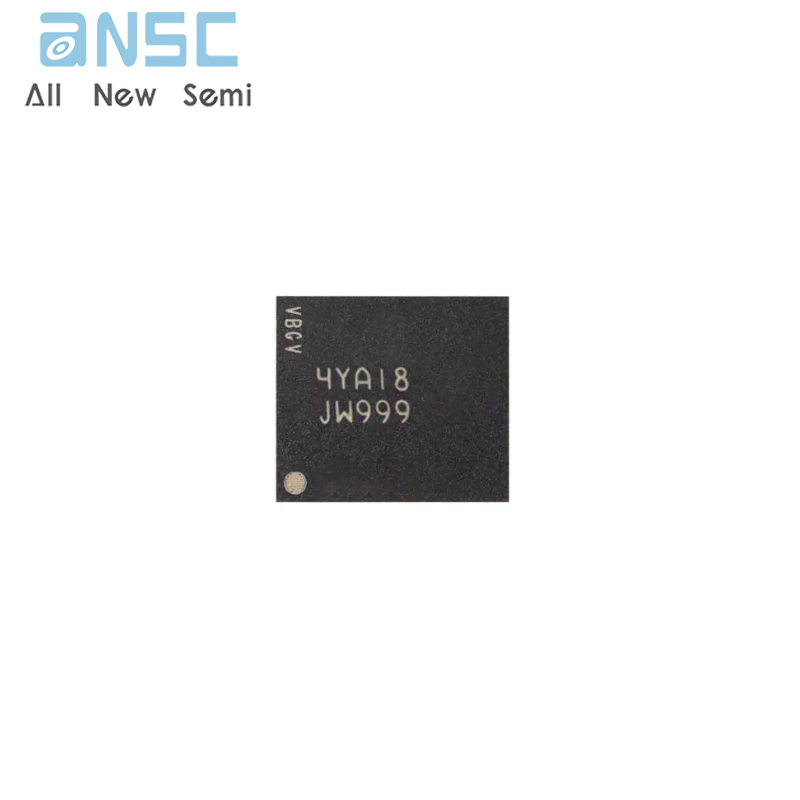

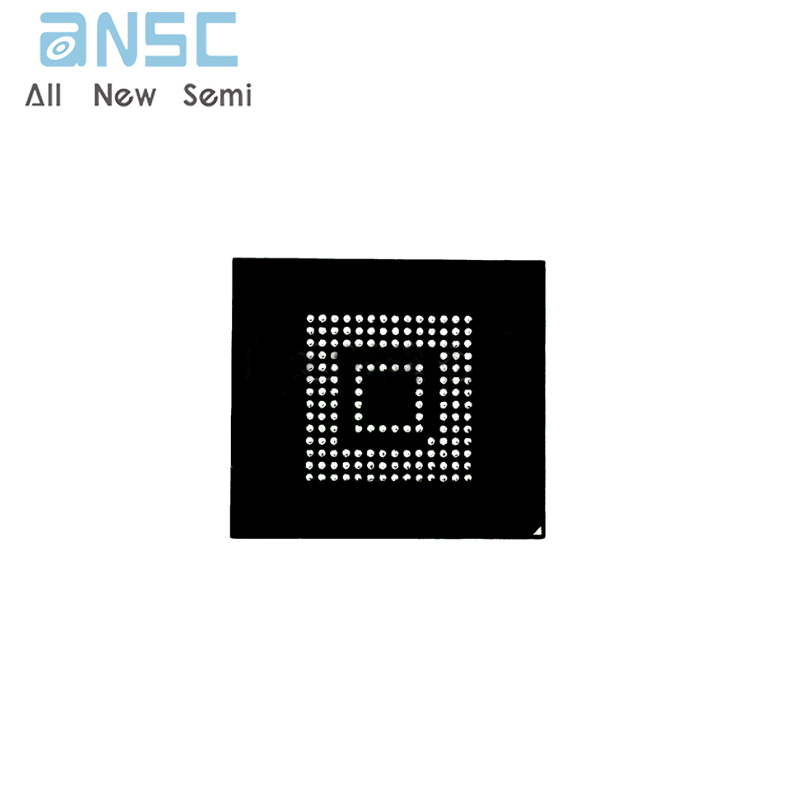

Product Photos
For more product information, please download the PDF
