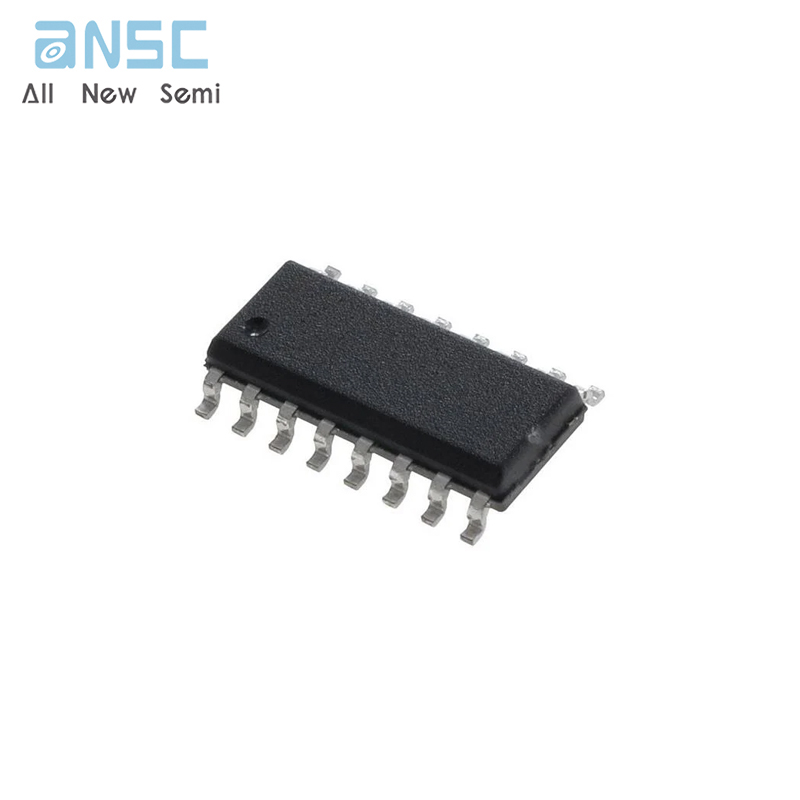

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce S70FL256P0XMFI001 FLASH - NOR Memory IC 256Mbit SPI - Quad I/O 104 MHz 16-SOIC spot stock
Manufacturer Product Number
S70FL256P0XMFI001
Description
S70FL256P0XMFI001 FLASH - NOR Memory IC 256Mbit SPI - Quad I/O 104 MHz 16-SOIC spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Single Power Supply Operation
– Full voltage range: 2.7 to 3.6V read and write operations
Memory Architecture
– Uniform 64 kB sectors
– Top or bottom parameter block (Two 64-kB sectors broken down into sixteen 4-kB sub-sectors each) for each Flash die
– Uniform 256 kB sectors (no 4-kB sub-sectors)
– 256-byte page size
Program
– Page Program (up to 256 bytes) in 1.5 ms (typical)
– Program operations are on a page by page basis
– Accelerated programming mode via 9V W#/ACC pin
– Quad Page Programming
Erase
– Bulk erase function for each Flash die
– Sector erase (SE) command (D8h) for 64 kB and 256 kB sectors
– Sub-sector erase (P4E) command (20h) for 4 kB sectors (for uniform 64-kB sector device only)
– Sub-sector erase (P8E) command (40h) for 8 kB sectors (for uniform 64-kB sector device only)
Cycling Endurance
– 100,000 cycles per sector typical
Data Retention
– 20 years typical
Device ID
– JEDEC standard two-byte electronic signature
– RES command one-byte electronic signature for backward compatibility
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-S70FL256P0XMFI001 |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | - |
| Series | FL-P |
| Packaging | Tube |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 256Mbit |
| Memory Organization | 32M x 8 |
| Memory Interface | SPI - Quad I/O |
| Clock Frequency | 104 MHz |
| Write Cycle Time - Word, Page | 5µs |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | S70FL256 |
Product Photos
For more product information, please download the PDF
