Product Descriptions

IP5568 is a power management SOC. It integrates wireless charging TX / Rx, qc2.0 / qc3.0 / SCP / vooc output fast charging protocol, FCP / AFC / SFCP input and output fast charging protocol, MTK PE + 1.1 & 2.0 output fast charging protocol, USB C / pd2.0 / pd3.0 input and output protocol, USB C pd3.0 PPS output protocol, and bc1.2 / apple / Samsung mobile phone charging protocol. It integrates the functions of synchronous up / down converter, lithium battery charging management, battery power indication, etc. to provide a complete power solution for fast charging mobile power bank. Two USB A ports, one USB B port and one USB C port can be connected at the same time,any single USB port can support fast charging. When two or more output ports are used at the same time, only 5V is supported. IP5568 supports wireless charging and simultaneous use of USB port, which only supports 5V.

Only one inductor is needed to realize the function of buck and boost, and only a few peripheral devices are needed in the application, which effectively reduces the size of the overall PCB and reduces the cost of BOM.

The synchronous switch boost system of IP5568 can provide the maximum output capacity of 18W, which can maintain the efficiency of more than 90 percent even when the battery voltage is low

IP5568 charger provides charging current up to 5.0A. Built in IC temperature, battery temperature and input voltage control loop, intelligent regulation of charging current.

   Product Features

 Support multiple ports +wirelss charging simultaneously

 2USB A output ports，1 USB B input port

 1 USB C input/output port，wireless charging TX/RX

 5W/10W/15W wireless charging TX/RX

 Compliant with the WPC V1.2.4 specification，support 5w/7.5w/10w/15w TX

 Support 5w/10w RX

 integrate full bridge driver，integrate voltage/current demodulator

 support FOD function

 support 1~3 coils

 Fast charge

 Every port support fast charge

 Support QC2.0/QC3.0 output

 Support FCP/AFC/SFCP input/output

 Support SCP output

 Support VOOC output

 Support MTK PE1.1&2.0 output

 Support USB C DRP input/output

 Support BC1.2/Apple/Samsung

 Integrated USB PD2.0/PD3.0 protocol

 Support PD2.0 input/output protocol

 Support PD3.0 input/output and PPS output protocol

 Support 5V/9V/12V voltage input/output

 PPS support 5~11v adjustable voltage with 20mv/step

 Charger

 Up to 5A charging current at battery port

 Adaptive charging current adjustment

 Support 4.2v/4.3v/4.35v/4.4v battery

 Boost

 Output current：

5V：3.1A 9V：2.0A 12V：1.5A

 Up to 95 percent@5V/2A efficiency with synchronous switching

 Support line compensate

 Battery level display

 Integrated 14bit ADC and coulometer

 Support 1/2/4 LED battery level indicator

 Support 88/188 nixie tube

 Auto recognition of LED number

 Adjustable battery level curve

 Others

 Support auto detect of plug in and out

 Fast charge status indicator

 Support Battery NTC and wireless charging NTC

 Enter standby mode automatically in light load

 Integrated torch-light driver

 Multiple protection,high reliability

 Inuput overvoltage and undervoltage protection

 Output overcurrent,overvoltage and short circuit protection

 Battery overcharge,over discharge and overcurrent protection

 Over temperature protection

 4KV ESD,Input voltage up to 20v（including CC pins）

 Low BOM cost

 Integrated switch power MOSFET

 Single inductor for charging and discharging

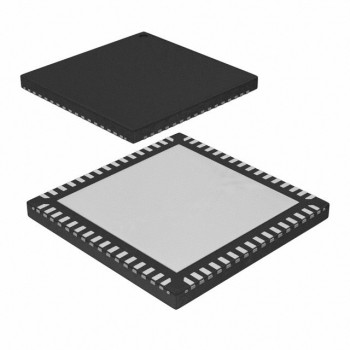

 Package size：8mm × 8mm 0.4pitch QFN64

​
