Spot sales of AT89C52-12JC 8-Bit Microcontroller with 8K Bytes Flash

Product Descriptions

The AT89C52 is a low-power, high-performance CMOS 8-bit microcomputer with 8K bytes of Flash programmable and erasable read only memory (PEROM). The device is manufactured using Atmel’s high density nonvolatile memory technology and is compatible with the industry standard 80C51 and 80C52 instruction set and pinout. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the Atmel AT89C52 is a powerful microcomputer which provides a highly flexible and cost effective solution to many embedded control applications.

Product Features

• Compatible with MCS-51™ Products

• 8K Bytes of In-System Reprogrammable Flash Memory

– Endurance: 1,000 Write/Erase Cycles

• Fully Static Operation: 0 Hz to 24 MHz

• Three-Level Program Memory Lock

• 256 x 8-Bit Internal RAM

• 32 Programmable I/O Lines

• Three 16-Bit Timer/Counters

• Eight Interrupt Sources

• Programmable Serial Channel

• Low Power Idle and Power Down Modes

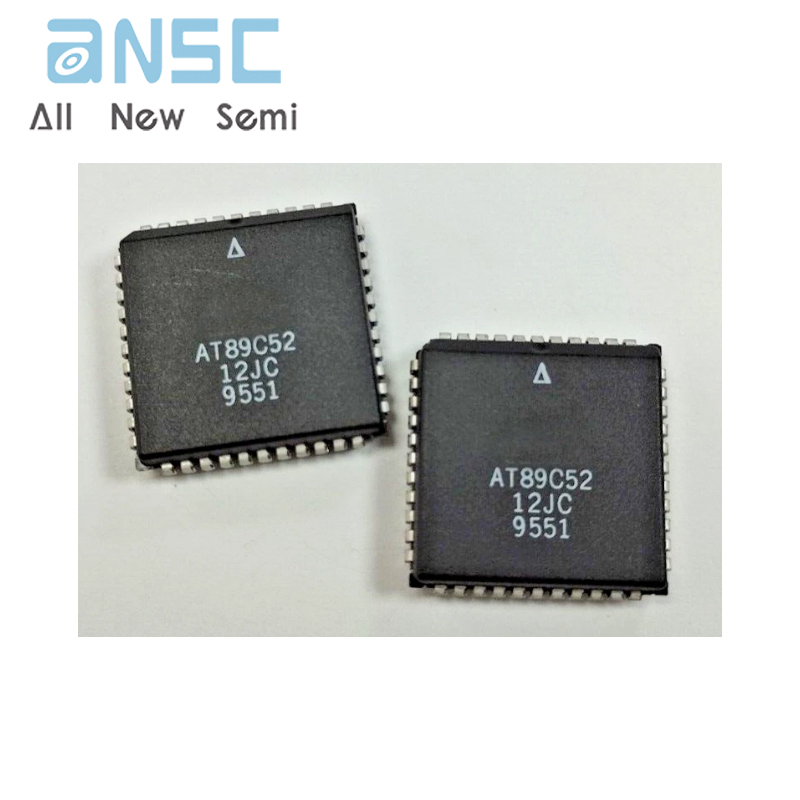

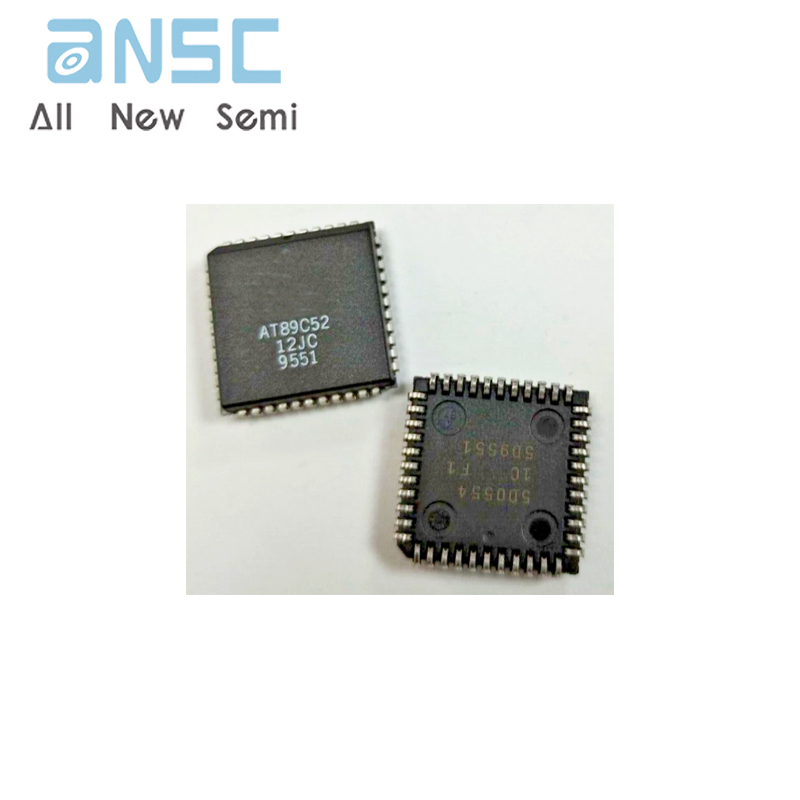

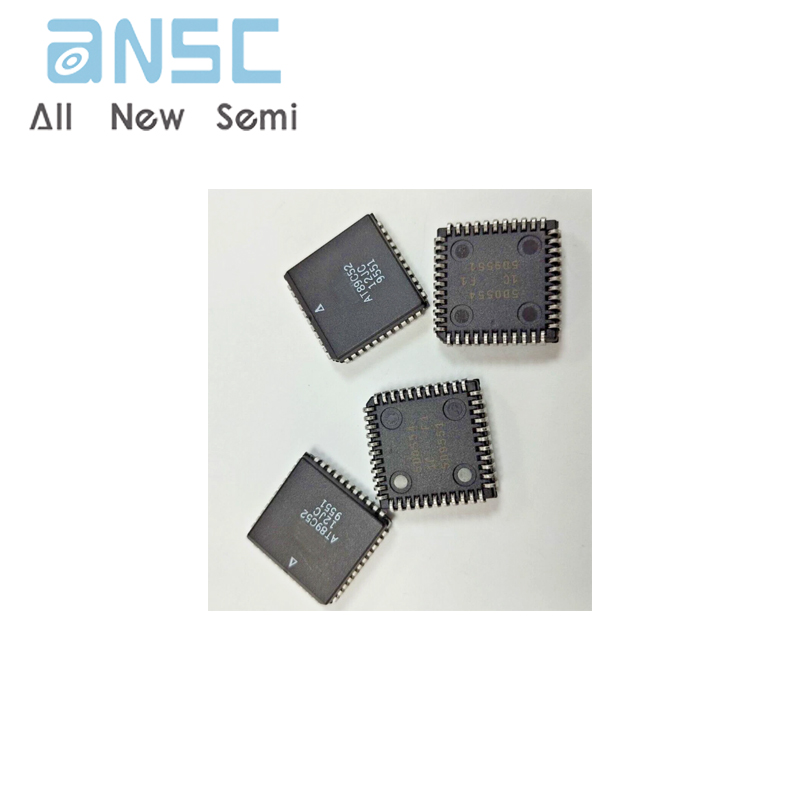

Product Photos

​

For more product information, please download the PDF
