Hot-selling and scarce AT91SAM7S64C-AU ARM-based Flash MCU LQFP64

Product Descriptions

SAM7S is a series of low pincount Flash microcontrollers based on the 32-bit ARM RISC processor. It features a high-speed Flash and an SRAM, a large set of peripherals, including a USB 2.0 device (except for the SAM7S32 and SAM7S16), and a complete set of system functions minimizing the number of external components. The device is an ideal migration path for 8-bit microcontroller users looking for additional performance and extended memory.

The embedded Flash memory can be programmed in-system via the JTAG-ICE interface or via a parallel interface on a production programmer prior to mounting. Built-in lock bits and a security bit protect the firmware from accidental overwrite and preserves its confidentiality.

The SAM7S Series system controller includes a reset controller capable of managing the power-on sequence of the microcontroller and the complete system. Correct device operation can be monitored by a built-in brownout detector and a watchdog running off an integrated RC oscillator.

The SAM7S Series are general-purpose microcontrollers. Their integrated USB Device port makes them ideal devices for peripheral applications requiring connectivity to a PC or cellular phone. Their aggressive price point and high level of integration pushes their scope of use far into the cost-sensitive, high-volume consumer market.

Product Features

• Incorporates the ARM7TDMI® ARM® Thumb® Processor

– High-performance 32-bit RISC Architecture

– High-density 16-bit Instruction Set

– Leader in MIPS/Watt

– EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support

• Internal High-speed Flash

– 512 Kbytes (SAM7S512) Organized in Two Contiguous Banks of 1024 Pages of 256 Bytes (Dual Plane)

– 256 Kbytes (SAM7S256) Organized in 1024 Pages of 256 Bytes (Single Plane)

– 128 Kbytes (SAM7S128) Organized in 512 Pages of 256 Bytes (Single Plane)

– 64 Kbytes (SAM7S64) Organized in 512 Pages of 128 Bytes (Single Plane)

– 32 Kbytes (SAM7S321/32) Organized in 256 Pages of 128 Bytes (Single Plane)

– 16 Kbytes (SAM7S161/16) Organized in 256 Pages of 64 Bytes (Single Plane)

– Single Cycle Access at Up to 30 MHz in Worst Case Conditions

– Prefetch Buffer Optimizing Thumb Instruction Execution at Maximum Speed

– Page Programming Time: 6 ms, Including Page Auto-erase, Full Erase Time: 15 ms

– 10,000 Write Cycles, 10-year Data Retention Capability, Sector Lock Capabilities, Flash Security Bit

– Fast Flash Programming Interface for High Volume Production

• Internal High-speed SRAM, Single-cycle Access at Maximum Speed

– 64 Kbytes (SAM7S512/256)

– 32 Kbytes (SAM7S128)

– 16 Kbytes (SAM7S64)

– 8 Kbytes (SAM7S321/32)

– 4 Kbytes (SAM7S161/16)

• Memory Controller (MC)

– Embedded Flash Controller, Abort Status and Misalignment Detection

• Reset Controller (RSTC)

– Based on Power-on Reset and Low-power Factory-calibrated Brown-out Detector

– Provides External Reset Signal Shaping and Reset Source Status

• Clock Generator (CKGR)

– Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and one PLL

• Power Management Controller (PMC)

– Software Power Optimization Capabilities, Including Slow Clock Mode (Down to 500 Hz) and Idle Mode

– Three Programmable External Clock Signals

• Advanced Interrupt Controller (AIC)

– Individually Maskable, Eight-level Priority, Vectored Interrupt Sources

– Two (SAM7S512/256/128/64/321/161) or One (SAM7S32/16) External Interrupt Source(s) and One Fast Interrupt Source, Spurious Interrupt Protected

Product Specification

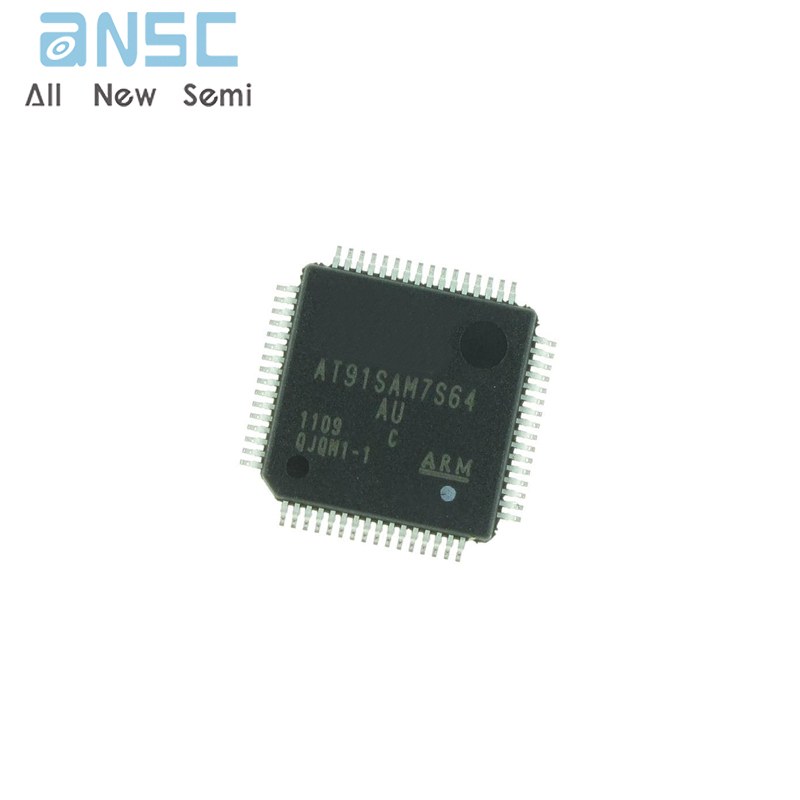

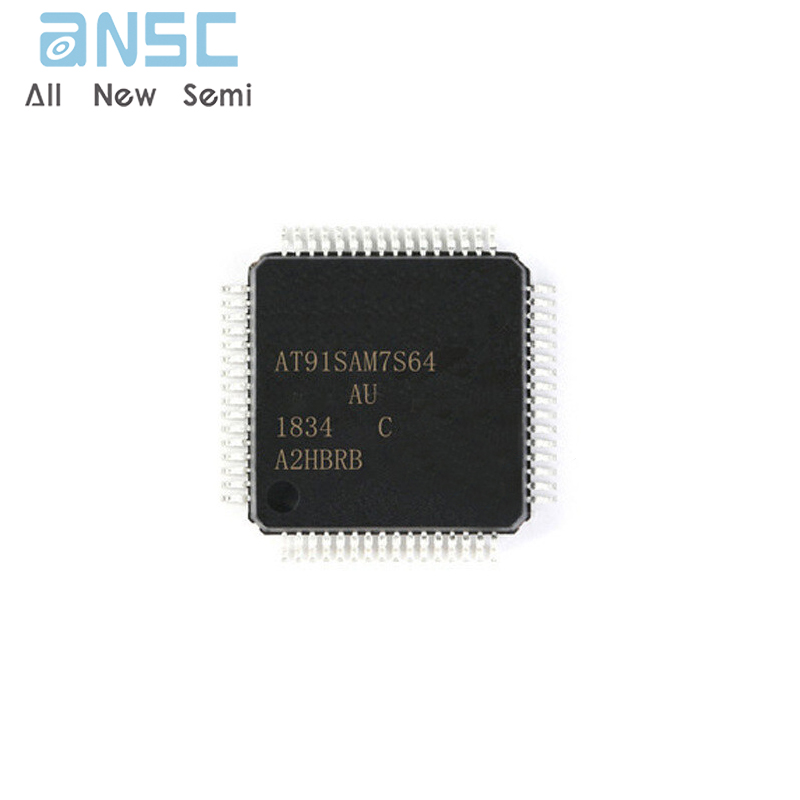

Product Photos

For more product information, please download the PDF
