Hot-selling and scarce PIC16C73A-04/SO 8-Bit CMOS Microcontrollers with A/D Converter SOP28 spot stock

​Product Features

•  High-performance RISC CPU

•  Only 35 single word instructions to learn

•  All single cycle instructions except for program branches which are two cycle

•  Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle

•  Up to 8K x 14 words of Program Memory, up to 368 x 8 bytes of Data Memory (RAM)

•  Interrupt capability

•  Eight level deep hardware stack

•  Direct, indirect, and relative addressing modes

•  Power-on Reset (POR)

•  Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

•  Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

•  Programmable code-protection

•  Power saving SLEEP mode

•  Selectable oscillator options

•  Low-power, high-speed CMOS EPROM technology

•  Fully static design

•  Wide operating voltage range: 2.5V to 6.0V

•  High Sink/Source Current 25/25 mA

•  Commercial, Industrial and Extended temperature ranges

•  Low-power consumption:

• < 2 mA @ 5V, 4 MHz

• 15 µA typical @ 3V, 32 kHz

• < 1 µA typical standby current

Product Specification

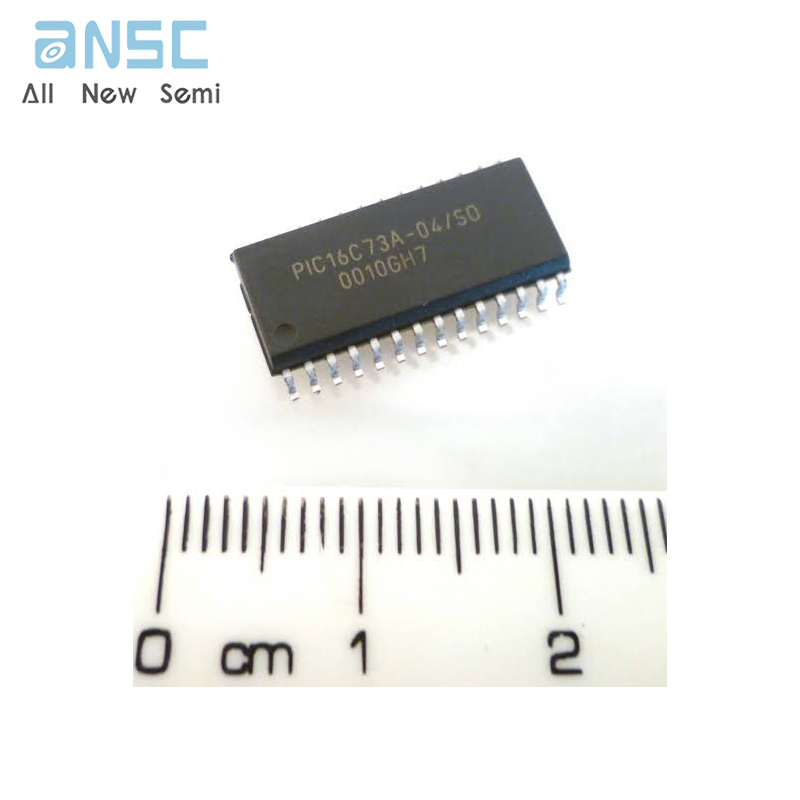

Product Photos

For more product information, please download the PDF
