Hot-selling and scarce STM32F100C4T6B Microcontroller IC 32-Bit 24MHz 16KB FLASH 48-LQFP spot stock

​Product Features

■ Core: ARM 32-bit Cortex™-M3 CPU

–   24 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance

–   Single-cycle multiplication and hardware division

■ Memories

–   16 to 128 Kbytes of Flash memory

–   4 to 8 Kbytes of SRAM

■ Clock, reset and supply management

–   2.0 to 3.6 V application supply and I/Os

–   POR, PDR and programmable voltage detector (PVD)

–   4-to-24 MHz crystal oscillator

–   Internal 8 MHz factory-trimmed RC

–   Internal 40 kHz RC

–   PLL for CPU clock

–   32 kHz oscillator for RTC with calibration

■ Low power

–   Sleep, Stop and Standby modes

–   V BAT supply for RTC and backup registers

■ Debug mode

–   Serial wire debug (SWD) and JTAG interfaces

■ DMA

–   7-channel DMA controller

–   Peripherals supported: timers, ADC, SPIs,I 2 Cs, USARTs and DACs

■ 1 × 12-bit, 1.2 µs A/D converter (up to 16 channels)

–   Conversion range: 0 to 3.6 V

–   Temperature sensor

■ 2 × 12-bit D/A converters

■ Up to 80 fast I/O ports

–   37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant

Product Specification

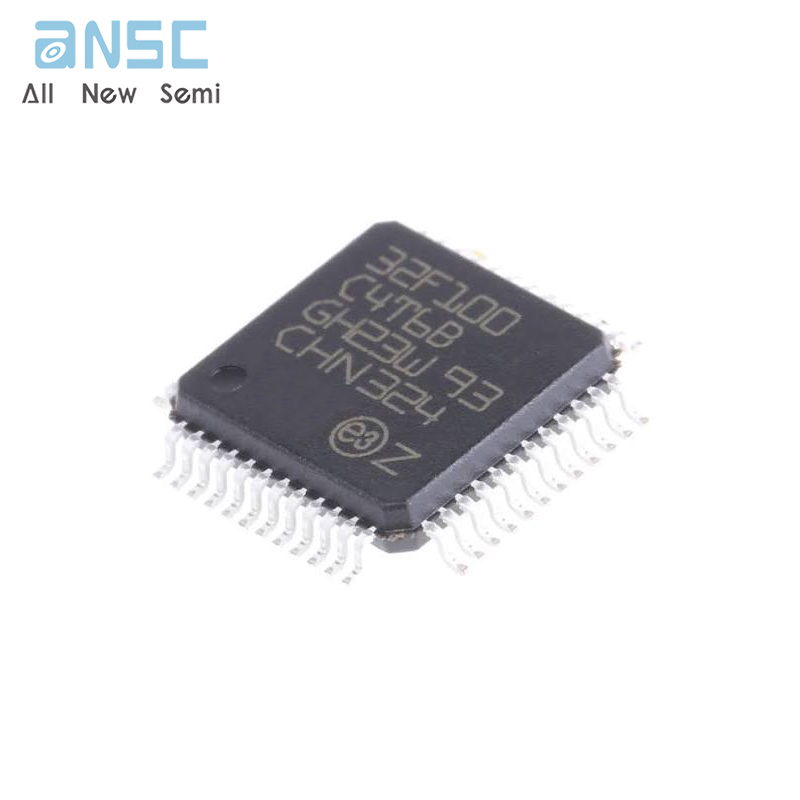

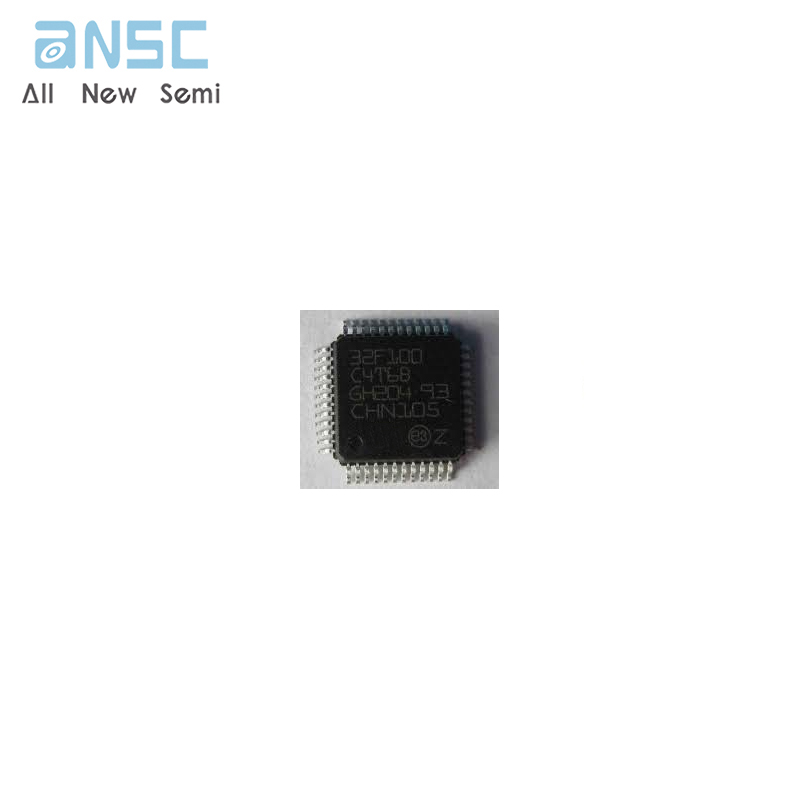

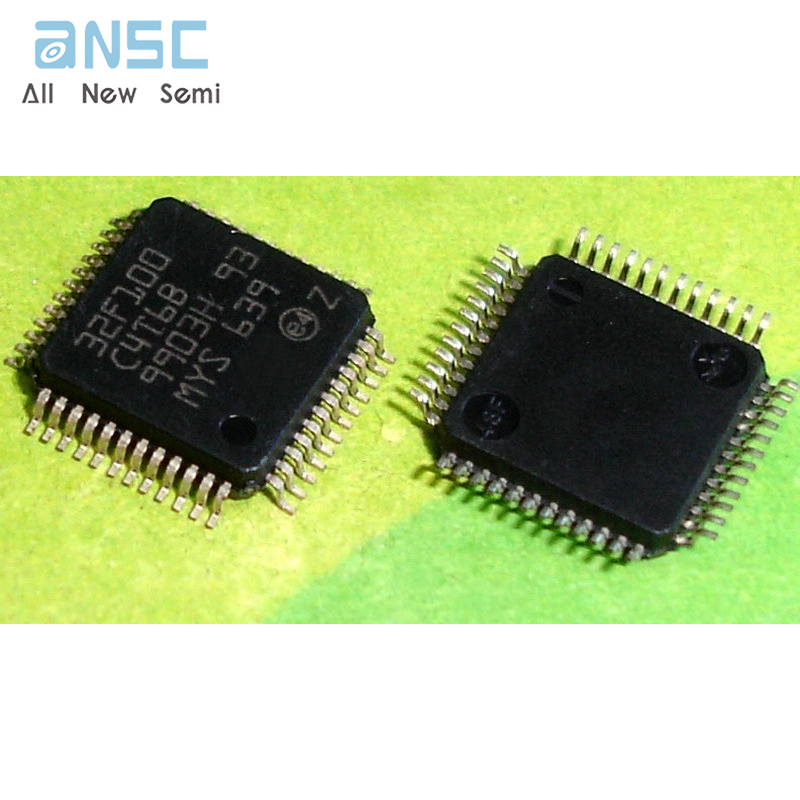

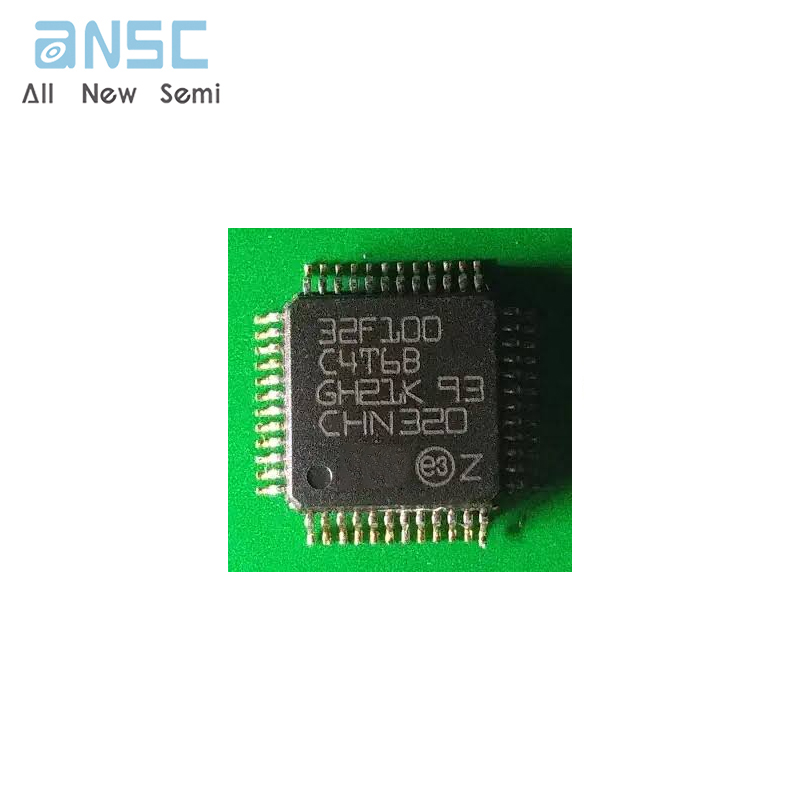

Product Photos

For more product information, please download the PDF
