Hot-selling and scarce UM6502 8-Bit Microprocessors IC DIP40 spot stock

Product Descriptions

The UM6502/UM6507/UM6512 microprocessors are totally software compatible with one another. These products provide a selection of addressable memory range, interrupt input options and on-chip clock oscillators and drivers. The UM6502/UM6507 on-chip clock versions are aimed at high performance, low cost applications where single phase inputs or crystals provide the time base. The UM6512 external clock version is geared for the multiprocessor system applications where maximum timing control is mandatory. These products are bus compatible with the MC6800 product offering.

Product Features

• Single 5V ± 5% power supply

• N channel, silicon gate, depletion load technology

• 56 instructions

• Decimal and binary arithmetic

• Thirteen addressing modes

• True indexing capability

• Programmable stack pointer

• Variable length stack

• Interrupt capability

• Non-maskable interrupt

• Bi-directional data bus

• Addressable memory range of up to 64K bytes

• "Ready" input

• Direct memory access capabilitv

• Bus compatible with MC6800

• Choice of external or on-board clocks

• 1 MHz, 2MHz, 3MHz and 4MHl versions

• On-chip clock options

-External single clock input

-Crystal time base input

• Pipeline architecture

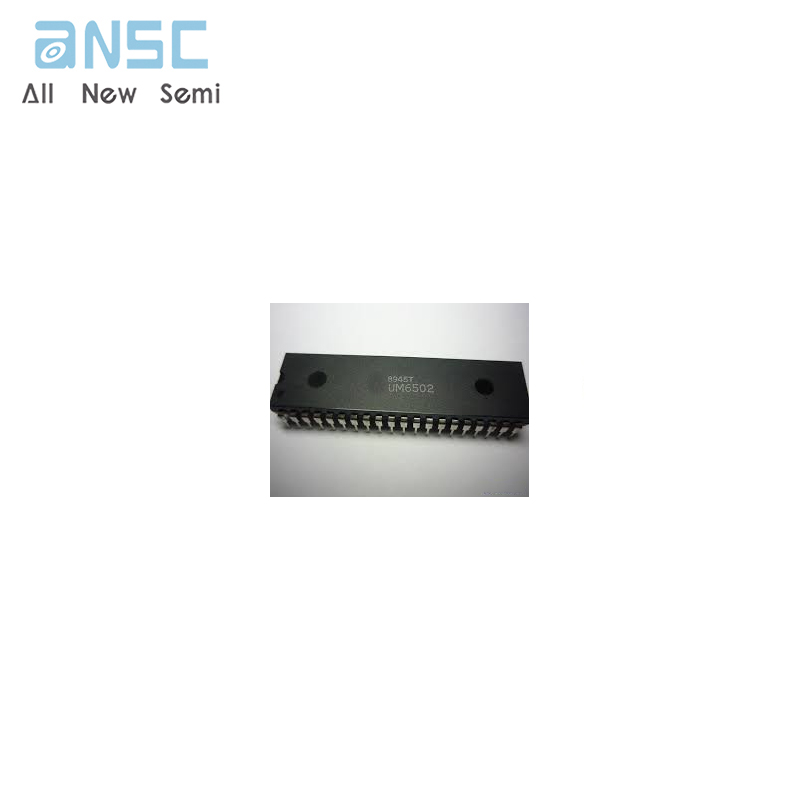

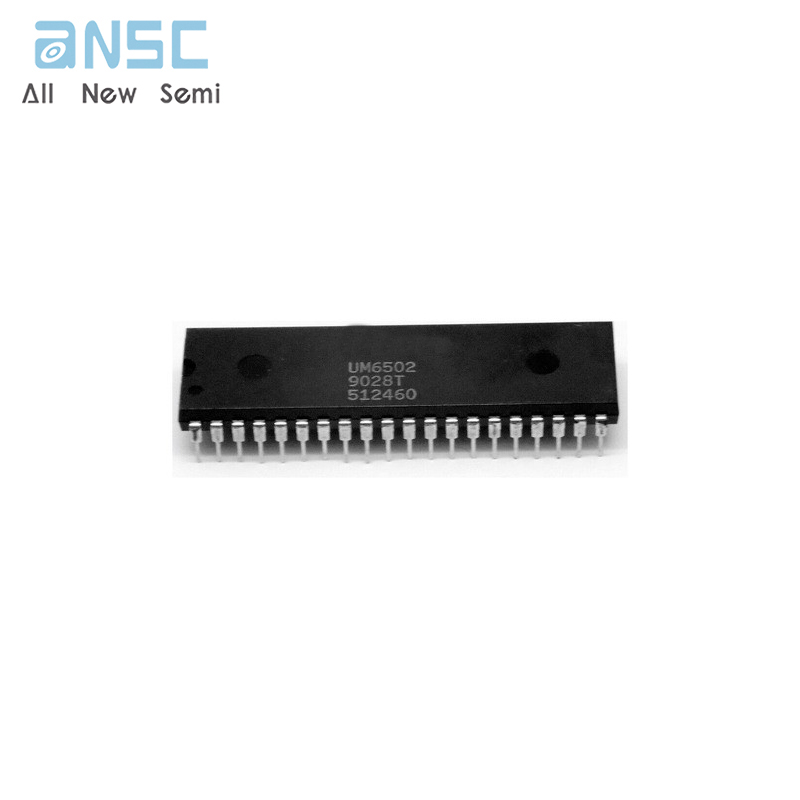

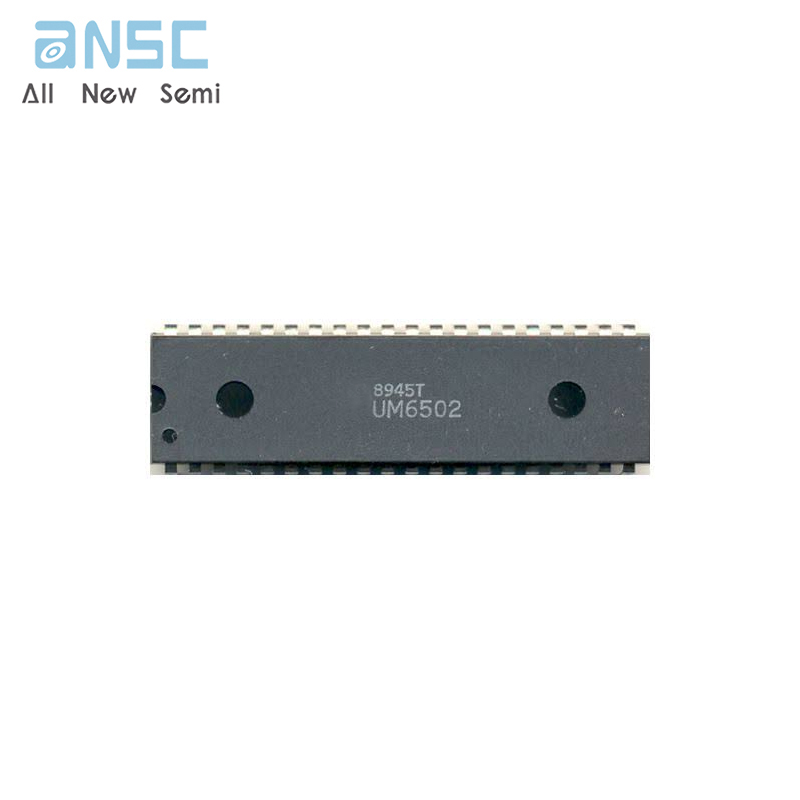

Product Photos

For more product information, please download the PDF
