Product Parameter

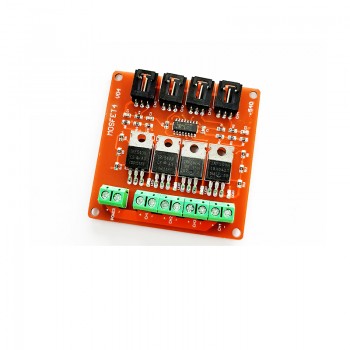

IRF540 isolated power module

Can provide 4-channel switches to control different circuit modules

MOSFET is a type of device with switching characteristics

Application scope: such as power switches, motor drivers, lighting dimmers, etc

Used to control DC circuits below 100V/33A

Suggest controlled DC voltage greater than 9V

Not suitable for AC circuit control

Product Introduction

If there are other LED light strips that need to be controlled, simply connect the positive pole of the LED light strip to the positive pole (+) of the module, and then connect the negative pole of the LED light strip to switch 2 (S2), switch 3 (S3), and switch 4 (S4) in sequence:

The wiring of the control end is much simpler. We only need to connect the corresponding control port to the Arduino sensor expansion board through the sensor connection wire, and then we can control these 12V LED light strips through Arduino. In the experiment, we connected two LED light strips:

*Arduino electronic building block 4-way switch x1
