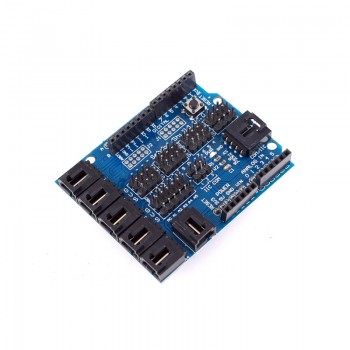

Suitable for electronic building block V4.0 dedicated sensor expansion board V4

Product Introduction

This expansion board can be easily connected to some commonly used analog sensors, such as light sensors. With the support of this expansion board and corresponding circuit modules, we only need to use dedicated connection wires to connect the corresponding sensor modules to Arduino, and the circuit part is completed. Since the specific circuit details are implemented by the corresponding sensor modules, all we need to consider is how to write the corresponding program in Arduino to read the data transmitted by these sensors.

Each functional module has snap on ports with VCC, GND, and Output, and there are corresponding ports on the Sensor Shield that can be connected using a simple 2.54mm dual bus

Product Features

Working voltage: 5VDC.

Input voltage (recommended): 7-12VDC

Input voltage (limit): 6-20VDC.

Buckle analog port: convenient and fixed connection to 6 analog inputs with VCC/GND.

Digital I0 port: 13 ports ready to accept digital modules or servos.

Simulate 10 ports: 2.54 grid male needle connection.

Buckle communication port: selectable between 12C and UART.

Size: 70x58mm
