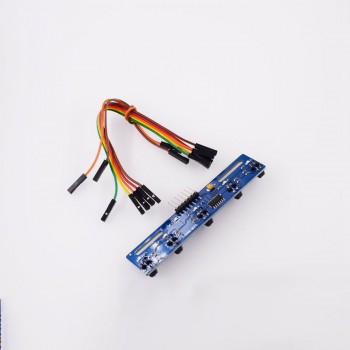

5-way tracking infrared sensor, 5-way tracking sensor, TCRT5000L tracking module

Product Introduction

Based on TCRT5000 infrared reflective photoelectric switch sensor, it is commonly used in the production of tracking intelligent vehicles. The infrared emitting diode of the TCRT5000 sensor continuously emits infrared radiation. When the emitted infrared radiation is reflected by an object, it is received by the infrared receiver and outputs a digital signal. Determine the position of the tracking line by calculating the digital signals output from five channels.

Product parameters

(1) Working voltage: DC3.3V or 5.0V

(2) Output signal: digital signal

(3) Detection distance: 10mm~15mm

(4) Signal status: detect black line output low level, detect white line output high level, output low level beyond detection range

(5) LED status: detect black line LED off, detect white line LED on

Product Pin function

(1)GND: Grounding.

(2)5V: Input positive pole.

(3)OUT1: Signal output port 1.

(4)OUT2: Signal output port 2.

(5)OUT3: Signal output port 3.

(6)OUT4: Signal output port 4.

(7)OUT5: Signal output port 5.

Product Funtion

Product Size
