US-016 Analog voltage output dual range ultrasonic ranging module
Manufacturer
Manufacturer Product Number
US-016
Description
US-016 Analog voltage output dual range ultrasonic ranging module
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
The US-016 ultrasonic ranging module can realize the non-contact ranging function of 2cm~3m. The power supply voltage is 5V, the working current is 3.8mA, it supports analog voltage output, and it works stably and reliably. This module can be set to different ranges according to different application scenarios (the maximum measurement distance is 1m and 3m respectively); when the Range pin is left floating, the range is 3m.
US-016 can convert the measured distance into analog voltage output, and the output voltage value is proportional to the measured distance.
Main technical parameters
| Electrical parameters | US-016 Ultrasonic Distance Measurement Module |
| Working voltage | DC 5V |
| Working current | 3.8mA |
| Working temperature | 0~+70 degrees |
| Output mode | Analog voltage (0~Vcc) |
| Sensing angle | Less than 15 degrees |
| Detection distance | 2cm-300cm |
| Detection accuracy | 0.3cm+100 |
| Resolution | 1mm |

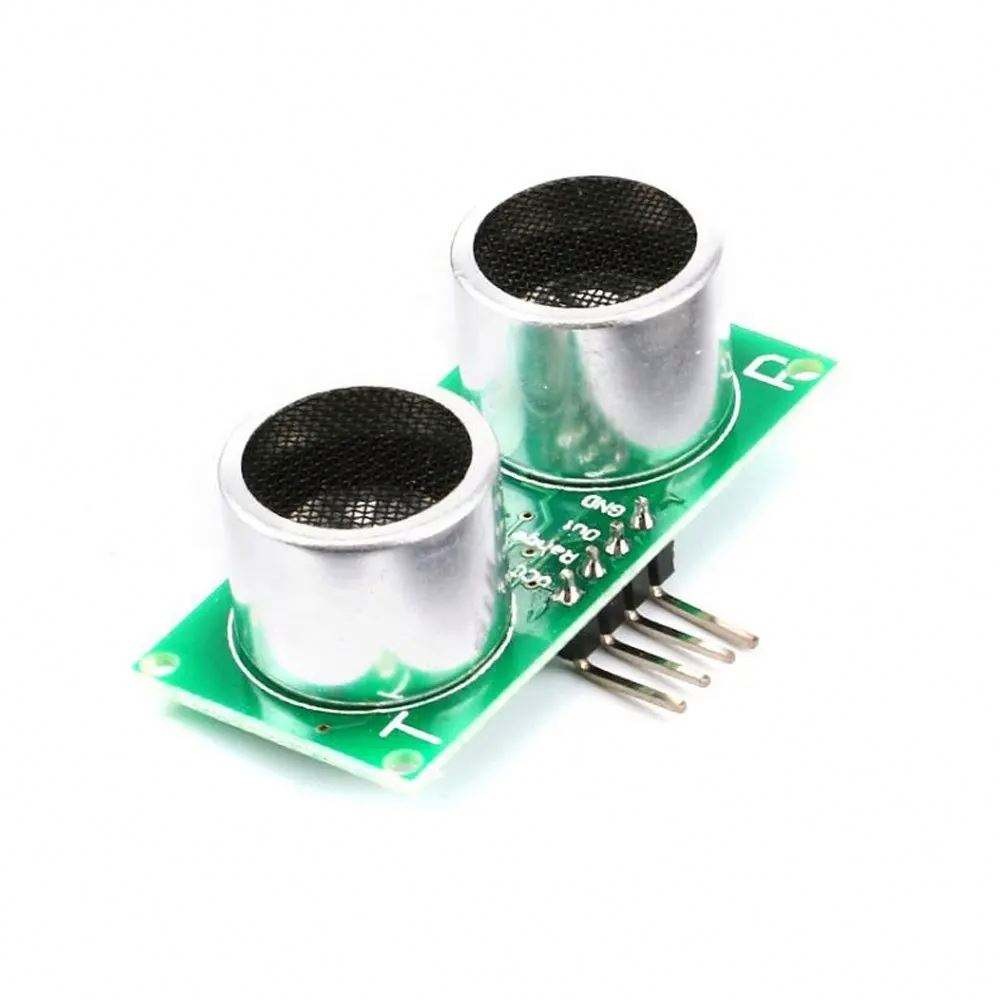

Actual image of the product
