AS5047P encoder pulse width modulation magnetic encoder adapter board module

Product Introduction

AS5047P is a high-resolution rotary position sensor that can quickly measure absolute angles within a 360-degree range. The module can be placed behind the motor. It only needs to add a radial magnet to the rear axle for angle reading. It supports SPI, ABI, UVW, and PWM. It is suitable for challenging industrial applications such as industrial automation, building automation, robotics, PMSM (permanent magnet synchronous motor) and stepper motor closed-loop regulation, as well as BLDC motor commutation for optical encoder replacement.

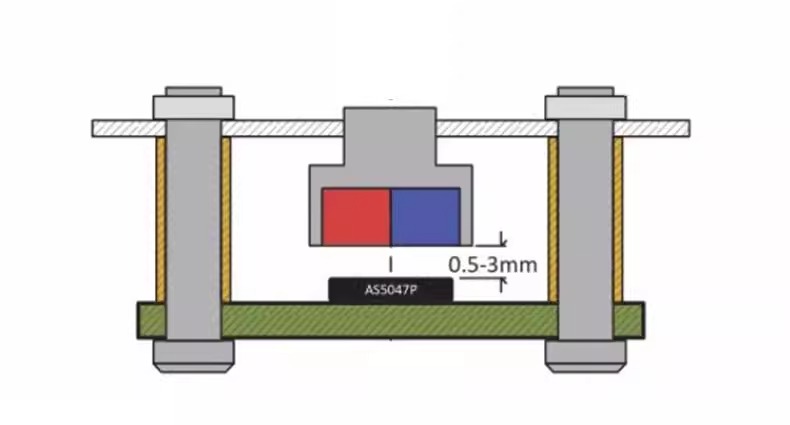

AS5047P module, default operating voltage 5V. It is small in size, only 28mmX22mm, with mounting holes.

Note: This module does not come with a 6x2.5 radial magnet, which needs to be purchased by yourself.

Product parameter characteristics

●Product name: AS5047P magnetic encoder module

●Operating voltage: 3.3V/5V [default is 5V]

●Resolution: 14 bits or 12 bits

●High-speed angle measurement over the entire 360-degree range, up to 28krpm.

●With DAEC dynamic angle error compensation, it can suppress the influence of any uniform external stray magnetic field.

●Supports multiple independent output interfaces: SPI, ABI, UVW, PWM.

●ABI programmable decimal and binary pulse counts: 1000, 500, 400, 300, 200,

100, 50, 25, 1024, 512, 256ppr.

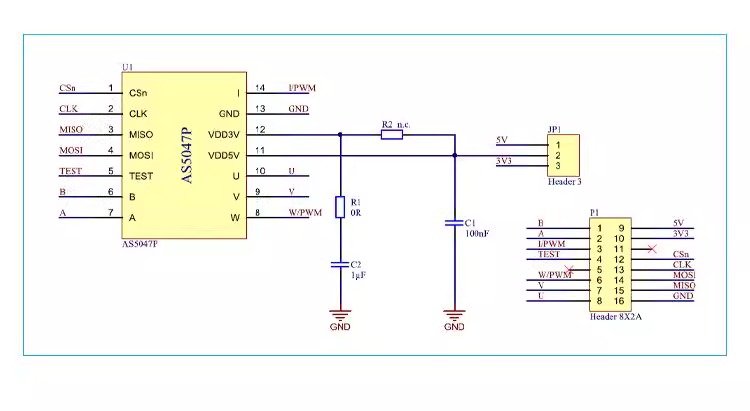

●Module interface: double row 2.54mm pitch solder hole

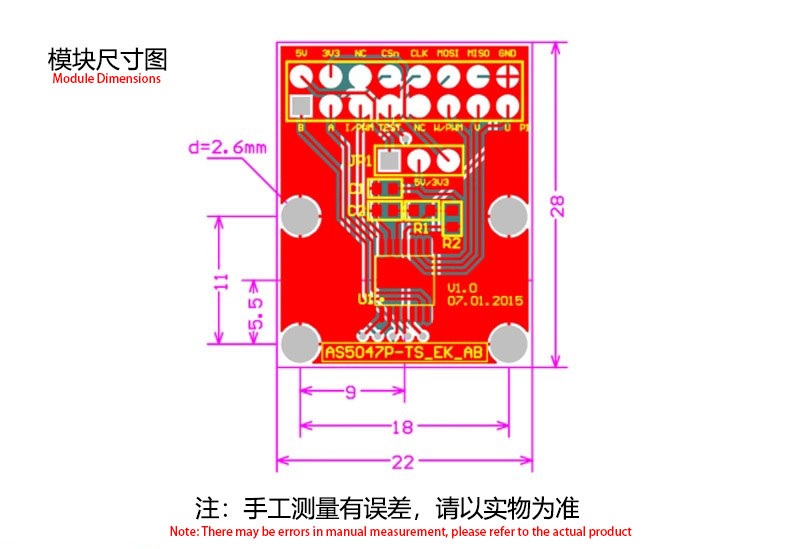

●Size: 28mm*22mm (length*width)

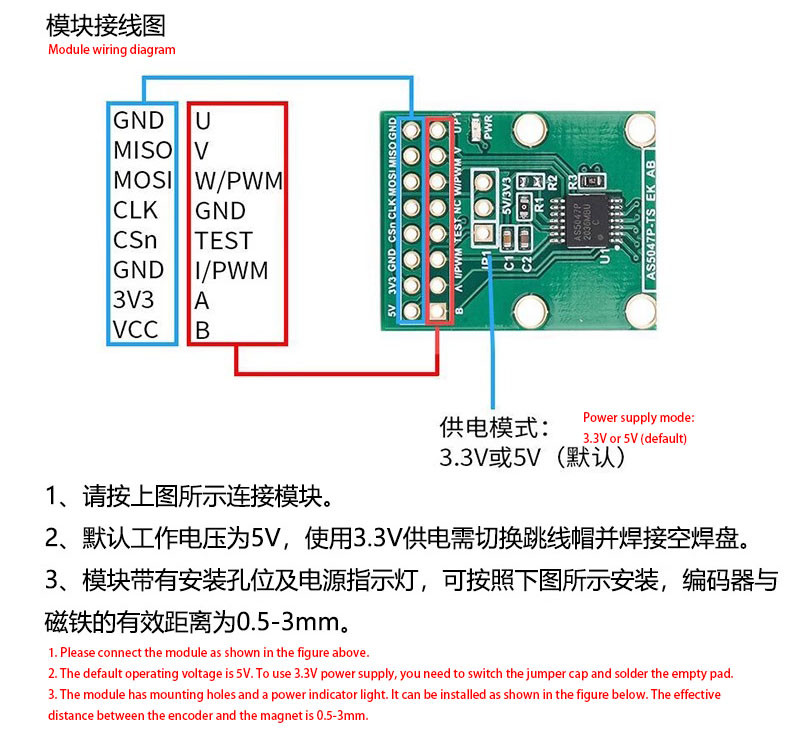

Product Instructions

​Precautions

1. Please check the positive and negative poles of the power supply and the voltage value. Wrong connection will cause permanent damage to the module.

2. This module does not provide information or technical support. Those who purchase the module must have the ability to consult chip documents and self-study.

3. After receiving the module, please test the function first before tinning and soldering. After tinning, it will affect the secondary sales, so it does not support returns and exchanges. Payment means that you agree to this clause by default.

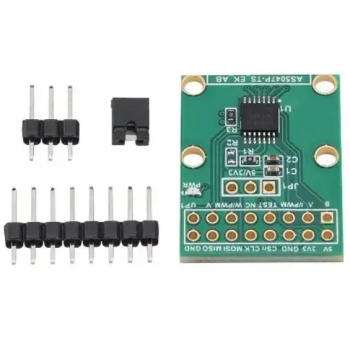

 Actual image of the product
