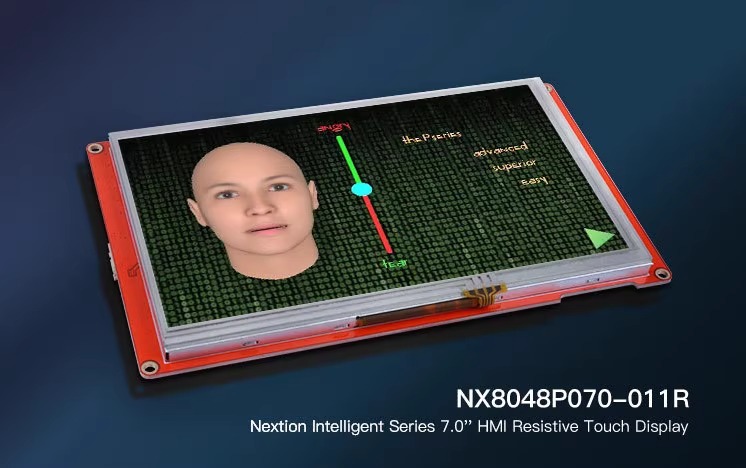

NX8048P070-011R 7-inch resistive touch screen p series display
Manufacturer
Manufacturer Product Number
NX8048P070-011R
Description
NX8048P070-011R 7-inch resistive touch screen p series display
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Hardware Features
- NX8048P070-011C (7.0-inch IPS RGB 65K Resistive Touchscreen),
NX8048P070-011R (7.0-inch IPS RGB 65K Resistive Touchscreen)
- Onboard 200MHz MCU, up to 128MB RAM, for HMI projects
- Built-in RTC, EEPROM, 8 digital GPIOs (supports 2 PWMs)
- 4-pin (+5V, TX, RX, GND) TTL serial interface
- 300 nits brightness, adjustable in 1% increments
- Audio interface
- CE and RoHS compliant
- Model: NX8048P070-011R (HMI Resistive Touchscreen Display)
Compatible with Raspberry Pi A+, B+, Raspberry Pi 2, and Arduino
800 x 480 resolution
information

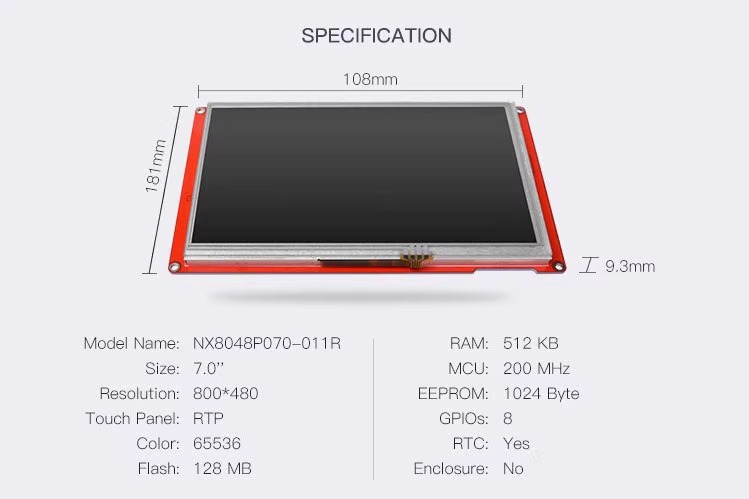

| Stop | No |
| Display resolution | 800 x 480 |
| Display interface | TTL serial |
| Screen type | Touchscreen |
| Display controller | Yes |
| TFT display interface | Not applicable |
| Display size | 7.0" |
| PCB size | 181 mm x 108 mm |
| Expanded | SD card slot |
| Weight | 350 g |
Product Description
| Type | Description |
| Model | NX8048P070-011R |
| Digital LCD Module Type | Timing Module |
| Touch Screen Type | Resistors |
| Type | Color |
| Response Time | 1ms |
| Viewing Angle | TN+ Thin Film |
| Display Technology | Cloud Chess |
| Dot Matrix Graphic LCD Module Type | Row/Column Driver |
| LCD Drive Mode | Static Driver LCD Module |
| Specifications | Dimensions: 16.3*10.6*4cm |
