RCWL-1605 Transceiver integrated open ultrasonic ranging module GPIO serial port IIC single bus
Manufacturer
Manufacturer Product Number
RCWL-1605
Description
RCWL-1605 Transceiver integrated open ultrasonic ranging module GPIO serial port IIC single bus
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
RCWL-1605 is a transceiver integrated ultrasonic ranging module designed with our self-developed chip RCWL-9623.
Under default conditions, the software is fully compatible with our old version HC-SR04; it can be set to UART, IIC or single bus mode through resistors. 25CM blind area, 4.5M typical maximum distance measurement, 2mA ultra-low operating current. The self-developed chip RCWL-9625 is used to make its periphery more concise, the operating voltage is wider (2.8-5.5V), and the interface functions are more.
Product Features
Uses professional chip RCWL-9623
Working voltage: 2.8-5V
Working current: 2mA
Supports GPI0, UART, IIC and 1-WIRE output modes, the default output mode is compatible with HC-SR04
50mS cycle
The data is completely open source and customers can download it by themselves
Product Applications
Toys, robot obstacle avoidance
Liquid level, water level measurement
Other distance measurement applications

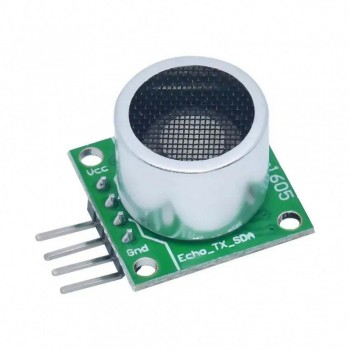

Actual image of the product
