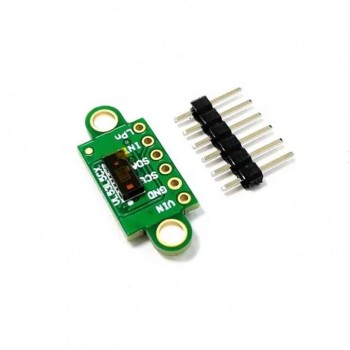

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
VL53L5X V2 TOF wide-field time-of-flight multi-area laser ranging sensor module
Manufacturer
Manufacturer Product Number
VL53L5X
Description
VL53L5X V2 TOF wide-field time-of-flight multi-area laser ranging sensor module
Package Condition
Original
Product Introduction
| The VL53L5CX is an advanced time-of-flight (ToF) multi-zone ranging sensor |
| The VL53L5CX uses the latest generation of direct ToF technology to perform absolute distance measurements regardless of target color and reflectivity. It provides accurate ranging up to 400cm and can operate at high speed (60Hz), making it the fastest multi-zone micro ToF sensor on the market. |
| Multi-zone distance measurement is up to 8x8 zones, with a wide 63° diagonal field of view, which can be reduced by software. Using a histogram algorithm, the VL53L5CX is able to detect different objects within the field of view. The histogram algorithm also suppresses cover glass crosstalk beyond 60cm. |
| Compared with the previous three products, VL53L5 has achieved several breakthroughs: first, the angle is large, extending to 61 degrees; second, it can be cut to 16 areas. The details are as follows: |
| 1. Large angle: The field of view of ToF products is generally controlled at about 25-27 degrees. It is also combined with the transmission power, receiving capacity and the effective range that the algorithm can bear, and the effective distance of FOV (field of view) of about 25-27 degrees is coordinated. Through the improvement of software and hardware, the current angle can reach 60 degrees. 60 degrees has two advantages: on the one hand, it covers a wider range, which is particularly suitable for slightly larger products, such as large appliances, large screens, etc.; on the other hand, this large angle can also be programmed. If such a large angle is not needed, customers can program to obtain the required angle. The current maximum is 60 degrees, and there are many programming methods for customer applications. |
| 2 is to achieve multi-zone: it can be cut to 16 zones or more. After cutting, VL53L5 is divided into four blocks, that is, four quadrants. Each quadrant can be cut again to reach 16 zones or more. Taking 16 effective zones as an example, each zone can independently output its range, which represents the initial depth change. The key to multi-depth must be to give numbers at the same time, and all numbers come out at the same time to achieve multi-zone. The 16 numbers are different, and through the changes of these 16 numbers, the movement of gestures can be achieved. In the past, everyone was more troubled by stable gesture recognition. How to recognize gestures, in fact, this matter will be realized naturally on the road to 3D. |
| The functions of VL53L5CX mainly include: ranging, presence detection, proximity detection, ambient light detection, reflectivity detection, multi-area detection and 3D detection. |
| Relying on the above functions, VL53L5CX has a wide range of applications. |
| Mainly including: mobile phones, computers, home robots, smart appliances, smart door locks, access control, transportation, shelves, vending machines, smart buildings, smart agriculture,smart medical care, etc. |
Product Parameters
1. Working voltage: 3~5V
2. Communication mode: IIC
3. Absolute distance measurement: 0-4 meters
4. Xshutdown (reset)/GPIO (interrupt)
5. Size: 25MM*10.5MM

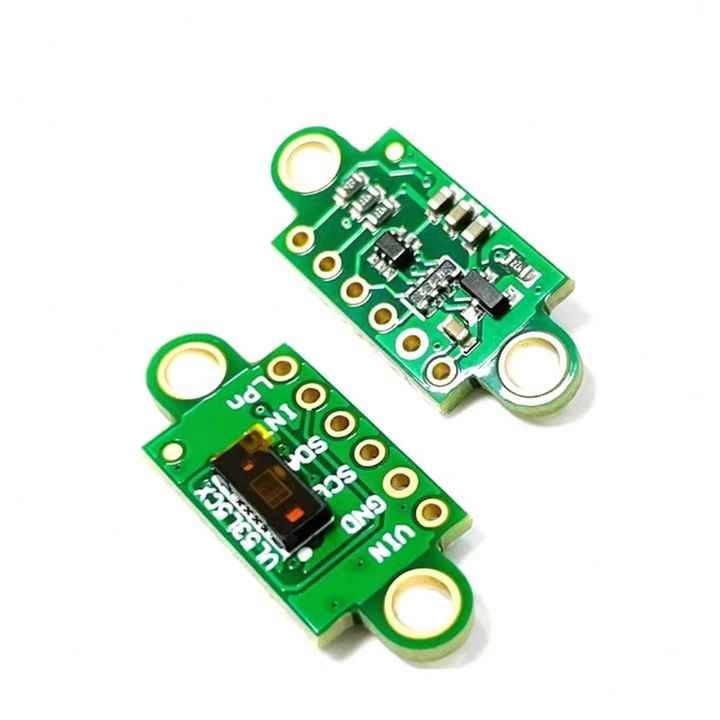

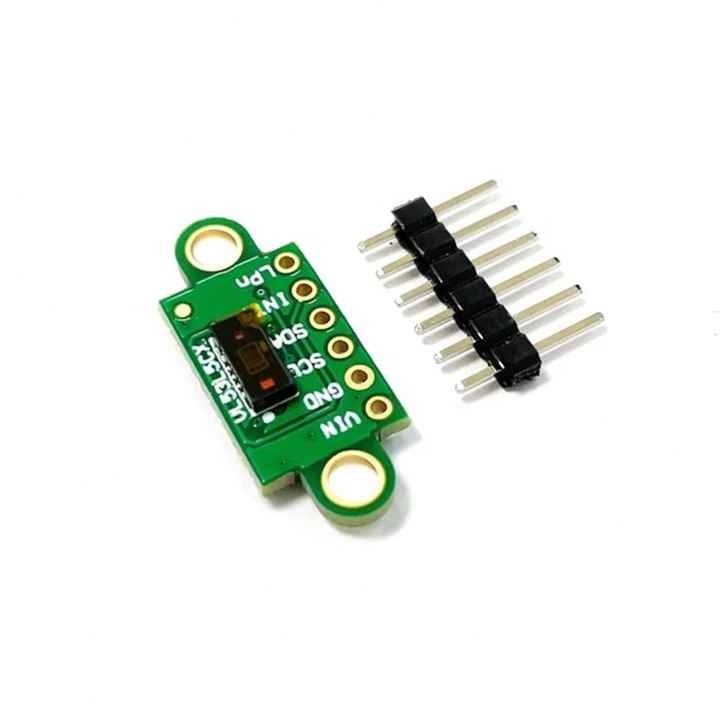

Actual image of the product
