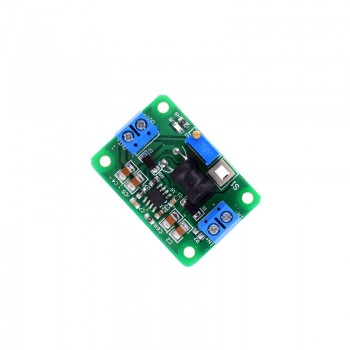

Efficiency reaches 98% with the LM2596 DC-DC adjustable voltage reduction module (Kis-3r33 retrofit)
Manufacturer
Manufacturer Product Number
HW-162
Description
Efficiency reaches 98% with the LM2596 DC-DC adjustable voltage reduction module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Parameter
Input voltage range: 4.75-24V
Output voltage range: 0.93V-18V (step-down working mode, input less than output 2V or more)
Output current: Continuous 2.5A output peak 4A output!
Switch: with soft shutdown function! The current drops to microampere level after shutdown!
Size: 45mm * 32mm * 1.6mm
Item number: YS-TB
Technical Introduction:
Use synchronous rectification technology! Efficiency reaches 98%!
Efficiency measurement: 12V to 5V:
12V to 5V efficiency=(5V * 1.001A)/(12V * 0.431)=96.7%
Product Funtions
Product Size
Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
