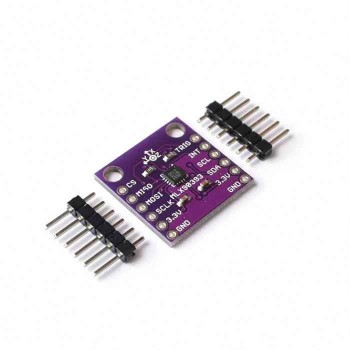

90393 MLX90393 Digital 3D Hall Sensor Displacement Angle rotates 3D position
Manufacturer
Manufacturer Product Number
MLX90393
Description
90393 MLX90393 Digital 3D Hall Sensor Displacement Angle rotates 3D position
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Product Introduction The MLX90393, based on Melexis' proprietary Triaxis technology, offers a limitless solution for all forms of human-machine interface (HMI) design. Applications range from joysticks, slide switches, push/pull switches, levelers, linear slide switches, and knobs to complex 3D position sensing systems. The MLX90393 is a digital-output 3D Hall effect chip that can read the magnetic field in the X, Y, and Z axes using either SPI or I2C. It acquires precise measurement data and temperature-compensated data T. It supports multiple operating modes, including single-shot measurement, continuous sensing, and wake-up/sleep measurement, adapting to diverse application scenarios. |
| Features ● Operating voltage: 3.3V ● Output data: X, Y, and Z axis position output and temperature data T ● 16-bit AD, low power consumption ● Compact module with mounting holes ● Communication: I2C and SPI with programmable address ● TRIG and INT pins ● Pull-up resistor, communication address, and CS enable jumper pads ● Output interface: 2.54mm pitch solder holes ● Dimensions: 20.4mm x 20.4mm (L x W) |
Product Photos
