Microwave sensing module Radar human sensing switch HW-MS03

Product Description

Working principle:

The HW-MS series microwave sensing module uses a planar antenna to transmit and receive high-frequency electromagnetic waves based on the Doppler principle, and then detects a slight movement change in the reflected wave, which triggers the microprocessor to work, and finally outputs a useful control signal (H-1/L-0) or control status (on/off, i.e., on/off). This product is widely used in security monitoring; intelligent control systems; lighting appliances (for use in garages, corridors, roads, etc.).

The HW-MS series is a single-board microwave sensing module newly developed by our company. This product is particularly suitable for ultra-thin intelligent home appliances, security products, lighting products and other electronic fields.

Product Features

1. Not affected by temperature, humidity, airflow, dust, noise, brightness, etc., with strong anti-interference ability;

2. The microwave module is a field-shaped signal transmitter and receiver, with wide coverage and no blind spots;

3. The microwave induction effect is relatively good during transmission: when used indoors, the effect is better; when used outdoors, the induction distance is slightly shortened or the sensitivity is slightly weaker due to the influence of the environment. This is a normal phenomenon and users do not need to worry.

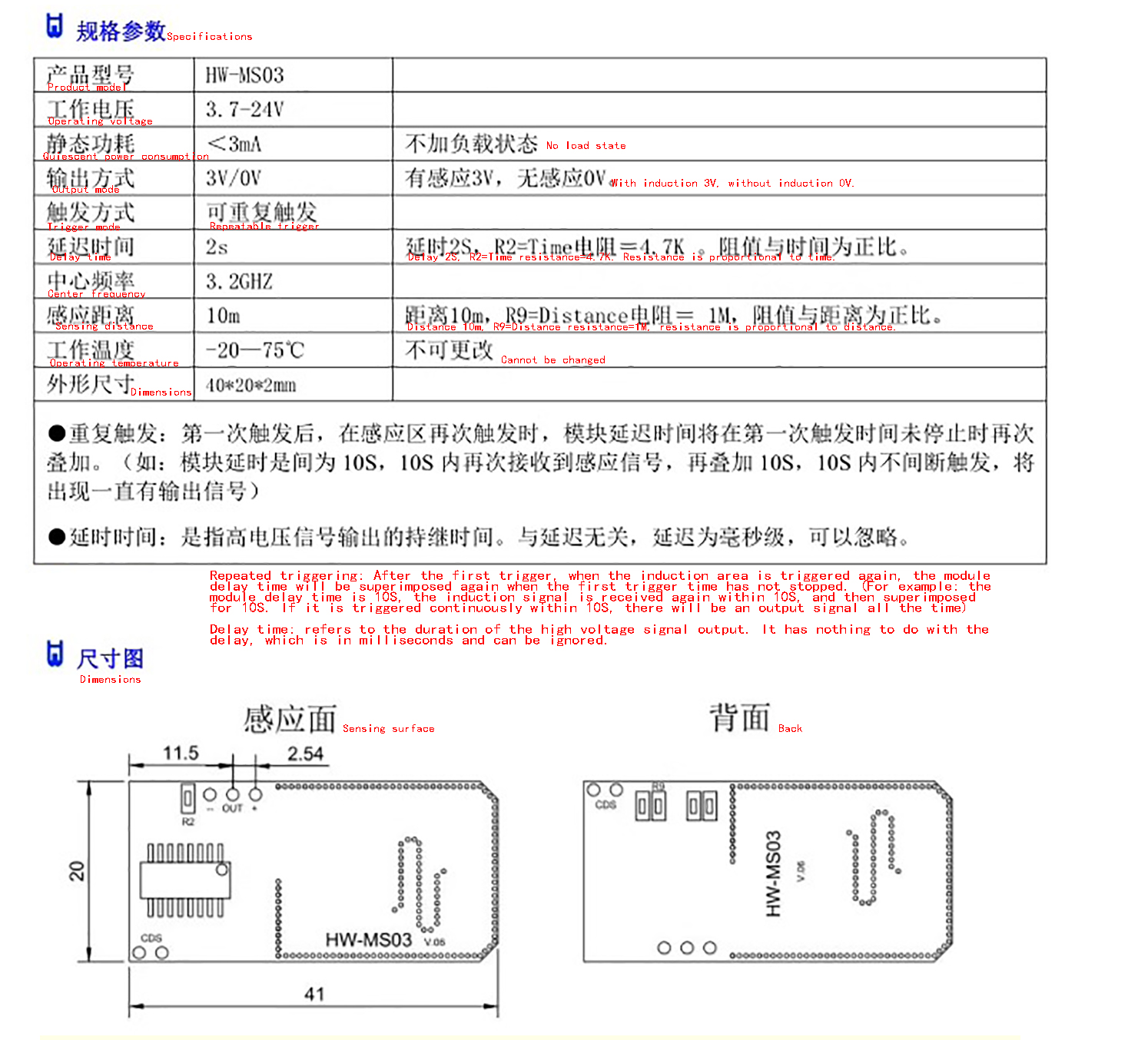

Product Parameters

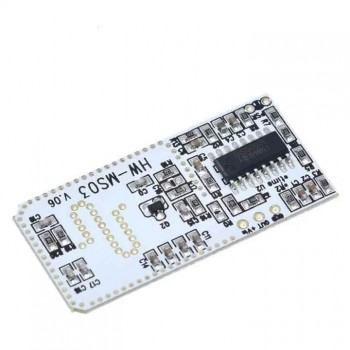

 Actual image of the product
