GY-511 LSM303DLHC three-axis electronic compass acceleration high precision sensor module
Manufacturer
Manufacturer Product Number
LSM303DLHC
Description
GY-511 LSM303DLHC three-axis electronic compass acceleration high precision sensor module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
The LSM303DLHC is a system that includes a 3D digital linear accelerometer and a 3D digital magnetic sensor. The full scale of linear acceleration is ±2g/±4g/±8g, and the full scale of magnetic field is ±16 Gauss. It includes an I2C serial bus interface that supports standard and fast modes (100kHz and 400kHz). The system can be configured to generate interrupt signals for free fall, motion detection, and magnetic field detection. The magnetic block and accelerometer block can be enabled or put in power-down mode separately. The LSM303DLHC uses a plastic ground grid array assembly (LGA) and is guaranteed to operate over an extended temperature range of -40℃ to +85℃.
Product Parameters
| Product name: LSM303DLHC module (three-axis magnetic field + three-axis acceleration) |
|
Model: GY-511 Chip used: LSM303DLHC Power supply: 3-5V DC Communication method: standard IIC communication protocol Magnetic field range: ±1.3/±1.9 /±2.5/±4.0/±4.7 /±5.6/±8.1 Gauss Acceleration range: ±2 g/±4 g/±8 g AD conversion: chip built-in 12-bit AD converter, 16-bit data output Pin spacing: 2.54mm Size: 20.5x14.5mm Operating temperature: -40°C~+85°C |

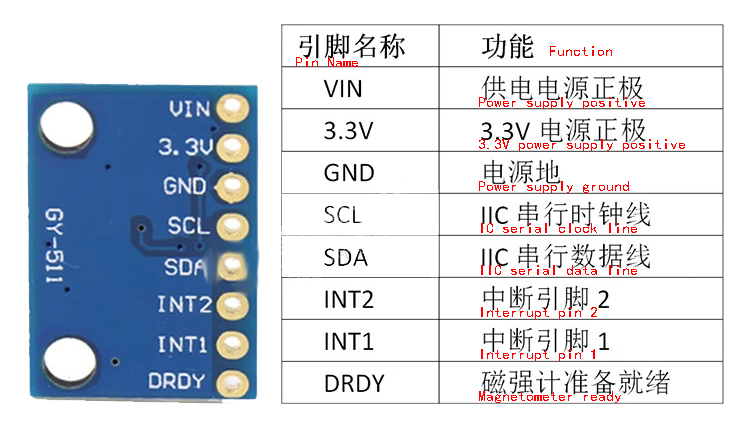

Pin Description

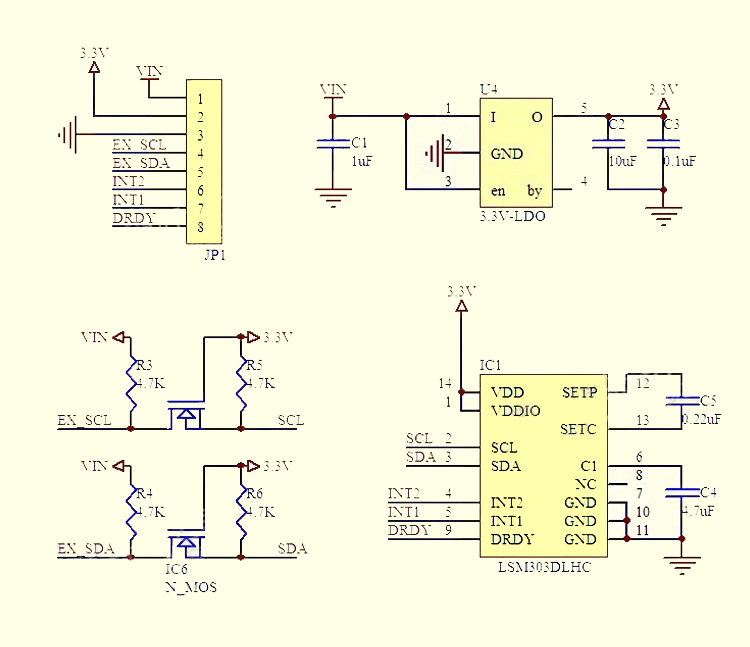

Product reference schematic

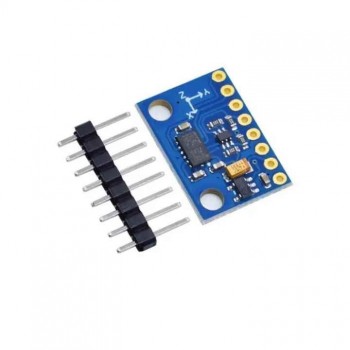

Actual image of the product
